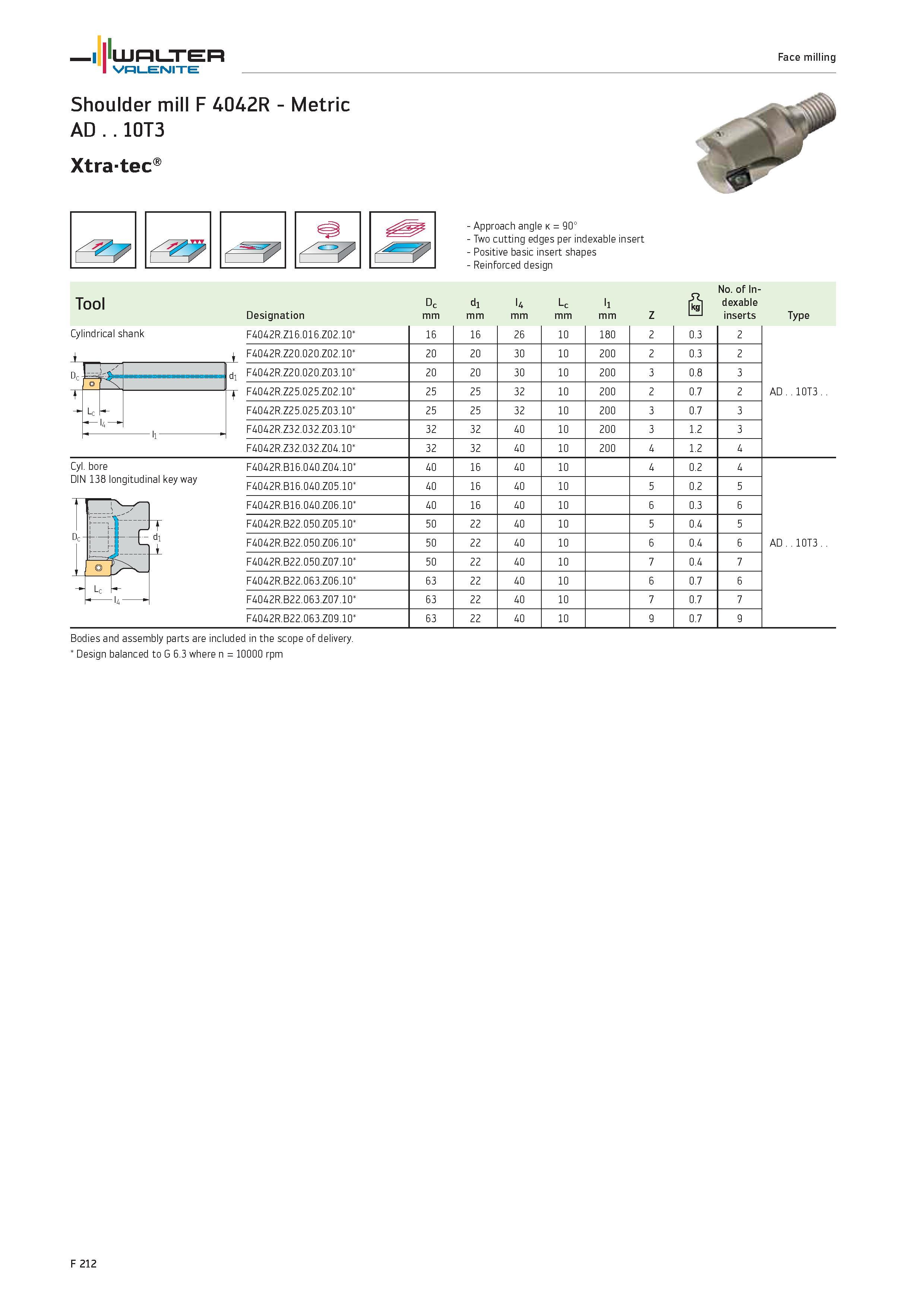

WALTER Valenite Face milling Shoulder mill F 4042R Metric AD 10T3 Xtratec "7 Approach angle k 90° Two cutting edges per indexable insert Positive basic insert shapes Reinforced design No. of In- Tool Dc di U Lc li kg dexable Designation mm Z inserts Type Cylindrical shank T F4042R.Z16.016.Z02.10 16 16 26 10 180 2 0.3 2 AD .10T3.. F4042R.Z20.020.Z02.10 20 20 30 10 200 2 0.3 2 F4042R.Z20.020.Z03.10 20 20 30 10 200 3 0.8 3 F4042R.Z25.025.Z02.10 25 25 32 10 200 2 0.7 2 F4042R.Z25.025.Z03.10 25 25 32 10 200 3 0.7 3 F4042R.Z32.032.Z03.10 32 32 40 10 200 3 1.2 3 F4042R.Z32.032.Z04.10 32 32 40 10 200 4 1.2 4 F4042R.B16.040.Z04.10 40 16 40 10 4 0.2 4 AD .10T3.. F4042R.B16.040.Z05.10 40 16 40 10 5 0.2 5 F4042R.B16.040.Z06.10 40 16 40 10 6 0.3 6 F4042R.B22.050.Z05.10 50 22 40 10 5 0.4 5 F4042R.B22.050.Z06.10 50 22 40 10 6 0.4 6 F4042R.B22.050.Z07.10 50 22 40 10 7 0.4 7 F4042R.B22.063.Z06.10 63 22 40 10 6 0.7 6 F4042R.B22.063.Z07.10 63 22 40 10 7 0.7 7 F4042R.B22.063.Z09.10 63 22 40 10 9 0.7 9 Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. Design balanced to G 6.3 where n 10000 rpm D L F 212
