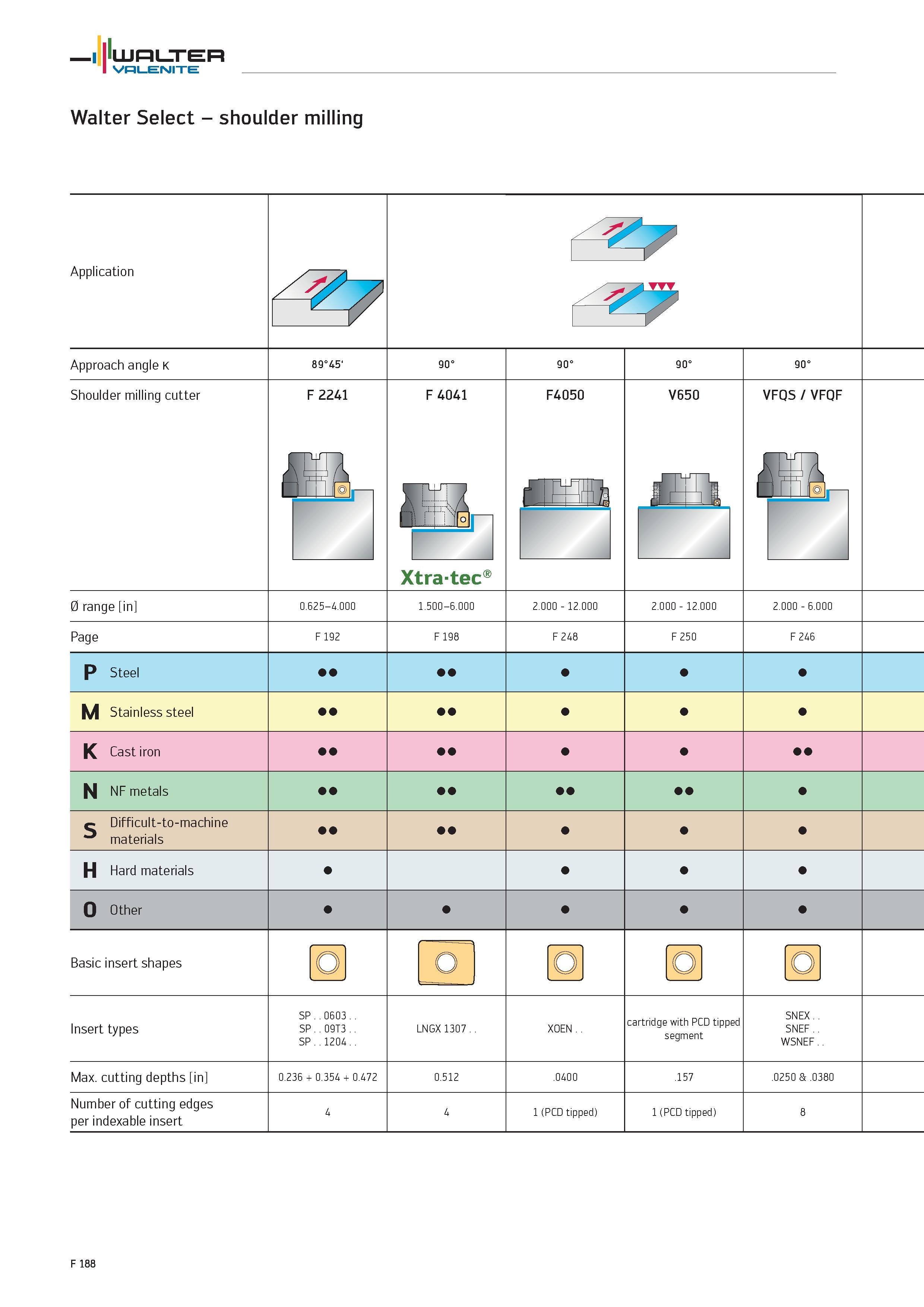

WALTER Valenite Walter Select shoulder milling Application Approach angle K 89°45' 90° 90° 90° 90° Shoulder milling cutter F 2241 F 4041 F4050 V650 in MM Xtra-tec VFQS / VFQF 0 range in 0.625-4.000 1.500-6.000 2.000 12.000 2.000 12.000 2.000 6.000 Page F 192 F 198 F 248 F 250 F 246 P Steel M Stainless steel K Cast i N NF metals S Difficult-to-machine materials H Hard materials O Other Basic insert shapes Insert types SP .0603. SP..09T3. SP..1204. LNGX 1307. XOEN cartridge with PCD tipped segment SNEX SNEF WSNEF Max. cutting depths in 0.236 + 0.354 + 0.472 0.512 .0400 .157 .0250 .0380 Number of cutting edges per indexable insert 1 (PCD tipped) 1 (PCD tipped) 4 4 8 F 188
