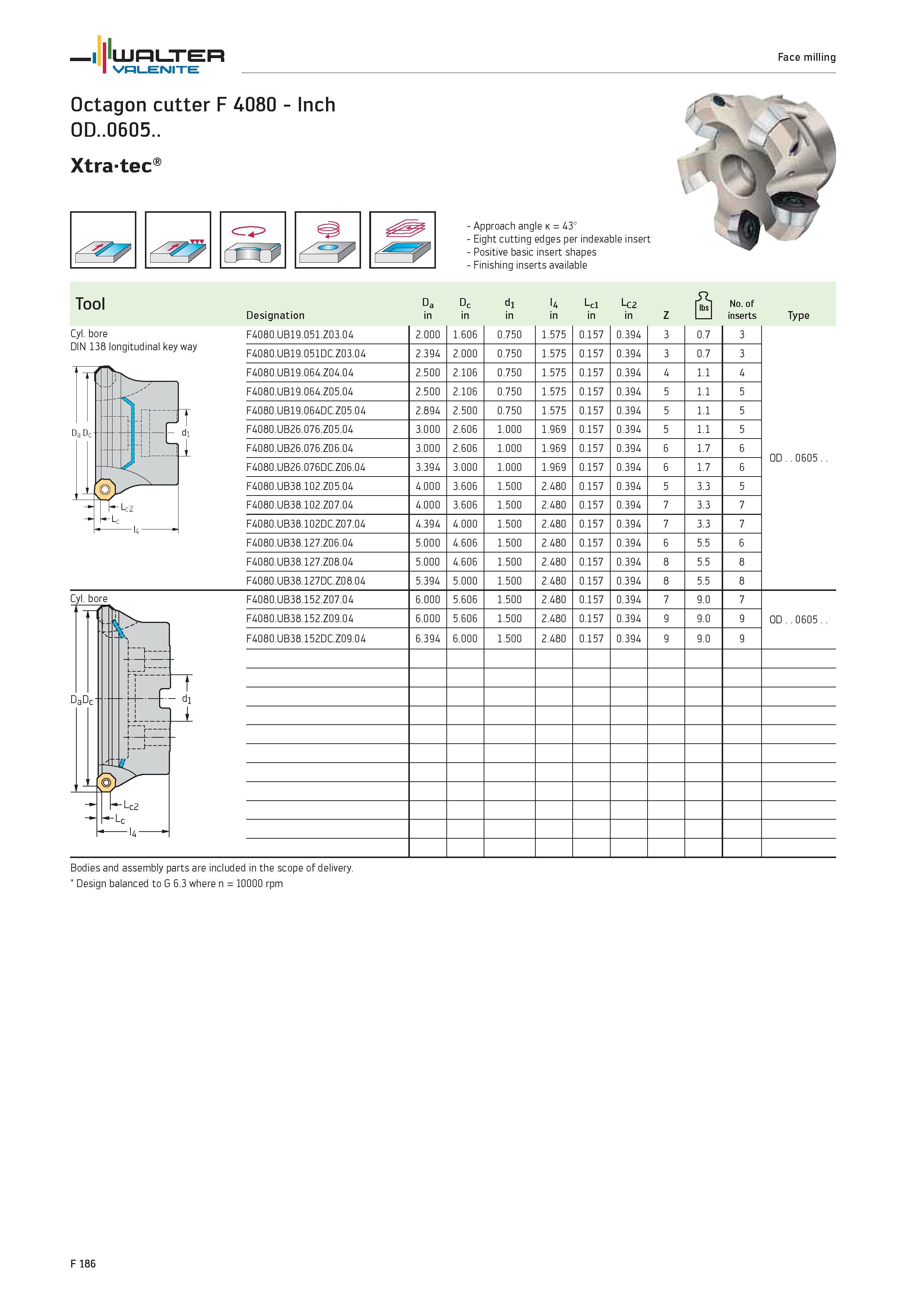

WALTER Valenite Face milling Octagon cutter F 4080 Inch OD..0605.. Xtratec Approach angle k 43° Eight cutting edges per indexable insert Positive basic insert shapes Finishing inserts available Tool Da Dc d1 l4 Lc1 LC2 S No. of Designation in z L J inserts Type Cyl. bore DIN 138 longitudinal key way F4080.UB19.051.Z03.04 2.000 1.606 0.750 1.575 0.157 0.394 3 0.7 3 OD .0605. F4080.UB19.051DC.Z03.04 2.394 2.000 0.750 1.575 0.157 0.394 3 0.7 3 F4080.UB19.064.Z04.04 2.500 2.106 0.750 1.575 0.157 0.394 4 1.1 4 F4080.UB19.064.Z05.04 2.500 2.106 0.750 1.575 0.157 0.394 5 1.1 5 F4080.UB19.064DC.Z05.04 2.894 2.500 0.750 1.575 0.157 0.394 5 1.1 5 F4080.UB26.076.Z05.04 3.000 2.606 1.000 1.969 0.157 0.394 5 1.1 5 F4080.UB26.076.Z06.04 3.000 2.606 1.000 1.969 0.157 0.394 6 1.7 6 F4080.UB26.076DC.Z06.04 3.394 3.000 1.000 1.969 0.157 0.394 6 1.7 6 F4080.UB38.102.Z05.04 4.000 3.606 1.500 2.480 0.157 0.394 5 3.3 5 F4080.UB38.102.Z07.04 4.000 3.606 1.500 2.480 0.157 0.394 7 3.3 7 F4080.UB38.102DC.Z07.04 4.394 4.000 1.500 2.480 0.157 0.394 7 3.3 7 F4080.UB38.127.Z06.04 5.000 4.606 1.500 2.480 0.157 0.394 6 5.5 6 F4080.UB38.127.Z08.04 5.000 4.606 1.500 2.480 0.157 0.394 8 5.5 8 F4080.UB38.127DC.Z08.04 5.394 5.000 1.500 2.480 0.157 0.394 8 5.5 8 F4080.UB38.152.Z07.04 6.000 5.606 1.500 2.480 0.157 0.394 7 9.0 7 OD .0605. F4080.UB38.152.Z09.04 6.000 5.606 1.500 2.480 0.157 0.394 9 9.0 9 F4080.UB38.152DC.Z09.04 6.394 6.000 1.500 2.480 0.157 0.394 9 9.0 9 Bodies and assembly parts are included in the scope of delivery. Design balanced to G 6.3 where n 10000 rpm F 186
