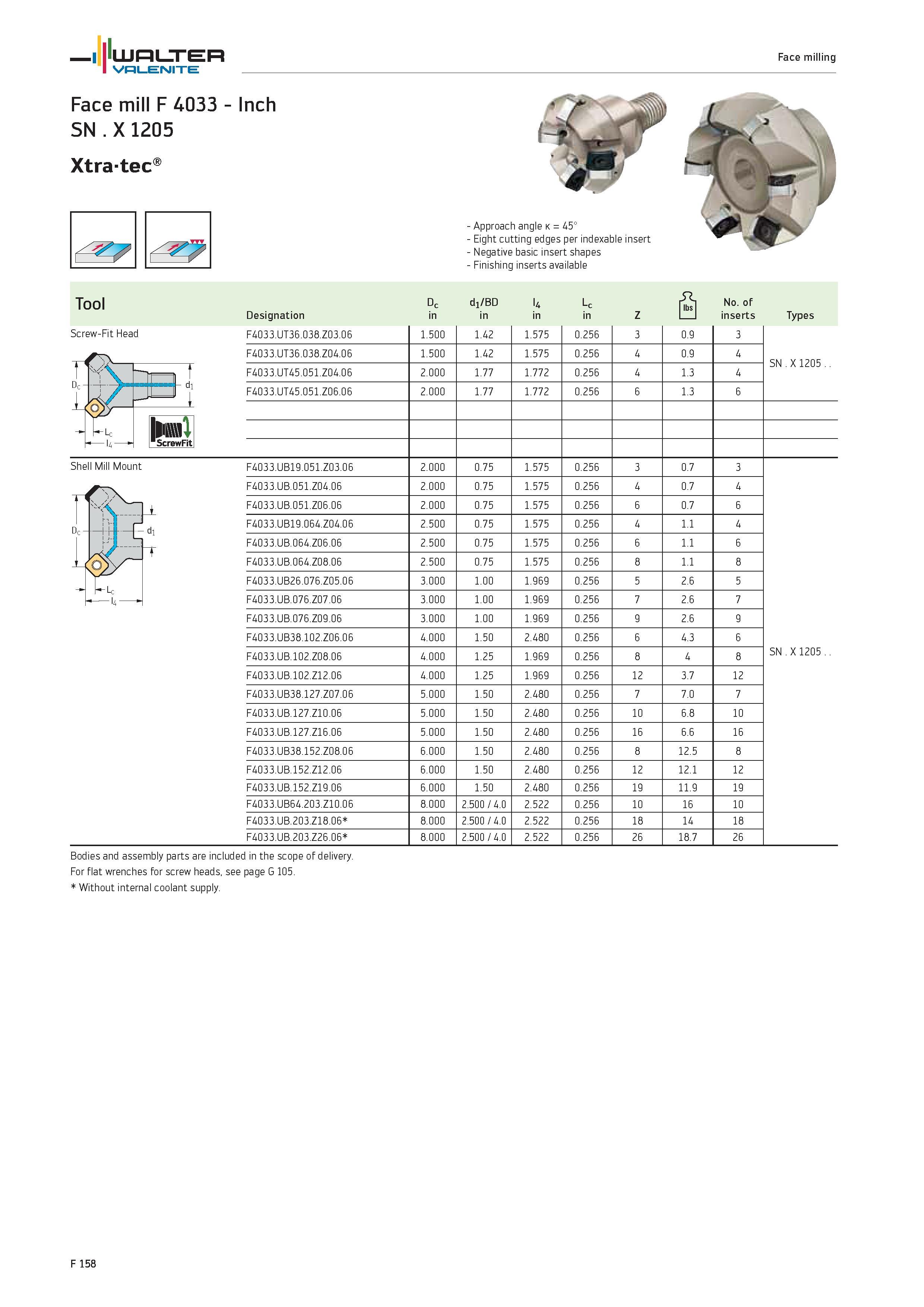

WALTER Valenite Face milling Face mill F 4033 Inch SN X1205 Xtra-tec Screw-Fit Head r L \im\ 14 ScrewFit Approach angle k 45° Eight cutting edges per indexable insert Negative basic insert shapes Finishing inserts available Tool Dc d1/BD U Lc ft n°. °f Designation in Z inserts Types F4033.UT36.038.Z03.06 1.500 1.42 1.575 0.256 3 0.9 3 SN X 1205.. F4033.UT36.038.Z04.06 1.500 1.42 1.575 0.256 4 0.9 4 F4033.UT45.051.Z04.06 2.000 1.77 1.772 0.256 4 1.3 4 F4033.UT45.051.Z06.06 2.000 1.77 1.772 0.256 6 1.3 6 F4033.UB19.051.Z03.06 2.000 0.75 1.575 0.256 3 0.7 3 SN X 1205.. F4033.UB.051.Z04.06 2.000 0.75 1.575 0.256 4 0.7 4 F4033.UB.051.Z06.06 2.000 0.75 1.575 0.256 6 0.7 6 F4033.UB19.064.Z04.06 2.500 0.75 1.575 0.256 4 1.1 4 F4033.UB.064.Z06.06 2.500 0.75 1.575 0.256 6 1.1 6 F4033.UB.064.Z08.06 2.500 0.75 1.575 0.256 8 1.1 8 F4033.UB26.076.Z05.06 3.000 1.00 1.969 0.256 5 2.6 5 F4033.UB.076.Z07.06 3.000 1.00 1.969 0.256 7 2.6 7 F4033.UB.076.Z09.06 3.000 1.00 1.969 0.256 9 2.6 9 F4033.UB38.102.Z06.06 4.000 1.50 2.480 0.256 6 4.3 6 F4033.UB.102.Z08.06 4.000 1.25 1.969 0.256 8 4 8 F4033.UB.102.Z12.06 4.000 1.25 1.969 0.256 12 3.7 12 F4033.UB38.127.Z07.06 5.000 1.50 2.480 0.256 7 7.0 7 F4033.UB.127.Z10.06 5.000 1.50 2.480 0.256 10 6.8 10 F4033.UB.127.Z16.06 5.000 1.50 2.480 0.256 16 6.6 16 F4033.UB38.152.Z08.06 6.000 1.50 2.480 0.256 8 12.5 8 F4033.UB.152.Z12.06 6.000 1.50 2.480 0.256 12 12.1 12 F4033.UB.152.Z19.06 6.000 1.50 2.480 0.256 19 11.9 19 F4033.UB64.203.Z10.06 8.000 2.500 / 4.0 2.522 0.256 10 16 10 F4033.UB.203.Z18.06 8.000 2.500 / 4.0 2.522 0.256 18 14 18 F4033.UB.203.Z26.06 8.000 2.500 / 4.0 2.522 0.256 26 18.7 26 Shell Mill Mount Bodies and assembly parts are included in the scope of delivery. For flat wrenches for screw heads, see page G 105. Without internal coolant supply. F 158
