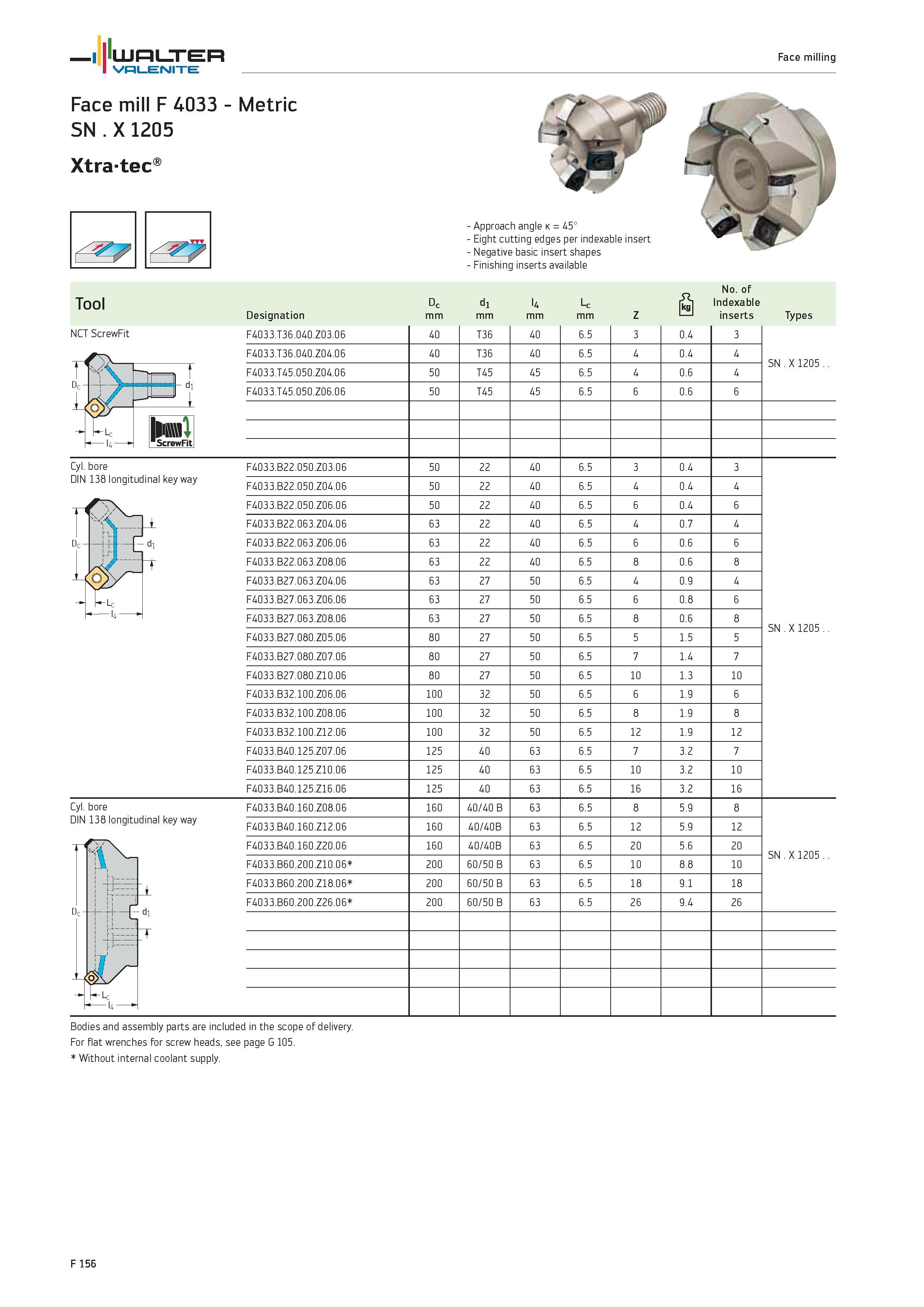

WALTER Valenite Face milling Face mill F 4033 Metric SN X1205 Xtra-tec NCT ScrewFit Approach angle k 45° Eight cutting edges per indexable insert Negative basic insert shapes Finishing inserts available No. of Tool Dc dl U Lc kgl Indexable Designation mm Z LjU inserts Types F4033.T36.040.Z03.06 40 T36 40 6.5 3 0.4 3 SN X 1205.. F4033.T36.040.Z04.06 40 T36 40 6.5 4 0.4 4 F4033.T45.050.Z04.06 50 T45 45 6.5 4 0.6 4 F4033.T45.050.Z06.06 50 T45 45 6.5 6 0.6 6 F4033.B22.050.Z03.06 50 22 40 6.5 3 0.4 3 SN X 1205.. F4033.B22.050.Z04.06 50 22 40 6.5 4 0.4 4 F4033.B22.050.Z06.06 50 22 40 6.5 6 0.4 6 F4033.B22.063.Z04.06 63 22 40 6.5 4 0.7 4 F4033.B22.063.Z06.06 63 22 40 6.5 6 0.6 6 F4033.B22.063.Z08.06 63 22 40 6.5 8 0.6 8 F4033.B27.063.Z04.06 63 27 50 6.5 4 0.9 4 F4033.B27.063.Z06.06 63 27 50 6.5 6 0.8 6 F4033.B27.063.Z08.06 63 27 50 6.5 8 0.6 8 F4033.B27.080.Z05.06 80 27 50 6.5 5 1.5 5 F4033.B27.080.Z07.06 80 27 50 6.5 7 1.4 7 F4033.B27.080.Z10.06 80 27 50 6.5 10 1.3 10 F4033.B32.100.Z06.06 100 32 50 6.5 6 1.9 6 F4033.B32.100.Z08.06 100 32 50 6.5 8 1.9 8 F4033.B32.100.Z12.06 0 0 32 50 6.5 12 1.9 12 F4033.B40.125.Z07.06 125 40 63 6.5 7 3.2 7 F4033.B40.125.Z10.06 125 40 63 6.5 10 3.2 10 F4033.B40.125.Z16.06 125 40 63 6.5 16 3.2 16 F4033.B40.160.Z08.06 0 6 40/40 B 63 6.5 8 5.9 8 SN X 1205.. F4033.B40.160.Z12.06 0 6 40/40B 63 6.5 12 5.9 12 F4033.B40.160.Z20.06 0 6 40/40B 63 6.5 20 5.6 20 F4033.B60.200.Z10.06 200 60/50 B 63 6.5 10 .8 8. 10 F4033.B60.200.Z18.06 200 60/50 B 63 6.5 18 9.1 18 F4033.B60.200.Z26.06 200 60/50 B 63 6.5 26 9.4 26 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way H 1 -+H 1 Bodies and assembly parts are included in the scope of delivery. For flat wrenches for screw heads, see page G 105. Without internal coolant supply. u F 156
