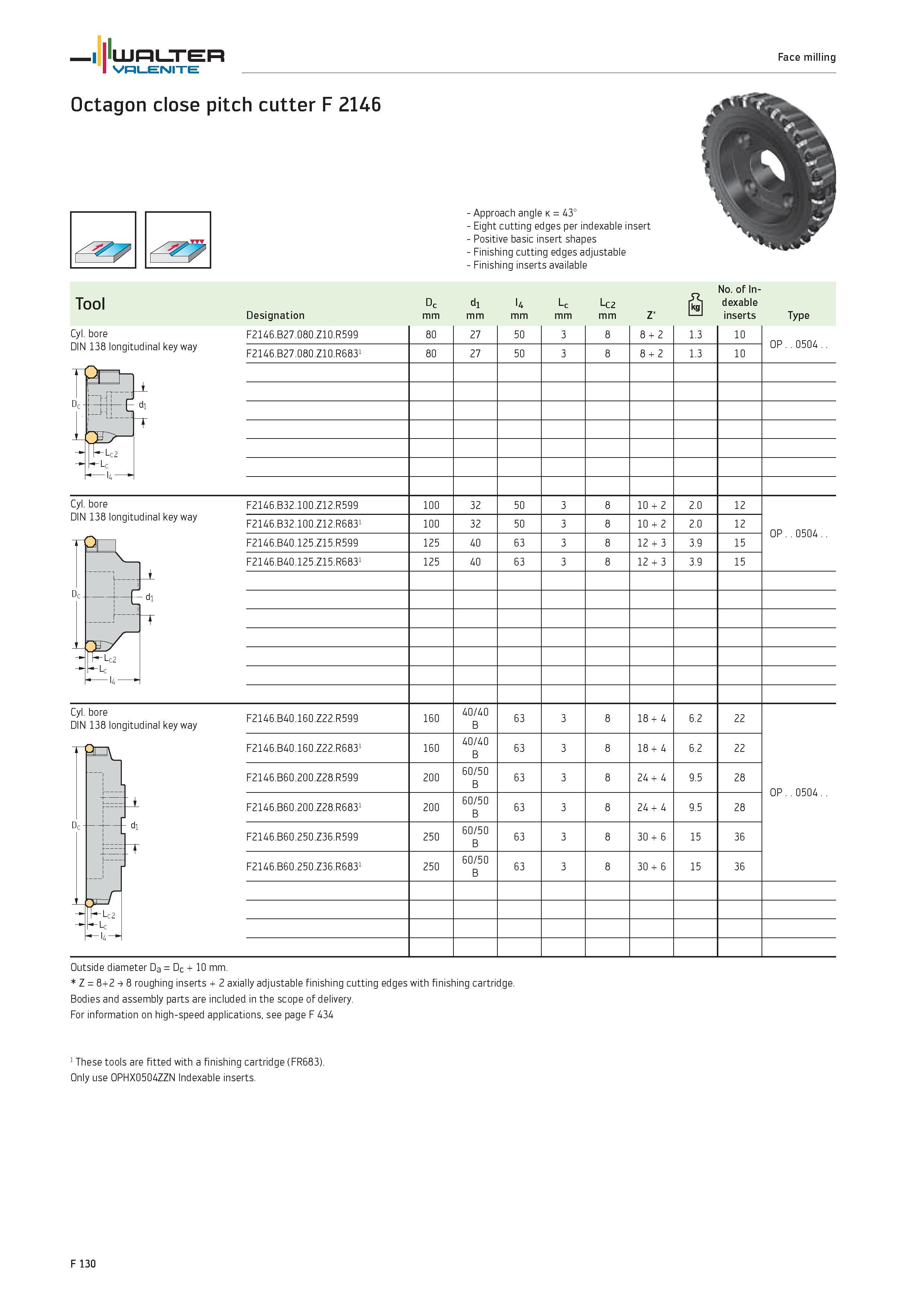

WALTER Valenite Face milling Octagon close pitch cutter F 2146 Cyl. bore DIN 138 longitudinal key way Approach angle k 43° Eight cutting edges per indexable insert Positive basic insert shapes Finishing cutting edges adjustable Finishing inserts available No. of In- Tool Dc di l4 Lc LC2 Ikgl dexable Designation mm Z 1 1 inserts Type F2146.B27.080.Z10.R599 80 27 50 3 8 8 + 2 1.3 10 OP..0504. F2146.B27.080.Z10.R6831 80 27 50 3 8 8 + 2 1.3 10 F2146.B32.100.Z12.R599 100 32 50 3 8 10 + 2 2.0 12 OP..0504. F2146.B32.100.Z12.R6831 100 32 50 3 8 10 + 2 2.0 12 F2146.B40.125.Z15.R599 125 40 63 3 8 12 + 3 3.9 15 F2146.B40.125.Z15R6831 125 40 63 3 8 12 + 3 3.9 15 F2146.B40.160.Z22.R599 160 40/40 B 63 3 8 18 + 4 6.2 22 OP 0504 F2146.B40.160.Z22.R6831 160 40/40 B 63 3 8 18 + 4 6.2 22 F2146.B60.200.Z28.R599 200 60/50 B 63 3 8 24 + 4 9.5 28 F2146.B60.200.Z28.R6831 200 60/50 B 63 3 8 24 + 4 9.5 28 F2146.B60.250.Z36.R599 250 60/50 B 63 3 8 30 + 6 15 36 F2146.B60.250.Z36.R6831 250 60/50 B 63 3 8 30 + 6 15 36 Cyl. bore DIN 138 longitudinal key way f -l4- Cyl. bore DIN 138 longitudinal key way Outside diameter Da Dc + 10 mm. Z 8+2 8 roughing inserts + 2 axially adjustable finishing cutting edges with finishing cartridge. Bodies and assembly parts are included in the scope of delivery. For information on high-speed applications, see page F 434 1 These tools are fitted with a finishing cartridge (FR683). Only use OPHX0504ZZN Indexable inserts. D F 130
