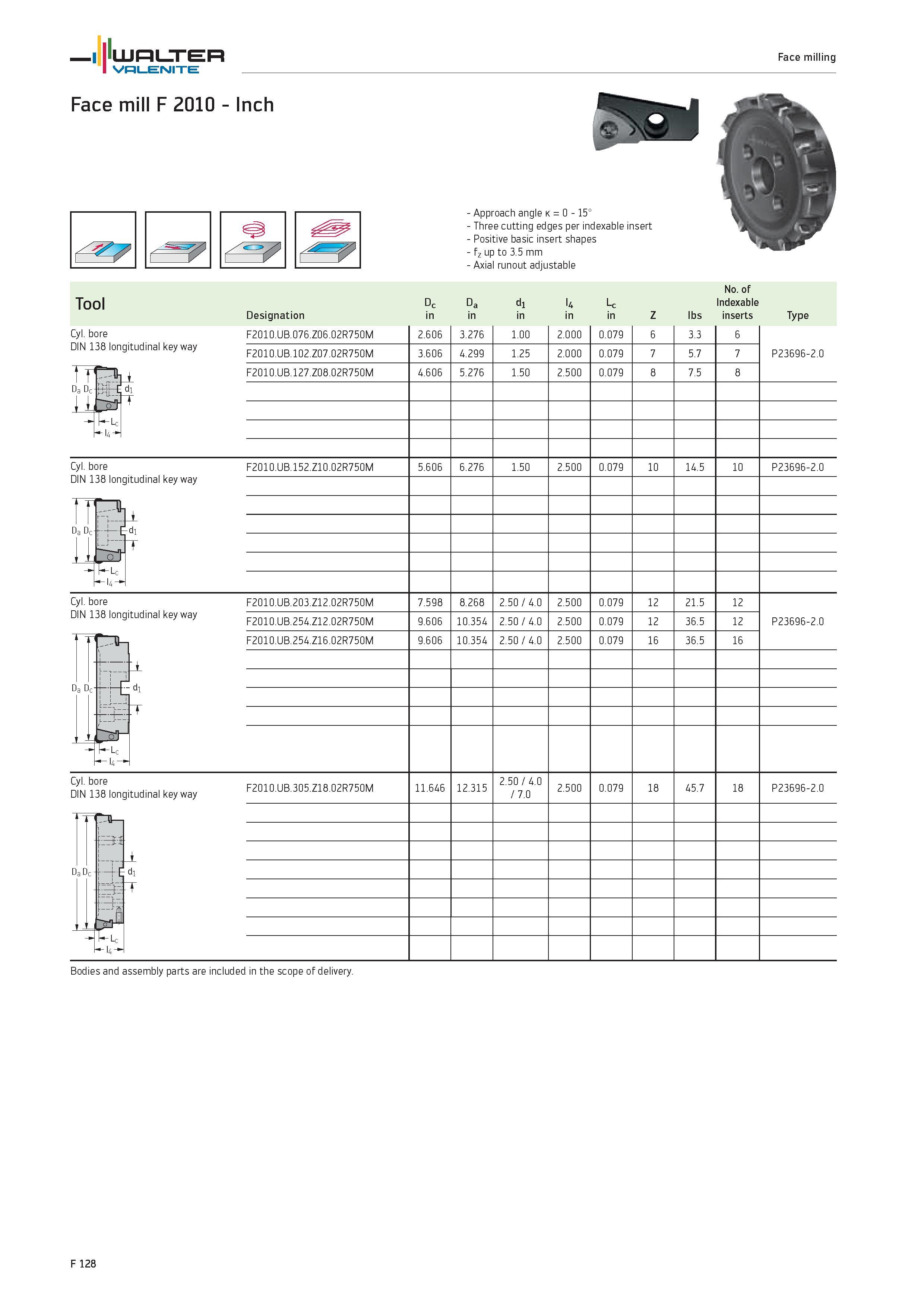

WALTER Valenite Face milling Face mill F 2010 Inch "7 Approach angle k 0 15° Three cutting edges per indexable insert Positive basic insert shapes fz up to 3.5 mm Axial runout adjustable No. of Tool Dc Da d1 l4 Lc Indexable Designation in Z lbs inserts Type Cyl. bore DIN 138 longitudinal key way T Da Dc ii F2010.UB.076.Z06.02R750M 2.606 3.276 1.00 2.000 0.079 6 3.3 6 P23696-2.0 F2010.UB.102.Z07.02R750M 3.606 4.299 1.25 2.000 0.079 7 5.7 7 F2010.UB.127.Z08.02R750M 4.606 5.276 1.50 2.500 0.079 8 7.5 8 F2010.UB.152.Z10.02R750M 5.606 6.276 1.50 2.500 0.079 10 14.5 10 P23696-2.0 F2010.UB.203.Z12.02R750M 7.598 8.268 2.50 / 4.0 2.500 0.079 12 21.5 12 P23696-2.0 F2010.UB.254.Z12.02R750M 9.606 10.354 2.50 / 4.0 2.500 0.079 12 36.5 12 F2010.UB.254.Z16.02R750M 9.606 10.354 2.50 / 4.0 2.500 0.079 16 36.5 16 F2010.UB.305.Z18.02R750M 11.646 12.315 2.50 / 4.0 / 7.0 2.500 0.079 18 45.7 18 P23696-2.0 Cyl. bore DIN 138 longitudinal key way Cyl. bore DIN 138 longitudinal key way :'± -i F d1 'ST k- Cyl. bore DIN 138 longitudinal key way Bodies and assembly parts are included in the scope of delivery. L Da U a >-'c UD a -'c L F 128
