1862 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.E260

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. E260 1862 ENG Lab2u

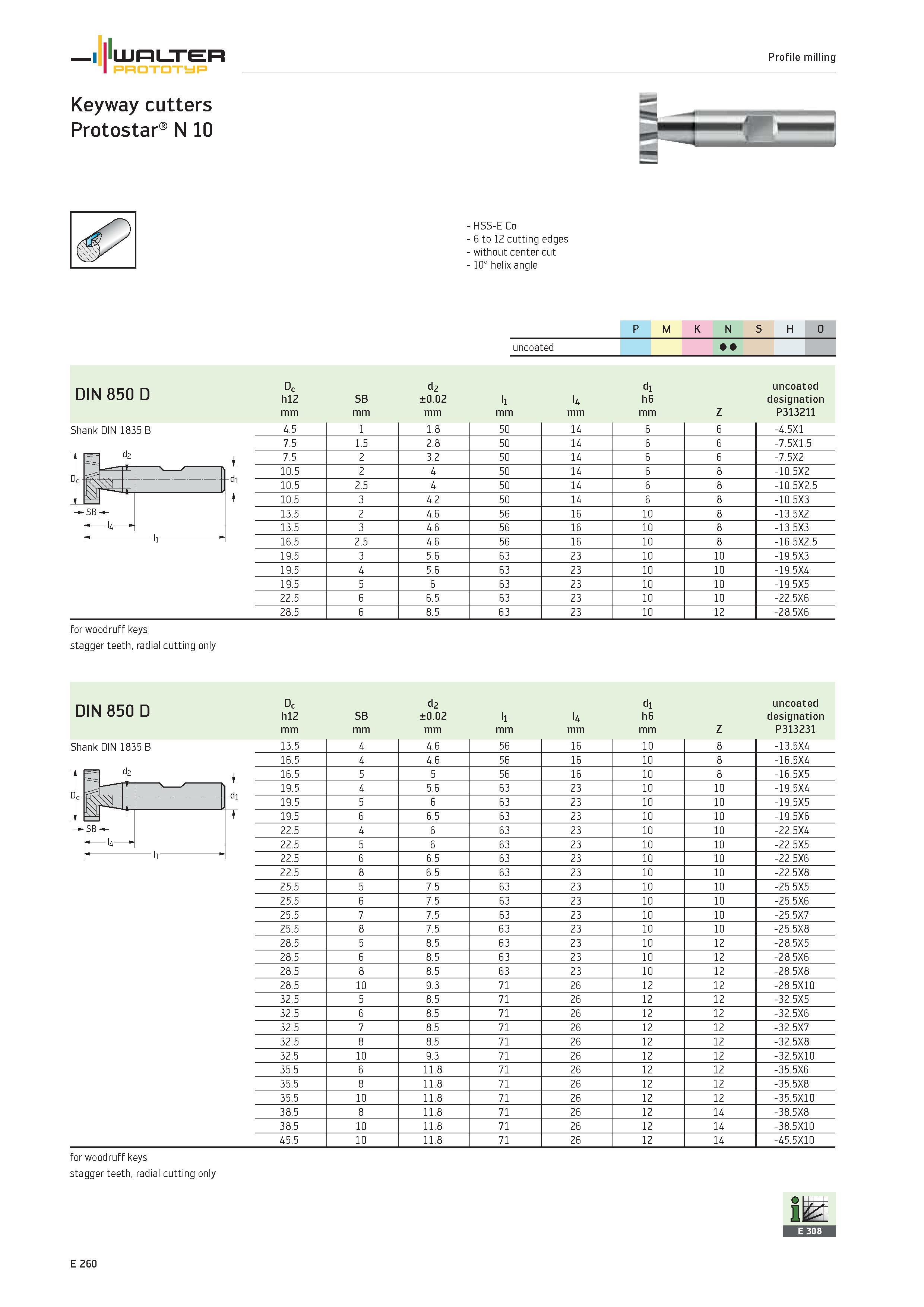

WALTER PROTOTYP Keyway cutters Protostar N 10 Profile milling HSS-E Co 6 to 12 cutting edges without center cut 10° helix angle P M K N S H O uncoated DIN 850 D Dc h12 mm SB mm d2 ±0.02 l1 mm l4 mm d1 h6 mm uncoated designation P313211 Shank DIN 1835 B 4.5 1 1.8 50 14 6 6 -4.5X1 7.5 1.5 2.8 50 14 6 6 -7.5X1.5 Dc 3 d2 J 75 2 3.2 50 14 6 6 -7.5X2 10.5 2 4 50 14 6 8 -10.5X2 1 10.5 2.5 4 50 14 6 8 -10.5X2.5 sB T 10.5 3 4.2 50 14 6 8 -10.5X3 13.5 2 4.6 56 16 10 8 -13.5X2 13.5 3 4.6 56 16 10 8 -13.5X3 i- ii 16.5 2.5 4.6 56 16 10 8 -16.5X2.5 19.5 3 5.6 63 23 10 10 -19.5X3 19.5 4 5.6 63 23 10 10 -19.5X4 19.5 5 6 63 23 10 10 -19.5X5 22.5 6 6.5 63 23 10 10 -22.5X6 28.5 6 8.5 63 23 10 12 -28.5X6 for woodruff keys stagger teeth, radial cutting only Z mm DIN 850 D Dc h12 SB d2 ±0.02 l1 l4 d1 h6 uncoated designation mm Z P313231 Shank DIN 1835 B 13.5 4 4.6 56 16 10 8 -13.5X4 16.5 4 4.6 56 16 10 8 -16.5X4 d2 1 16.5 5 5 56 16 10 8 -16.5X5 Dc rl- 19.5 4 5.6 63 23 10 10 -19.5X4 19.5 5 6 63 23 10 10 -19.5X5 1 f 1 19.5 6 6.5 63 23 10 10 -19.5X6 SB 22.5 4 6 63 23 10 10 -22.5X4 I4 22.5 5 6 63 23 10 10 -22.5X5 li > 22.5 6 6.5 63 23 10 10 -22.5X6 22.5 8 6.5 63 23 10 10 -22.5X8 25.5 5 7.5 63 23 10 10 -25.5X5 25.5 6 7.5 63 23 10 10 -25.5X6 25.5 7 7.5 63 23 10 10 -25.5X7 25.5 8 7.5 63 23 10 10 -25.5X8 28.5 5 8.5 63 23 10 12 -28.5X5 28.5 6 8.5 63 23 10 12 -28.5X6 28.5 8 8.5 63 23 10 12 -28.5X8 28.5 10 9.3 71 26 12 12 -28.5X10 32.5 5 8.5 71 26 12 12 -32.5X5 32.5 6 8.5 71 26 12 12 -32.5X6 32.5 7 8.5 71 26 12 12 -32.5X7 32.5 8 8.5 71 26 12 12 -32.5X8 32.5 10 9.3 71 26 12 12 -32.5X10 35.5 6 11.8 71 26 12 12 -35.5X6 35.5 8 11.8 71 26 12 12 -35.5X8 35.5 10 11.8 71 26 12 12 -35.5X10 38.5 8 11.8 71 26 12 14 -38.5X8 38.5 10 11.8 71 26 12 14 -38.5X10 45.5 10 11.8 71 26 12 14 -45.5X10 for woodruff keys stagger teeth, radial cutting only E 260
