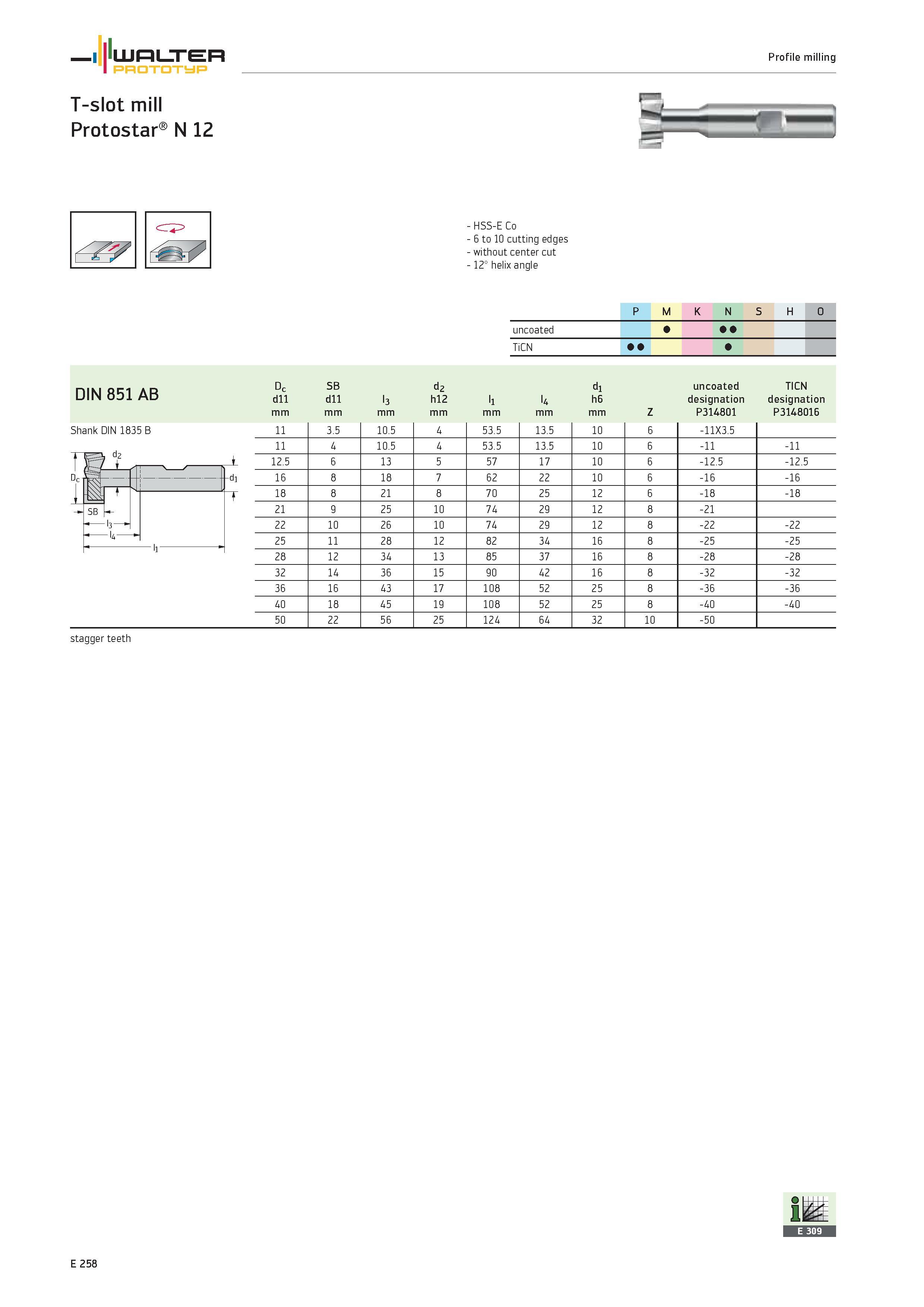

WALTER PROTOTYP Profile milling T-slot mill Protostar N 12 HSS-E Co 6 to 10 cutting edges without center cut 12° helix angle P M K N S H O uncoated TiCN 1 DIN 851 AB Dc dll mm SB dll mm l3 mm d2 h12 mm ll mm U mm dl h6 mm Z uncoated designation P3l480l TICN designation P3l480l6 Sh ank DIN 1835 B 11 3.5 10.5 4 53.5 13.5 10 6 -11X3.5 11 4 10.5 4 53.5 13.5 10 6 -11 -11 L 12.5 6 13 5 57 17 10 6 -12.5 -12.5 Dc fp -dj 16 8 18 7 62 22 10 6 -16 -16 1 S T 18 8 21 8 70 25 12 6 -18 -18 SB 21 9 25 10 74 29 12 8 -21 -i 13 22 10 26 10 74 29 12 8 -22 -22 I4 25 11 28 12 82 34 16 8 -25 -25 28 12 34 13 85 37 16 8 -28 -28 32 14 36 15 90 42 16 8 -32 -32 36 16 43 17 108 52 25 8 -36 -36 40 18 45 19 108 52 25 8 -40 -40 50 22 56 25 124 64 32 10 -50 stagger teeth E 258
