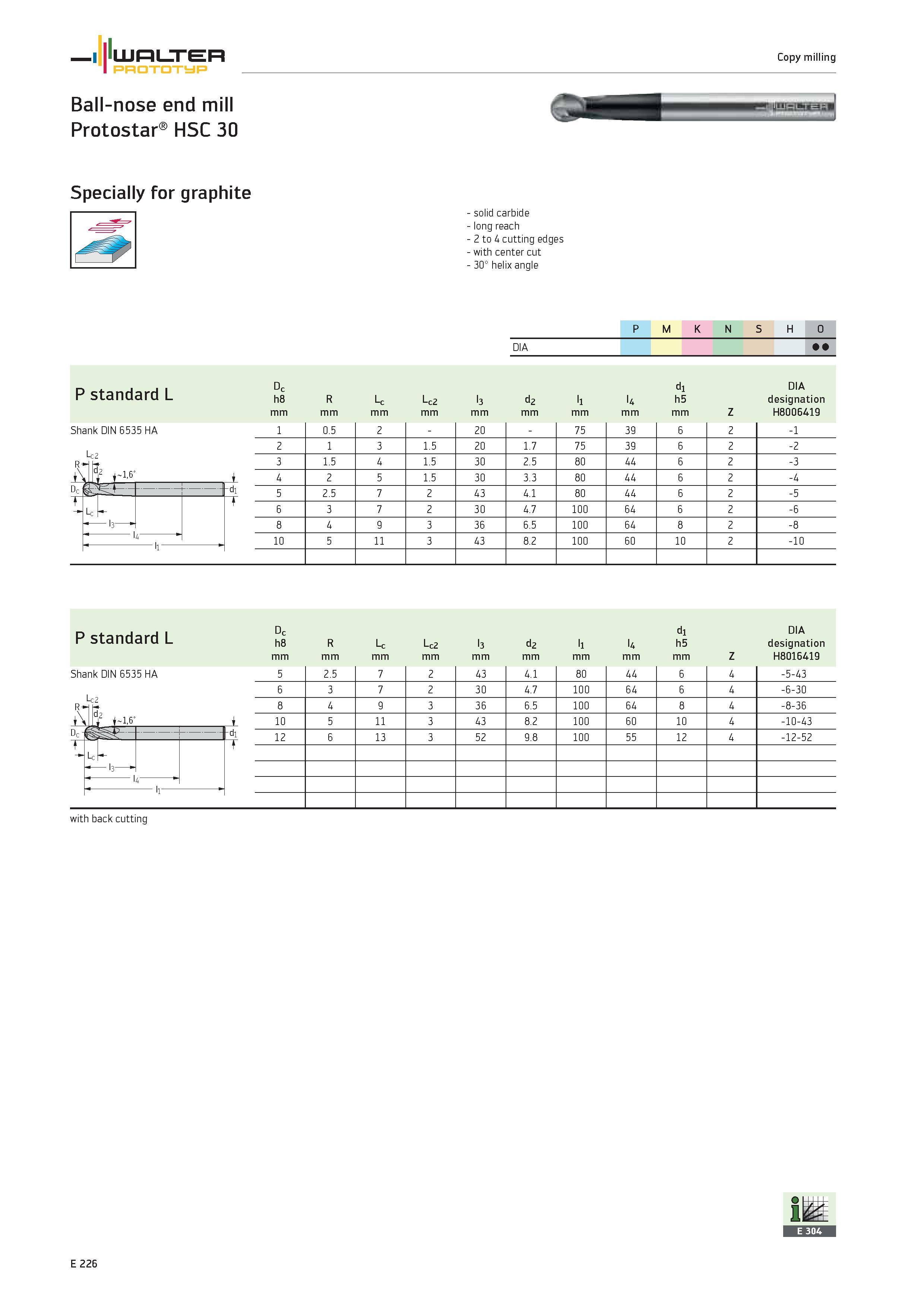

WALTER PROTOTYP Copy milling Ball-nose end mill Protostar HSC 30 Specially for graphite solid carbide long reach 2 to 4 cutting edges with center cut 30° helix angle P M K N S H O DIA P standard L Dc h8 mm R mm c mm Lc2 mm l3 mm d2 mm ll mm l4 mm dl h5 DIA designation H8006419 Shank DIN 6535 HA Lc2 R- tf 1 0.5 2 20 75 39 6 2 -1 2 1 3 1.5 20 1.7 75 39 6 2 -2 3 1.5 4 1.5 30 2.5 80 44 6 2 -3 i 4 2 5 1.5 30 3.3 80 44 6 2 -4 Dc 5 2.5 7 2 43 4.1 80 44 6 2 -5 T 6 3 7 2 30 4.7 100 64 6 2 -6 8 4 9 3 36 6.5 100 64 8 2 -8 l4 li 10 5 11 3 43 8.2 100 60 10 2 -10 Z mm P standard L c8 Q .c R Lc Lc2 l3 d2 ll u l5 .c DIA designation mm Z H8016419 Shank DIN 6535 HA 5 2.5 7 2 43 4.1 80 44 6 4 -5-43 6 3 7 2 30 4.7 100 64 6 4 -6-30 8 4 9 3 36 6.5 100 64 8 4 -8-36 10 5 11 3 43 8.2 100 60 10 4 -10-43 12 6 13 3 52 9.8 100 55 12 4 -12-52 with back cutting E 226
