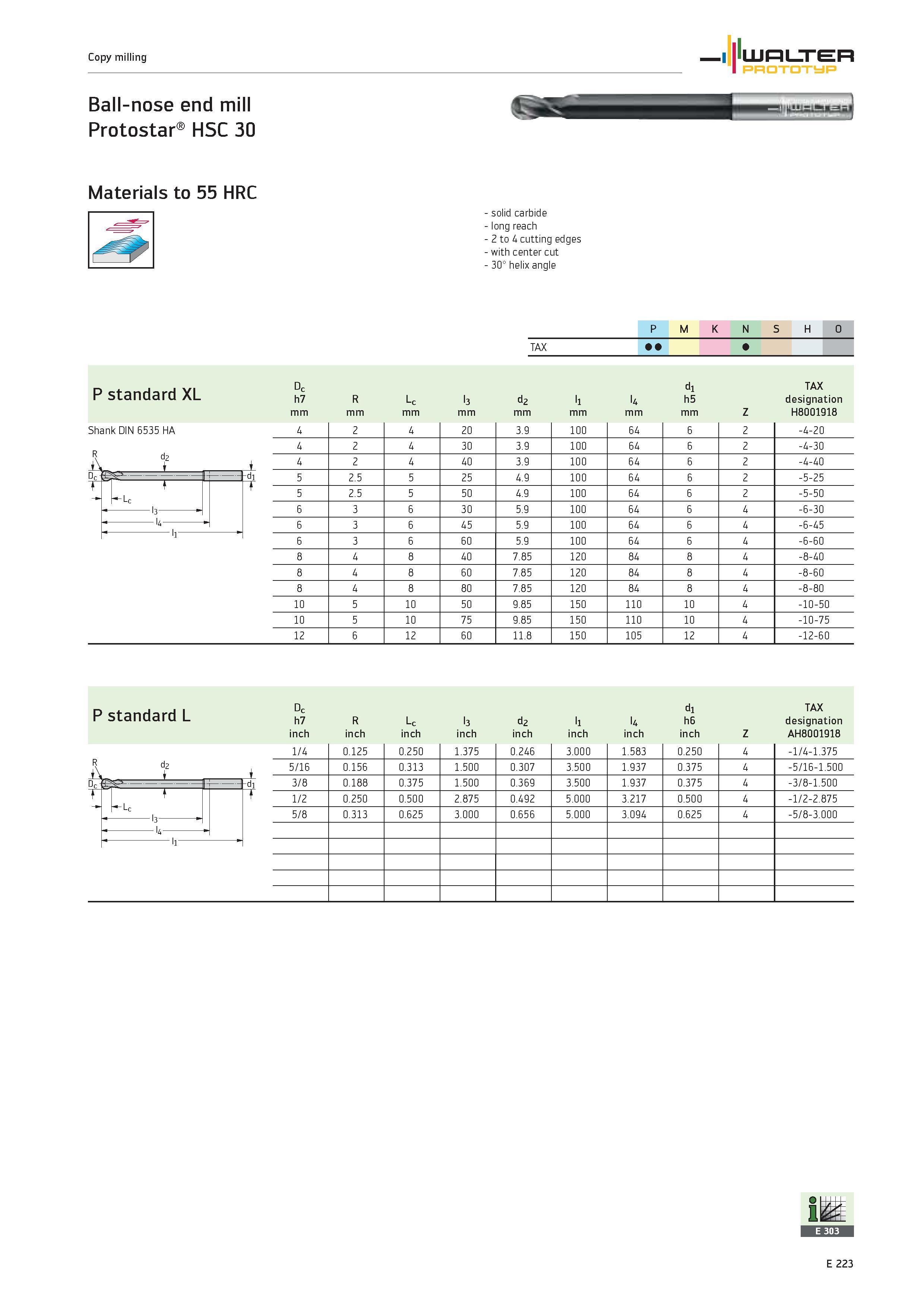

Copy milling WALTER PROTOTYP Ball-nose end mill Protostar HSC 30 Materials to 55 HRC solid carbide long reach 2 to 4 cutting edges with center cut 30° helix angle P M K N S H O TAX P standard XL h 7 R Lc l3 d2 li U h5 designat ion mm Z H8001918 Shank DIN 6535 HA k d2 4 2 4 20 3.9 100 64 6 2 -4-20 4 2 4 30 3.9 100 64 6 2 -4-30 4 2 4 40 3.9 100 64 6 2 -4-40 l M dj 5 2.5 5 25 4.9 100 64 6 2 -5-25 kLc l3 T 5 2.5 5 50 4.9 100 64 6 2 -5-50 6 3 6 30 5.9 100 64 6 4 -6-30 l4 6 3 6 45 5.9 100 64 6 4 -6-45 6 3 6 60 5.9 100 64 6 4 -6-60 8 4 8 40 7.85 120 84 8 4 -8-40 8 4 8 60 7.85 0 2 84 8 4 -8-60 8 4 8 80 7.85 120 84 8 4 -8-80 10 5 10 50 9.85 150 110 10 4 -10-50 10 5 10 75 9.85 150 110 10 4 -10-75 12 6 12 60 11.8 150 105 12 4 -12-60 P standard L c7 Dh R Lc l3 d2 li u dh TAX designation inch inch inch inch inch inch inch inch Z AH8001918 d2 1/4 0.125 0.250 1.375 0.246 3.000 1.583 0.250 4 -1/4-1.375 5/16 0.156 0.313 1.500 0.307 3.500 1.937 0.375 4 -5/16-1.500 3/8 0.188 0.375 1.500 0.369 3.500 1.937 0.375 4 -3/8-1.500 1/2 0.250 0.500 2.875 0.492 5.000 3.217 0.500 4 -1/2-2.875 5/8 0.313 0.625 3.000 0.656 5.000 3.094 0.625 4 -5/8-3.000 L E 223
