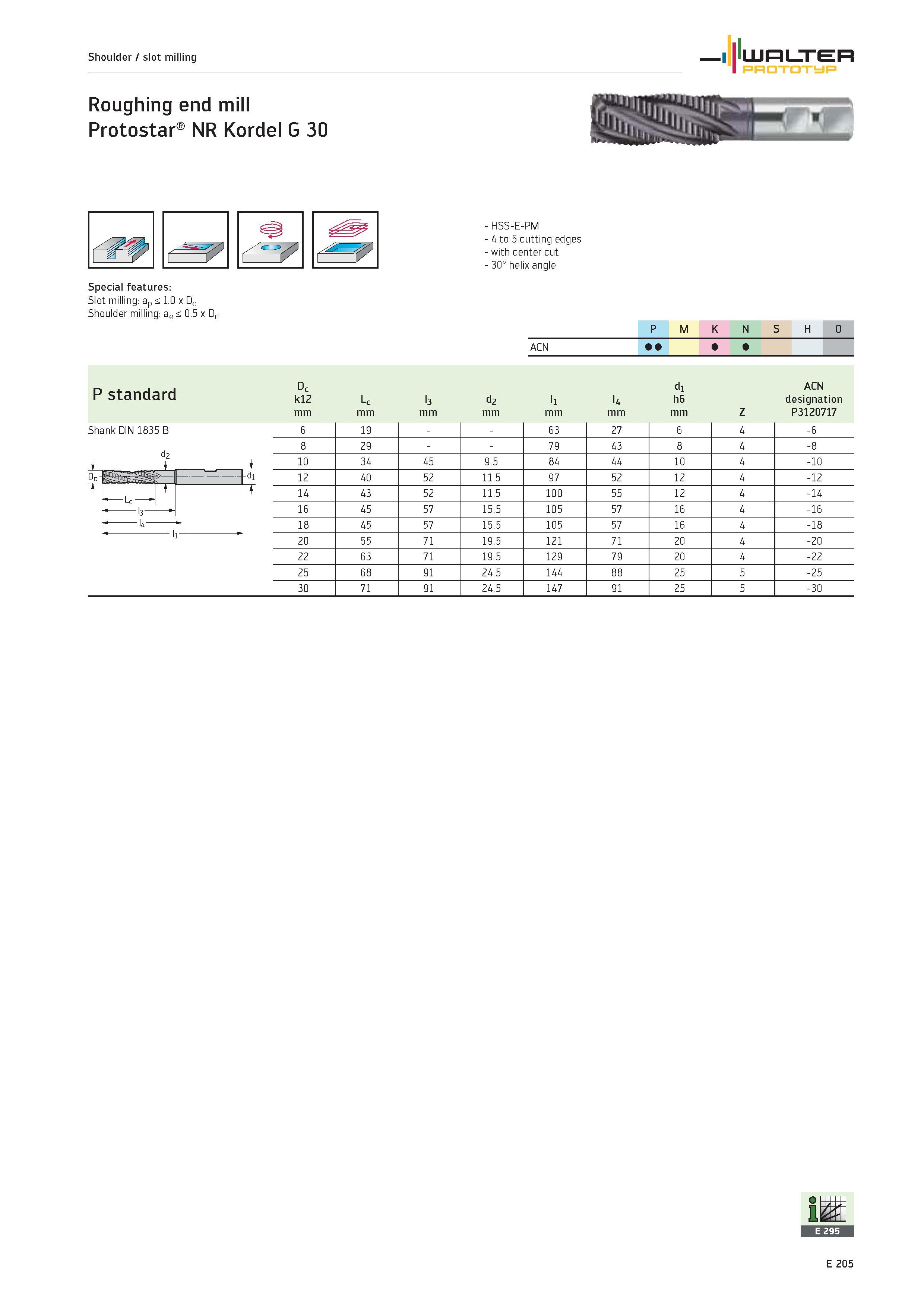

Shoulder / slot milling WALTER PROTOTYP Roughing end mill Protostar NR Kordel G 30 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.5 x Dc HSS-E-PM 4 to 5 cutting edges with center cut 30° helix angle P M K N S H O ACN 1 P standard Dc k12 Lc l3 d2 ll l4 dl h6 ACN designation mm Z P3120717 6 19 63 27 6 4 -6 8 29 79 43 8 4 -8 10 34 45 9.5 84 44 10 4 -10 12 40 52 11.5 97 52 12 4 -12 14 43 52 11.5 100 55 12 4 -14 16 45 57 15.5 105 57 16 4 -16 18 45 57 15.5 105 57 16 4 -18 20 55 71 19.5 121 71 20 4 -20 22 63 71 19.5 129 79 20 4 -22 25 68 91 24.5 144 88 25 5 -25 30 71 91 24.5 147 91 25 5 -30 E 205
