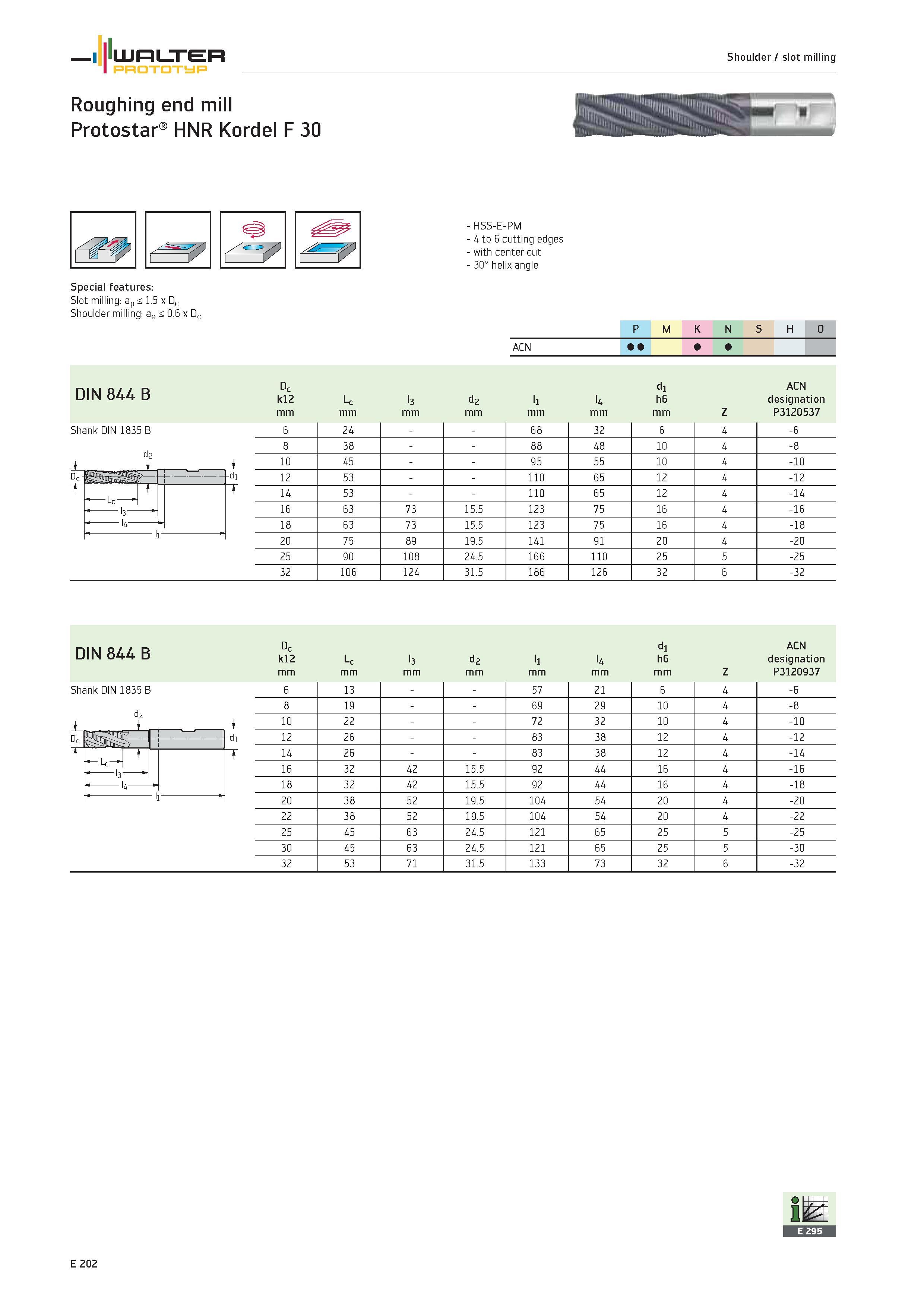

WALTER PROTOTYP Shoulder / slot milling Roughing end mill Protostar HNR Kordel F 30 HSS-E-PM 4 to 6 cutting edges with center cut 30° helix angle Special features Slot milling ap < 1.5 x Dc Shoulder milling ae < 0.6 x Dc P M K N S H O ACN DIN 844 B Dc k12 mm Lc mm l3 mm d2 mm ll mm U mm 16 m dhm Z ACN designation P3120537 Shank DIN 1835 B 6 24 68 32 6 4 -6 d2 + 8 38 88 48 10 4 -8 1 10 45 95 55 10 4 -10 Dc- > di 12 53 110 65 12 4 -12 t i 1 r t 14 53 110 65 12 4 -14 16 63 73 15.5 123 75 16 4 -16 18 63 73 15.5 123 75 16 4 -18 ii 20 75 89 19.5 141 91 20 4 -20 25 90 108 24.5 166 110 25 5 -25 32 106 124 31.5 186 126 32 6 -32 DIN 844 B Dc k12 mm Lc mm l3 mm d2 mm ll mm U mm dl h6 mm Z ACN designation P3120937 Shank DIN 1835 B d2 6 13 57 21 6 4 -6 8 19 69 29 10 4 -8 10 22 72 32 10 4 -10 Dc -di 12 26 83 38 12 4 -12 1 T 14 26 83 38 12 4 -14 Lc 16 32 42 15.5 92 44 16 4 -16 4 18 32 42 15.5 92 44 16 4 -18 -li 20 38 52 19.5 104 54 20 4 -20 22 38 52 19.5 104 54 20 4 -22 25 45 63 24.5 121 65 25 5 -25 30 45 63 24.5 121 65 25 5 -30 32 53 71 31.5 133 73 32 6 -32 E 202
