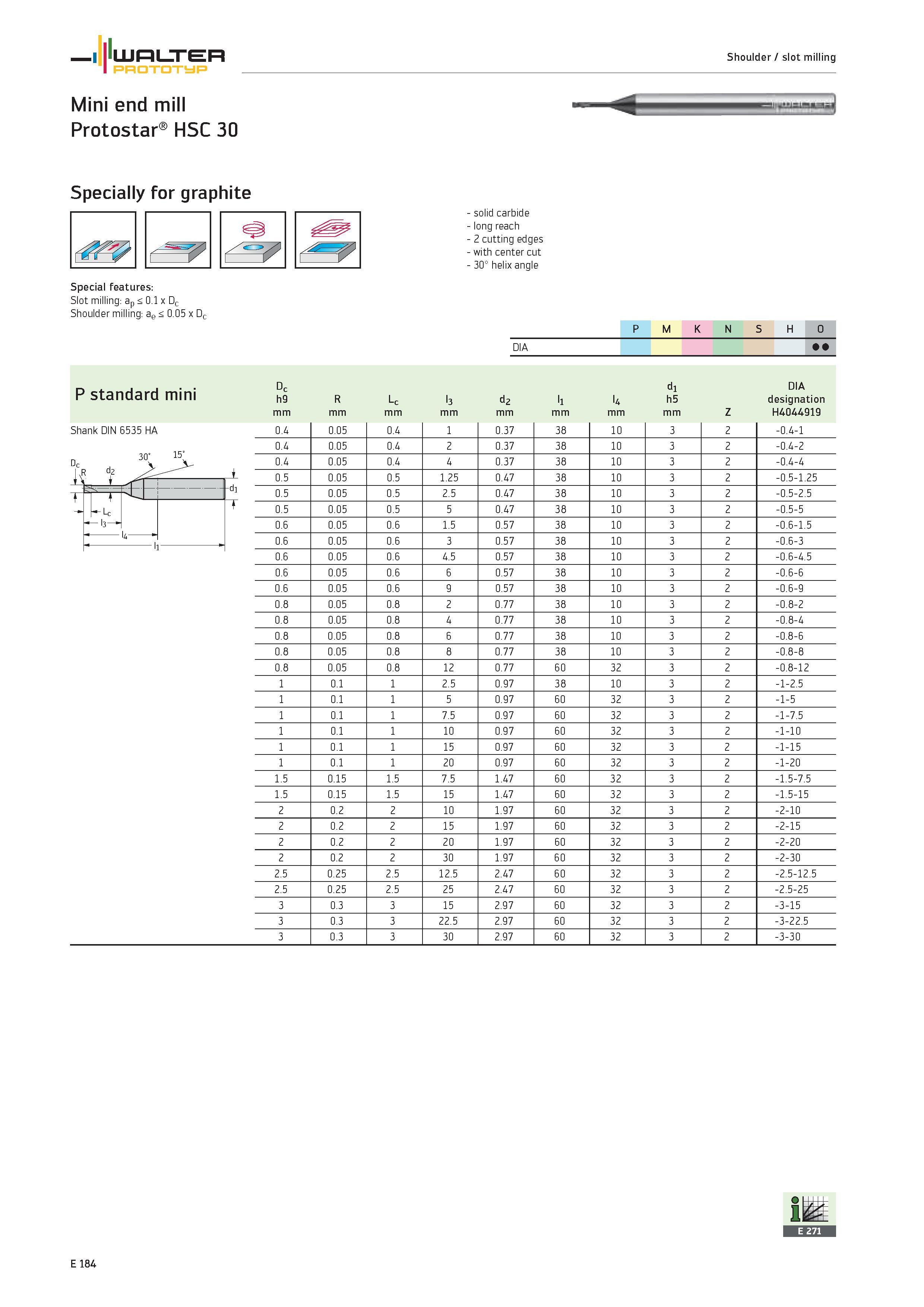

WALTER Prototyp Mini end mill Protostar HSC 30 Shoulder / slot milling Specially for graphite solid carbide long reach 2 cutting edges with center cut 30° helix angle Special features Slot milling ap < 0.1 x Dc Shoulder milling ae < 0.05 x Dc 1 P M K N S H O DIA P standard mini Shank DIN 6535 HA Dc h9 mm R mm c mm l3 mm d2 mm ll mm u mm dl h5 DIA designation H4044919 0.4 0.05 0.4 1 0.37 38 10 3 2 -0.4-1 0.4 0.05 0.4 2 0.37 38 10 3 2 -0.4-2 0.4 0.05 0.4 4 0.37 38 10 3 2 -0.4-4 0.5 0.05 0.5 1.25 0.47 38 10 3 2 -0.5-1.25 0.5 0.05 0.5 2.5 0.47 38 10 3 2 -0.5-2.5 0.5 0.05 0.5 5 0.47 38 10 3 2 -0.5-5 0.6 0.05 0.6 1.5 0.57 38 10 3 2 -0.6-1.5 0.6 0.05 0.6 3 0.57 38 10 3 2 -0.6-3 0.6 0.05 0.6 4.5 0.57 38 10 3 2 -0.6-4.5 0.6 0.05 0.6 6 0.57 38 10 3 2 -0.6-6 0.6 0.05 0.6 9 0.57 38 10 3 2 -0.6-9 0.8 0.05 0.8 2 0.77 38 10 3 2 -0.8-2 0.8 0.05 0.8 4 0.77 38 10 3 2 -0.8-4 0.8 0.05 0.8 6 0.77 38 10 3 2 -0.8-6 0.8 0.05 0.8 8 0.77 38 10 3 2 -0.8-8 0.8 0.05 0.8 12 0.77 60 32 3 2 -0.8-12 1 0.1 1 2.5 0.97 38 10 3 2 -1-2.5 1 0.1 1 5 0.97 60 32 3 2 -1-5 1 0.1 1 7.5 0.97 60 32 3 2 -1-7.5 1 0.1 1 10 0.97 60 32 3 2 -1-10 1 0.1 1 15 0.97 60 32 3 2 -1-15 1 0.1 1 20 0.97 60 32 3 2 -1-20 1.5 0.15 1.5 7.5 1.47 60 32 3 2 -1.5-7.5 1.5 0.15 1.5 15 1.47 60 32 3 2 -1.5-15 2 0.2 2 10 1.97 60 32 3 2 -2-10 2 0.2 2 15 1.97 60 32 3 2 -2-15 2 0.2 2 20 1.97 60 32 3 2 -2-20 2 0.2 2 30 1.97 60 32 3 2 -2-30 2.5 0.25 2.5 12.5 2.47 60 32 3 2 -2.5-12.5 2.5 0.25 2.5 25 2.47 60 32 3 2 -2.5-25 3 0.3 3 15 2.97 60 32 3 2 -3-15 3 0.3 3 22.5 2.97 60 32 3 2 -3-22.5 3 0.3 3 30 2.97 60 32 3 2 -3-30 Z mm E 184
