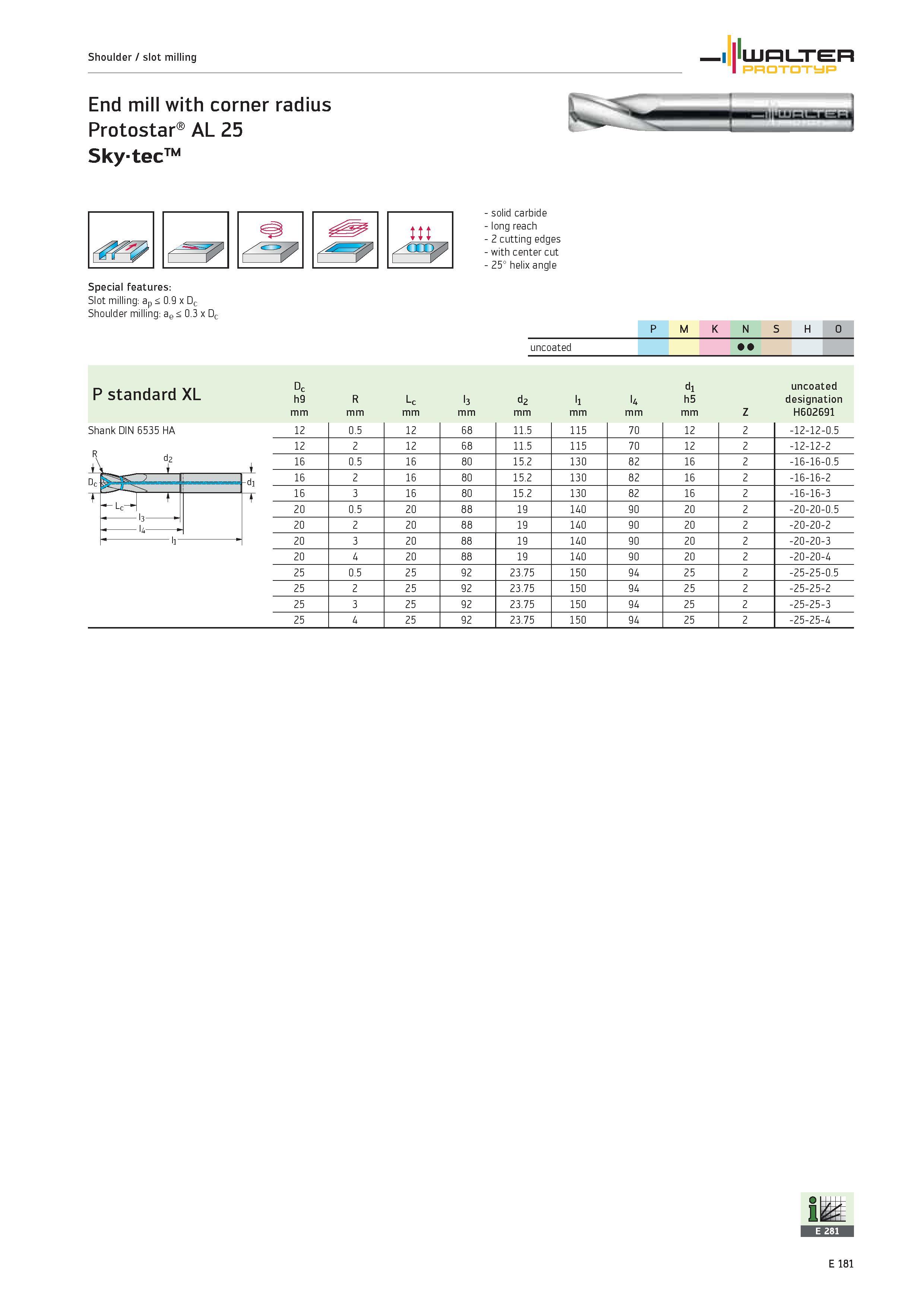

Shoulder / slot milling WALTER PROTOTYP End mill with corner radius Protostar AL 25 Sky-tecTM Special features Slot milling ap < 0.9 x Dc Shoulder milling ae < 0.3 x Dc in solid carbide long reach 2 cutting edges with center cut 25° helix angle 1 P M K N S H 0 uncoated P standard XL Shank DIN 6535 HA dl uncoated h9 R Lc l3 d2 ll U h5 designation mm Z H602691 12 0.5 12 68 11.5 115 70 12 2 -12-12-0.5 12 2 12 68 11.5 115 70 12 2 -12-12-2 16 0.5 16 80 15.2 130 82 16 2 -16-16-0.5 16 2 16 80 15.2 130 82 16 2 -16-16-2 16 3 16 80 15.2 130 82 16 2 -16-16-3 20 0.5 20 88 19 140 90 20 2 -20-20-0.5 20 2 20 88 19 140 90 20 2 -20-20-2 20 3 20 88 19 140 90 20 2 -20-20-3 20 4 20 88 19 140 90 20 2 -20-20-4 25 0.5 25 92 23.75 150 94 25 2 -25-25-0.5 25 2 25 92 23.75 150 94 25 2 -25-25-2 25 3 25 92 23.75 150 94 25 2 -25-25-3 25 4 25 92 23.75 150 94 25 2 -25-25-4 D c
