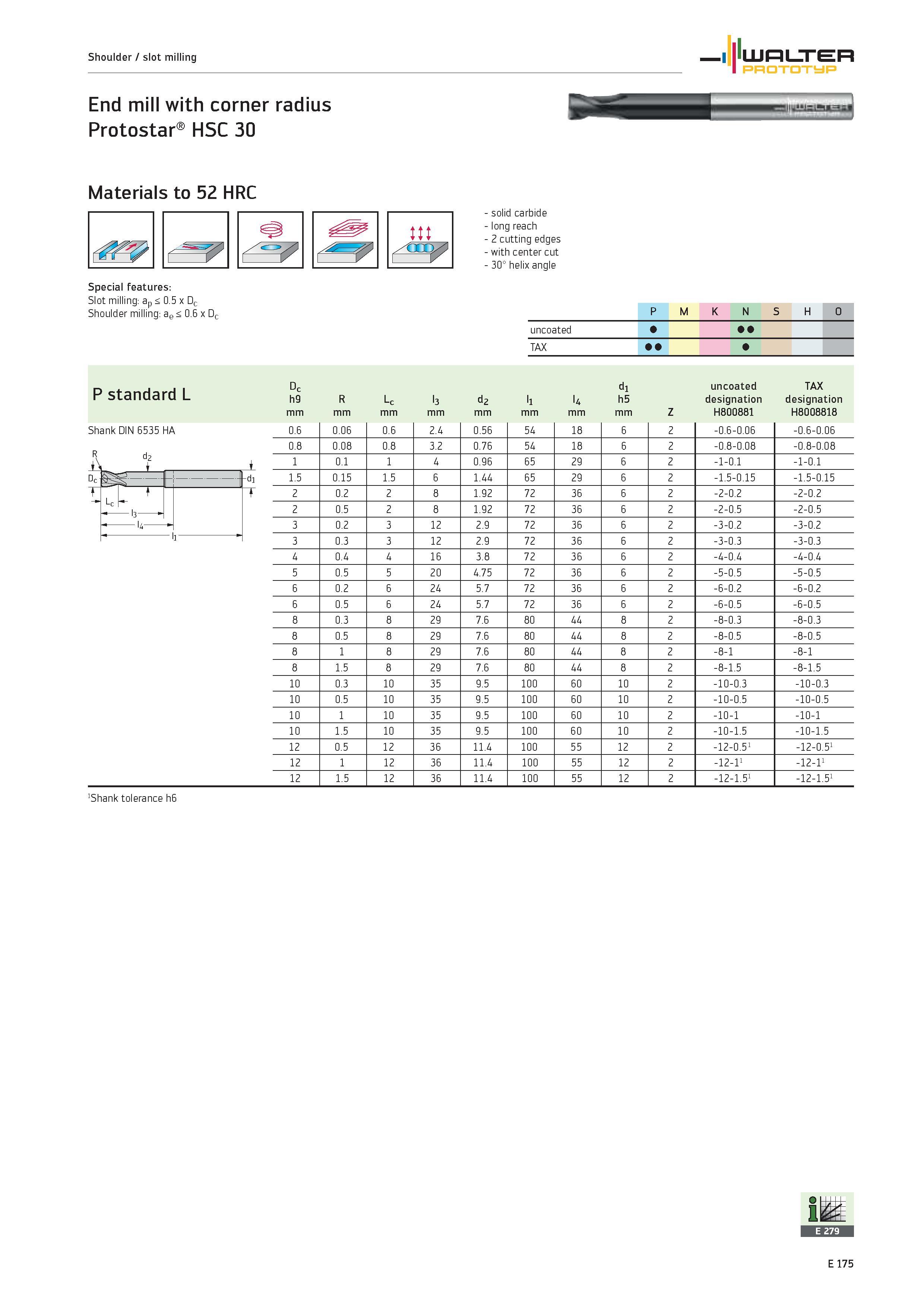

WALTER PROTOTUP Shoulder / slot milling End mill with corner radius Protostar HSC 30 Materials to 52 HRC Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.6 x Dc solid carbide long reach 2 cutting edges with center cut 30° helix angle P M S z H O uncoated TAX Dc dj uncoated TAX h9 R Lc l3 d2 lj U h5 designation designation mm Z H800881 H8008818 Shank DIN 6535 HA 0.6 0.06 0.6 2.4 0.56 54 18 6 2 -0.6-0.06 -0.6-0.06 0.8 0.08 0.8 3.2 0.76 54 18 6 2 -0.8-0.08 -0.8-0.08 Dc d2 1 0.1 1 4 0.96 65 29 6 2 -1-0.1 -1-0.1 h j -d 1.5 0.15 1.5 6 1.44 65 29 6 2 -1.5-0.15 -1.5-0.15 t Lc k T 2 0.2 2 8 1.92 72 36 6 2 -2-0.2 -2-0.2 2 0.5 2 8 1.92 72 36 6 2 -2-0.5 -2-0.5 l4 3 0.2 3 12 2.9 72 36 6 2 -3-0.2 -3-0.2 ll 3 0.3 3 12 2.9 72 36 6 2 -3-0.3 -3-0.3 4 0.4 4 16 3.8 72 36 6 2 -4-0.4 -4-0.4 5 0.5 5 20 4.75 72 36 6 2 -5-0.5 -5-0.5 6 0.2 6 24 5.7 72 36 6 2 -6-0.2 -6-0.2 6 0.5 6 24 5.7 72 36 6 2 -6-0.5 -6-0.5 8 0.3 8 29 7.6 80 44 8 2 -8-0.3 -8-0.3 8 0.5 8 29 7.6 80 44 8 2 -8-0.5 -8-0.5 8 1 8 29 7.6 80 44 8 2 -8-1 -8-1 8 1.5 8 29 7.6 80 44 8 2 -8-1.5 -8-1.5 10 0.3 10 35 9.5 100 60 10 2 -10-0.3 -10-0.3 10 0.5 10 35 9.5 100 60 10 2 -10-0.5 -10-0.5 10 1 10 35 9.5 100 60 10 2 -10-1 -10-1 10 1.5 10 35 9.5 100 60 10 2 -10-1.5 -10-1.5 12 0.5 12 36 11.4 100 55 12 2 -12-0.51 -12-0.51 12 1 12 36 11.4 100 55 12 2 -12-11 -12-11 12 1.5 12 36 11.4 100 55 12 2 -12-1.51 -12-1.51 Shank tolerance h6 E 175
