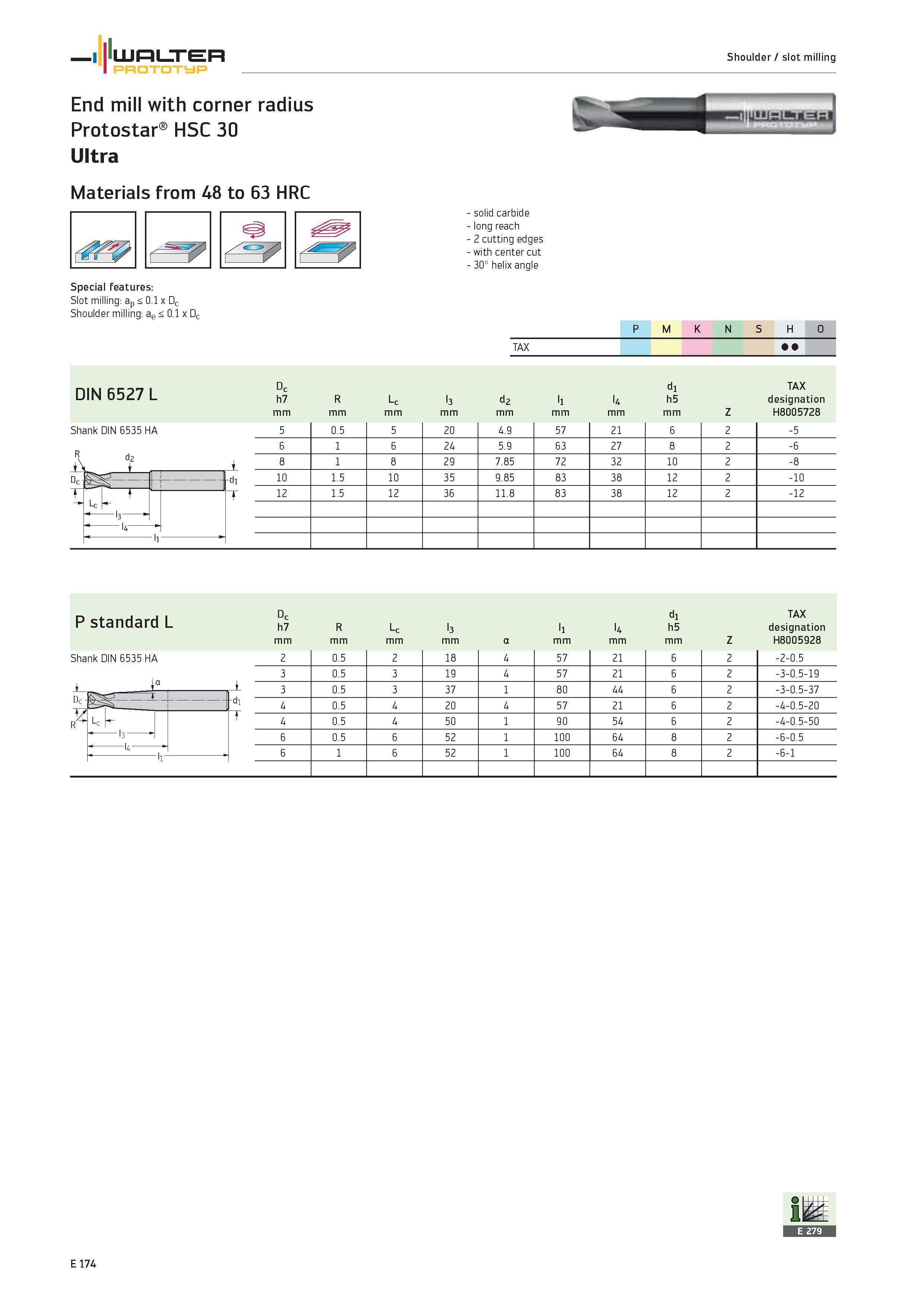

WALTER PROTOTYP Shoulder / slot milling End mill with corner radius Protostar HSC 30 Ultra Materials from 48 to 63 HRC Special features Slot milling ap < 0.1 x Dc Shoulder milling ae < 0.1 x Dc solid carbide long reach 2 cutting edges with center cut 30° helix angle 1 P M K N S H 0 TAX 1 DIN 6527 L Dc h7 R Lc l3 d2 ll l4 m dh TAX designation mm Z H8005728 Shank DIN 6535 HA 5 0.5 5 20 4.9 57 21 6 2 -5 6 1 6 24 5.9 63 27 8 2 -6 8 1 8 29 7.85 72 32 10 2 -8 10 1.5 10 35 9.85 83 38 12 2 -10 12 1.5 12 36 11.8 83 38 12 2 -12 P standard L Shank DIN 6535 HA 10 TAX R' i ii h7 R Lc l3 ll l4 h5 designation mm a mm Z H8005928 2 0.5 2 18 4 57 21 6 2 -2-0.5 3 0.5 3 19 4 57 21 6 2 -3-0.5-19 3 0.5 3 37 1 80 44 6 2 -3-0.5-37 4 0.5 4 20 4 57 21 6 2 -4-0.5-20 4 0.5 4 50 1 90 54 6 2 -4-0.5-50 6 0.5 6 52 1 100 64 8 2 -6-0.5 6 1 6 52 1 100 64 8 2 -6-1 D c E 174
