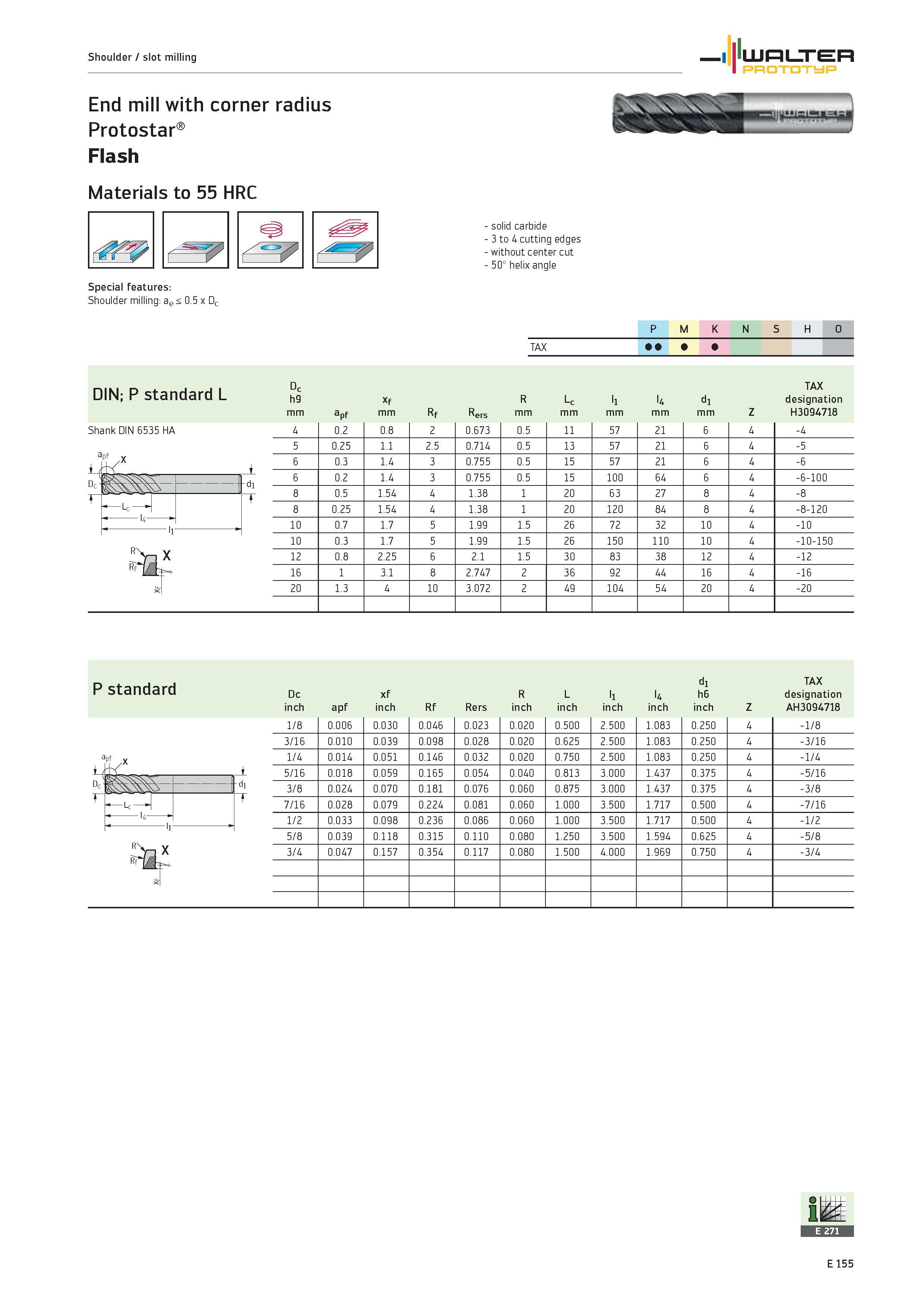

Shoulder / slot milling WALTER PROTOTYP End mill with corner radius Protostar Flash Materials to 55 HRC Special features Shoulder milling ae < 0.5 x Dc solid carbide 3 to 4 cutting edges without center cut 50° helix angle 1 P M K N S H O TAX 1 DIN P standard L TAX h9 mm apf Xf mm Rf Rers R mm Lc mm ll mm U mm dl mm Z designation H3094718 4 0.2 0.8 2 0.673 0.5 11 57 21 6 4 -4 5 0.25 1.1 2.5 0.714 0.5 13 57 21 6 4 -5 6 0.3 1.4 3 0.755 0.5 15 57 21 6 4 -6 6 0.2 1.4 3 0.755 0.5 15 100 64 6 4 -6-100 8 0.5 1.54 4 1.38 1 20 63 27 8 4 -8 8 0.25 1.54 4 1.38 1 20 120 84 8 4 -8-120 10 0.7 1.7 5 1.99 1.5 26 72 32 10 4 -10 10 0.3 1.7 5 1.99 1.5 26 150 110 10 4 -10-150 12 0.8 2.25 6 2.1 1.5 30 83 38 12 4 -12 16 1 3.1 8 2.747 2 36 92 44 16 4 -16 20 1.3 4 10 3.072 2 49 104 54 20 4 -20 D c P standard Dc Xf R L ll U dl h6 TAX designation inch apf inch Rf Rers inch inch inch inch inch Z AH3094718 1/8 0.006 0.030 0.046 0.023 0.020 0.500 2.500 1.083 0.250 4 -1/8 3/16 0.010 0.039 0.098 0.028 0.020 0.625 2.500 1.083 0.250 4 -3/16 1/4 0.014 0.051 0.146 0.032 0.020 0.750 2.500 1.083 0.250 4 -1/4 5/16 0.018 0.059 0.165 0.054 0.040 0.813 3.000 1.437 0.375 4 -5/16 3/8 0.024 0.070 0.181 0.076 0.060 0.875 3.000 1.437 0.375 4 -3/8 7/16 0.028 0.079 0.224 0.081 0.060 1.000 3.500 1.717 0.500 4 -7/16 1/2 0.033 0.098 0.236 0.086 0.060 1.000 3.500 1.717 0.500 4 -1/2 5/8 0.039 0.118 0.315 0.110 0.080 1.250 3.500 1.594 0.625 4 -5/8 3/4 0.047 0.157 0.354 0.117 0.080 1.500 4.000 1.969 0.750 4 -3/4
