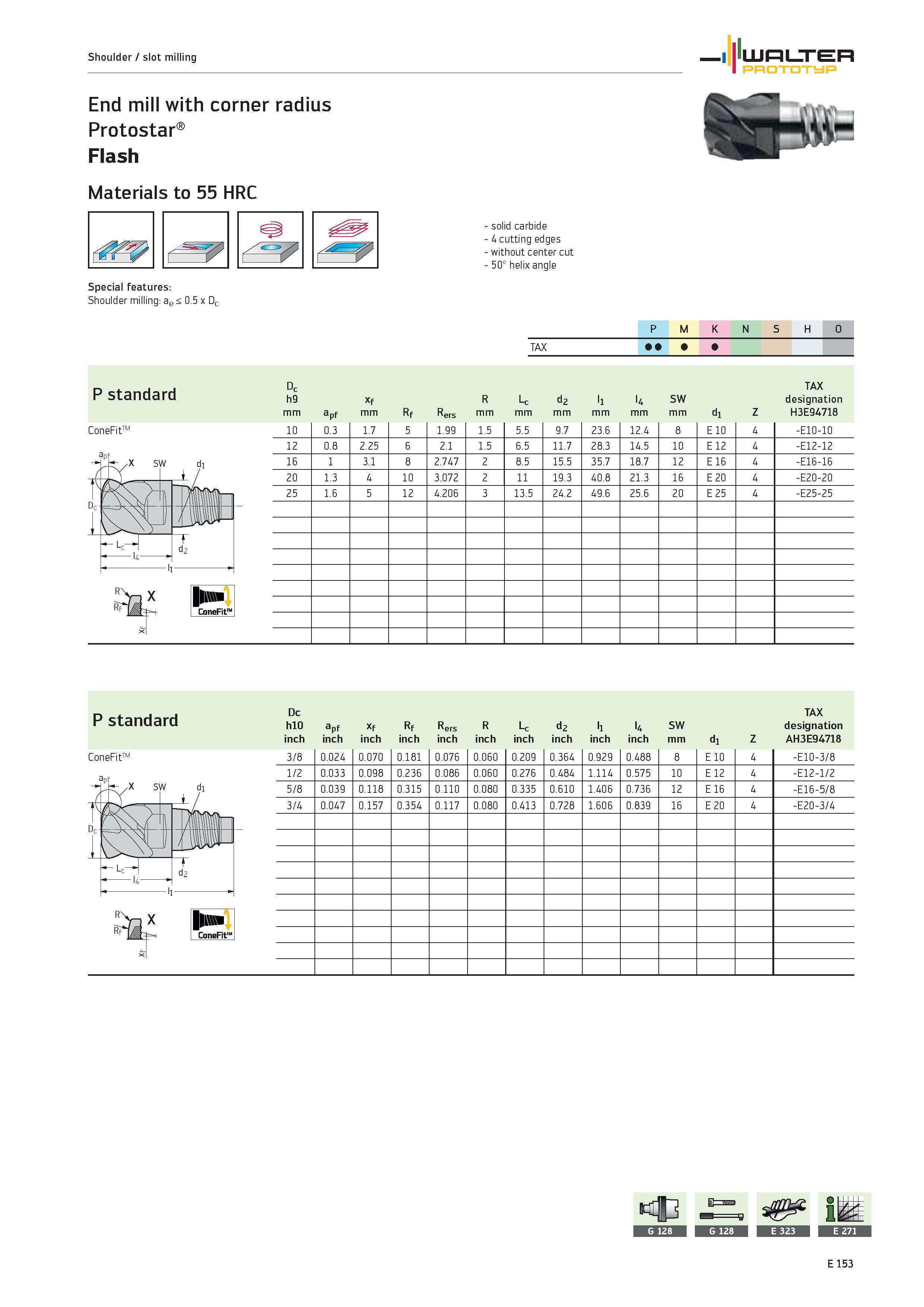

Shoulder / slot milling End mill with corner radius Protostar Flash WALTER PROTOTYP Materials to 55 HRC Special features Shoulder milling ae < 0.5 x Dc ConeFitTM solid carbide 4 cutting edges without center cut 50° helix angle 1 P M K N S H O TAX 1 P standard Dc h9 Xf R Lc d2 li l4 SW TAX designation mm a pf i in ii Rf Rers mm di Z H3E94718 10 0.3 1.7 5 1.99 1.5 5.5 9.7 23.6 12.4 8 E 10 4 -E10-10 12 0.8 2.25 6 2.1 1.5 6.5 11.7 28.3 14.5 10 E 12 4 -E12-12 16 1 3.1 8 2.747 2 8.5 15.5 35.7 18.7 12 E 16 4 -E16-16 20 1.3 4 10 3.072 2 11 19.3 40.8 21.3 16 E 20 4 -E20-20 25 1.6 5 12 4.206 3 13.5 24.2 49.6 25.6 20 E 25 4 -E25-25 P standard Dc h10 inch apf inch Xf inch Rf inch Rers inch R inch Lc inch d2 inch li inch l4 inch SW mm di Z TAX designation AH3E94718 ConeFit 3/8 0.024 0.070 0.181 0.076 0.060 0.209 0.364 0.929 0.488 8 E 10 4 -E10-3/8 1/2 0.033 0.098 0.236 0.086 0.060 0.276 0.484 1.114 0.575 10 E 12 4 -E12-1/2 'K/X SW V di 5/8 0.039 0.118 0.315 0.110 0.080 0.335 0.610 1.406 0.736 12 E 16 4 -E16-5/8 3/4 0.047 0.157 0.354 0.117 0.080 0.413 0.728 1.606 0.839 16 E 20 4 -E20-3/4 Ti lln D / I1IJ T d -i 1 3 X l ConeFit sj
