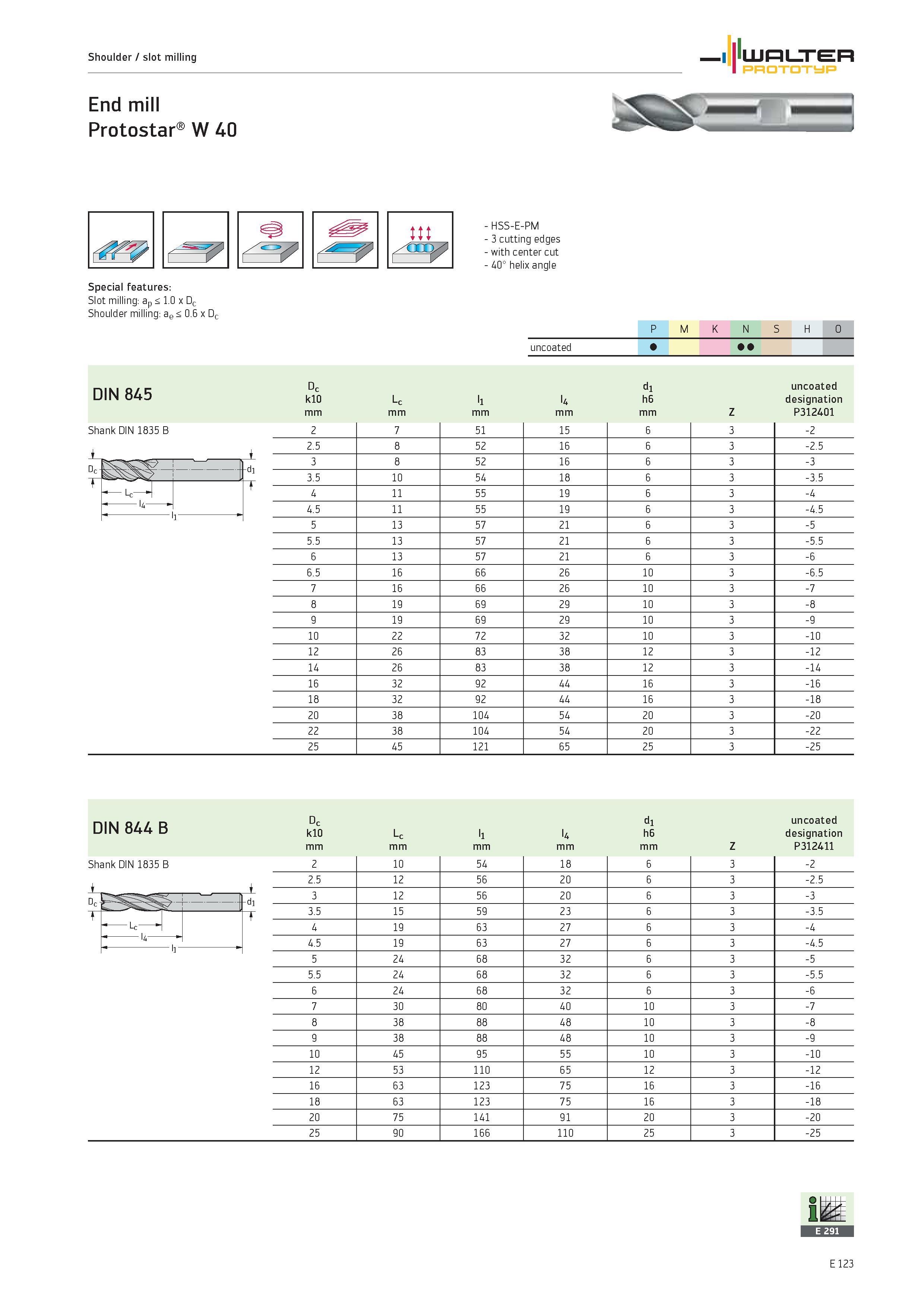

WALTER PROTOTYP Shoulder / slot milling End mill Protostar W 40 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc Shank DIN 1835 B in HSS-E-PM 3 cutting edges with center cut 40° helix angle 1 P M K N S H O uncoated DIN 845 Dc k10 Lc l1 U d1 h6 uncoated designation mm Z P312401 2 7 51 15 6 3 -2 2.5 8 52 16 6 3 -2.5 3 8 52 16 6 3 -3 3.5 10 54 18 6 3 -3.5 4 11 55 19 6 3 -4 4.5 11 55 19 6 3 -4.5 5 13 57 21 6 3 -5 5.5 13 57 21 6 3 -5.5 6 13 57 21 6 3 -6 6.5 16 66 26 10 3 -6.5 7 16 66 26 10 3 -7 8 19 69 29 10 3 -8 9 19 69 29 10 3 -9 10 22 72 32 10 3 -10 12 26 83 38 12 3 -12 14 26 83 38 12 3 -14 16 32 92 44 16 3 -16 18 32 92 44 16 3 -18 20 38 104 54 20 3 -20 22 38 104 54 20 3 -22 25 45 121 65 25 3 -25 DIN 844 B Dc k10 Lc l1 l4 d1 h6 uncoated designation mm Z P312411 Shank DIN 1835 B 2 10 54 18 6 3 -2 2.5 12 56 20 6 3 -2.5 3 12 56 20 6 3 -3 3.5 15 59 23 6 3 -3.5 4 19 63 27 6 3 -4 4.5 19 63 27 6 3 -4.5 5 24 68 32 6 3 -5 5.5 24 68 32 6 3 -5.5 6 24 68 32 6 3 -6 7 30 80 40 10 3 -7 8 38 88 48 10 3 -8 9 38 88 48 10 3 -9 10 45 95 55 10 3 -10 12 53 110 65 12 3 -12 16 63 123 75 16 3 -16 18 63 123 75 16 3 -18 20 75 141 91 20 3 -20 25 90 166 110 25 3 -25 E 123
