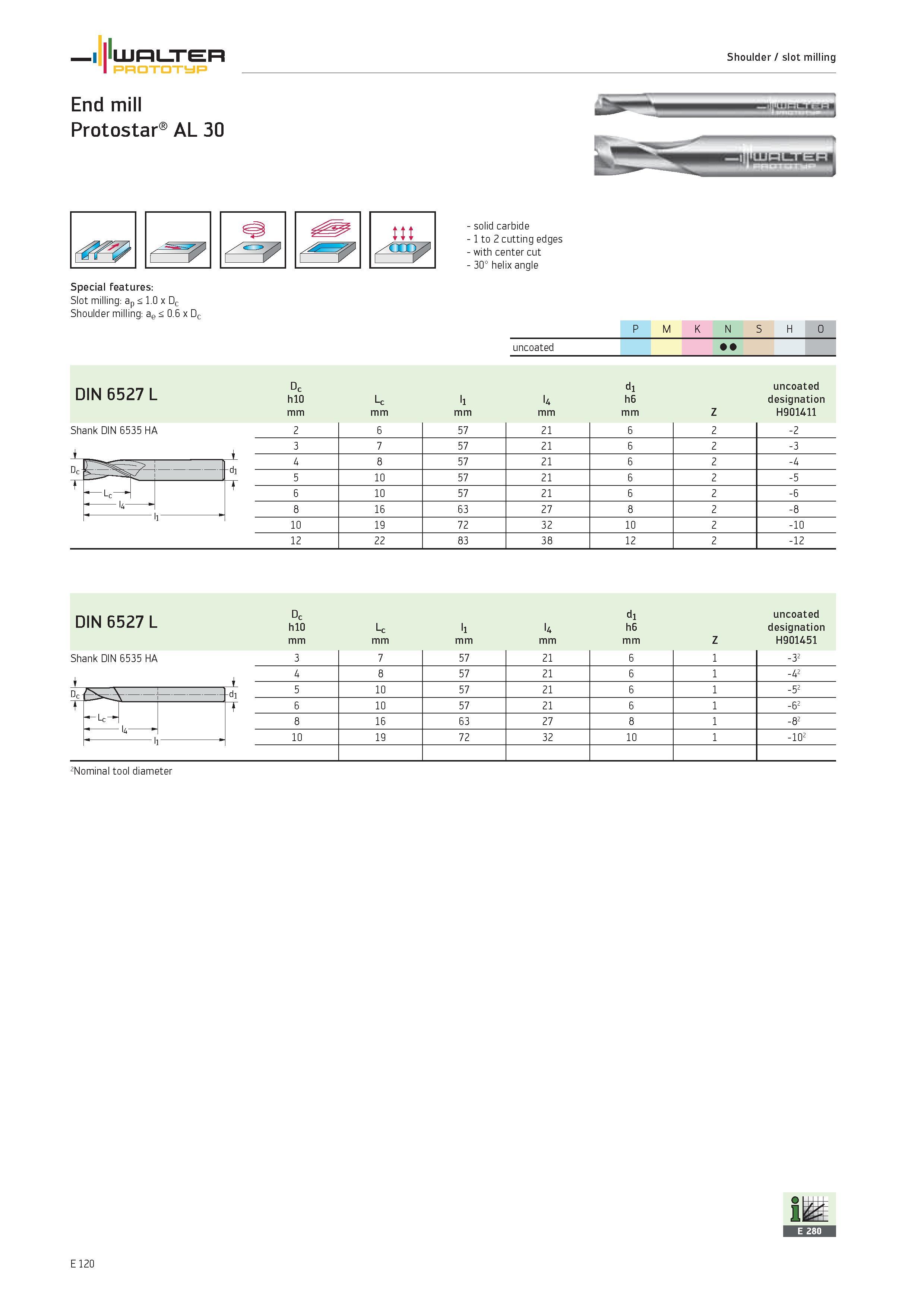

WALTER PROTOTYP Shoulder / slot milling End mill Protostar AL 30 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc Shank DIN 6535 HA -d L + U solid carbide 1 to 2 cutting edges with center cut 30° helix angle 1 P M K N S H O uncoated DIN 6527 L c10 Lc ll U di h6 uncoated designation mm Z H901411 2 6 57 21 6 2 -2 3 7 57 21 6 2 -3 4 8 57 21 6 2 -4 5 10 57 21 6 2 -5 6 10 57 21 6 2 -6 8 16 63 27 8 2 -8 10 19 72 32 10 2 -10 12 22 83 38 12 2 -12 DIN 6527 L Dc h10 Lc l1 U d1 h6 uncoated designation mm Z H901451 Shank DIN 6535 HA d 3 7 57 21 6 1 -32 4 8 57 21 6 1 -42 5 10 57 21 6 1 -52 6 10 57 21 6 1 -62 8 16 63 27 8 1 -82 10 19 72 32 10 1 -102 2Nominal tool diameter O I n E 120 L
