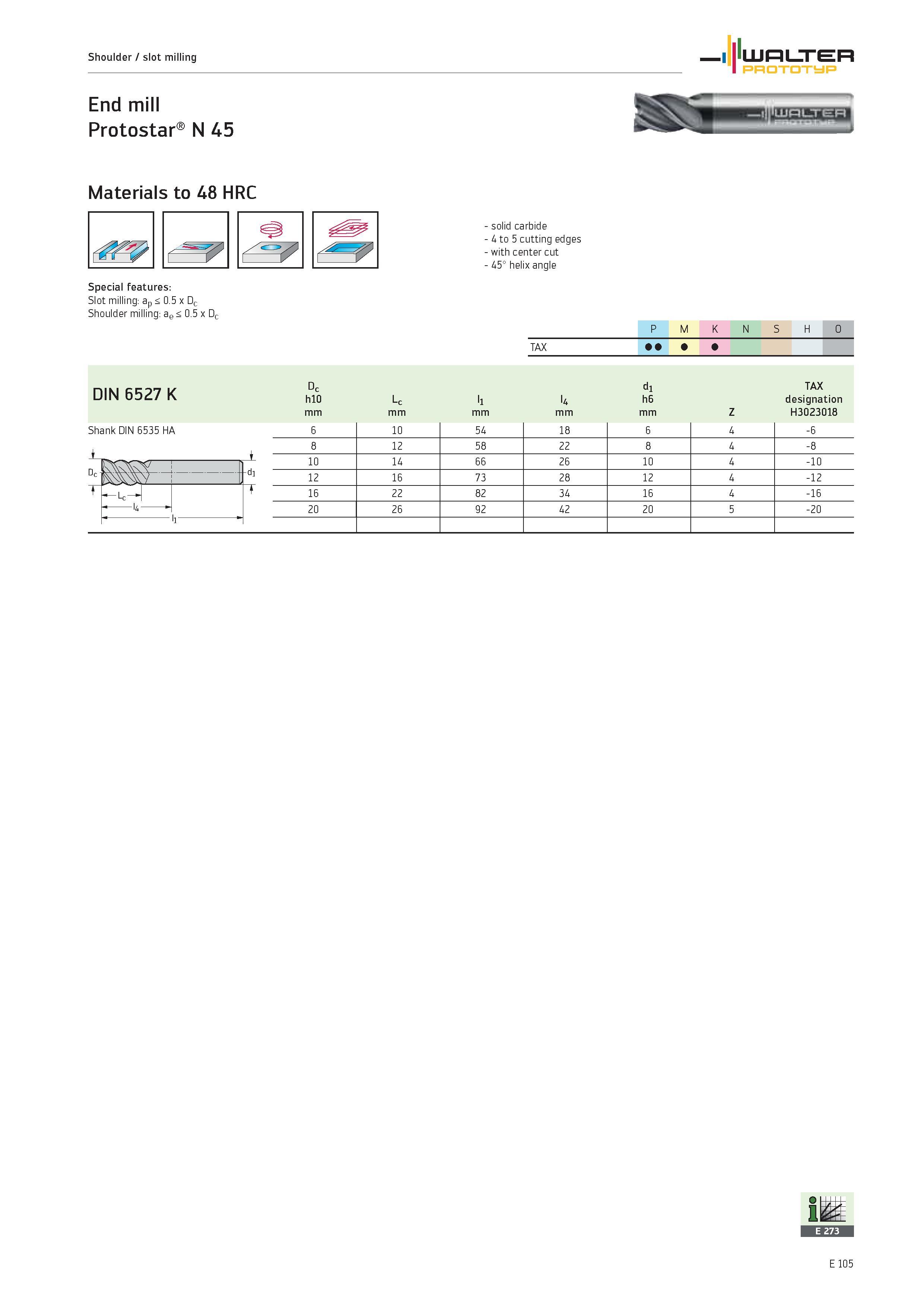

Shoulder / slot milling WALTER PROTOTYP End mill Protostar N 45 Materials to 48 HRC Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.5 x Dc DIN 6527 K Shank DIN 6535 HA solid carbide 4 to 5 cutting edges with center cut 45° helix angle 1 P M K N S H O TAX 1 Dc h10 mm Lc mm l1 mm l4 mm d1 h6 mm Z TAX designation H3023018 6 10 54 18 6 4 -6 8 12 58 22 8 4 -8 10 14 66 26 10 4 -10 12 16 73 28 12 4 -12 16 22 82 34 16 4 -16 20 26 92 42 20 5 -20
