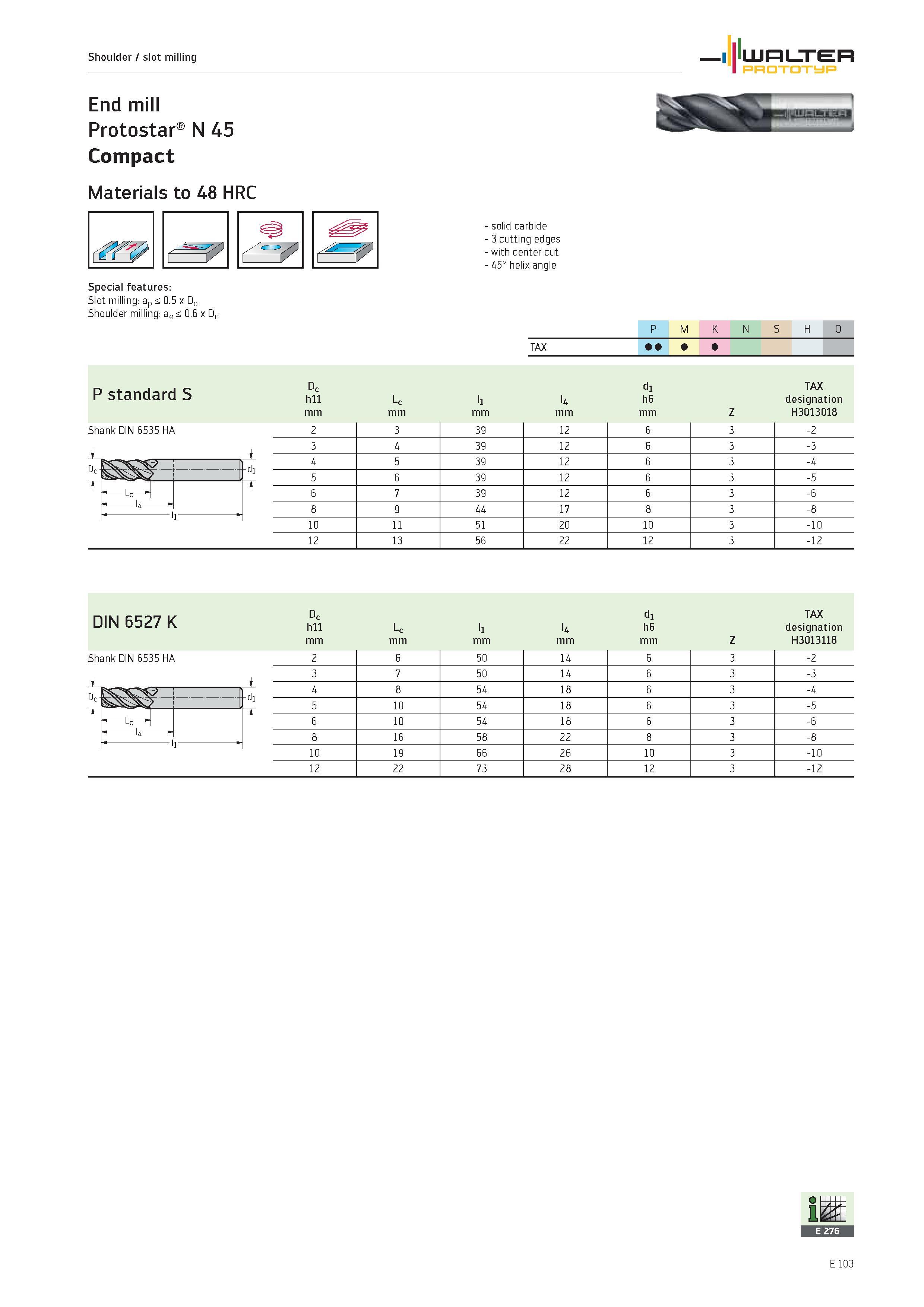

Shoulder / slot milling End mill Protostar N 45 Compact Materials to 48 HRC 7 Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.6 x Dc solid carbide 3 cutting edges with center cut 45° helix angle WALTER PROTOTYP 1 P M K N S H O TAX 1 P standard S Dc h11 mm Lc mm l1 mm l4 mm d1 h6 mm Z TAX designation H3013018 Shank DIN 6535 HA 2 3 39 12 6 3 -2 3 4 39 12 6 3 -3 4 5 6 3 Dc 5 6 39 12 6 3 -5 Lc "\ 6 7 39 12 6 3 -6 8 9 44 17 8 3 -8 10 11 51 20 10 3 -10 12 13 56 22 12 3 -12 DIN 6527 K Dc h11 Lc l1 l4 d1 h6 TAX designation mm Z H3013118 Shank DIN 6535 HA 2 6 50 14 6 3 -2 3 7 50 14 6 3 -3 4 8 54 18 6 3 -4 5 10 54 18 6 3 -5 6 10 54 18 6 3 -6 8 16 58 22 8 3 -8 10 19 66 26 10 3 -10 12 22 73 28 12 3 -12
