1548 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.D420

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. D420 1548 ENG Lab2u

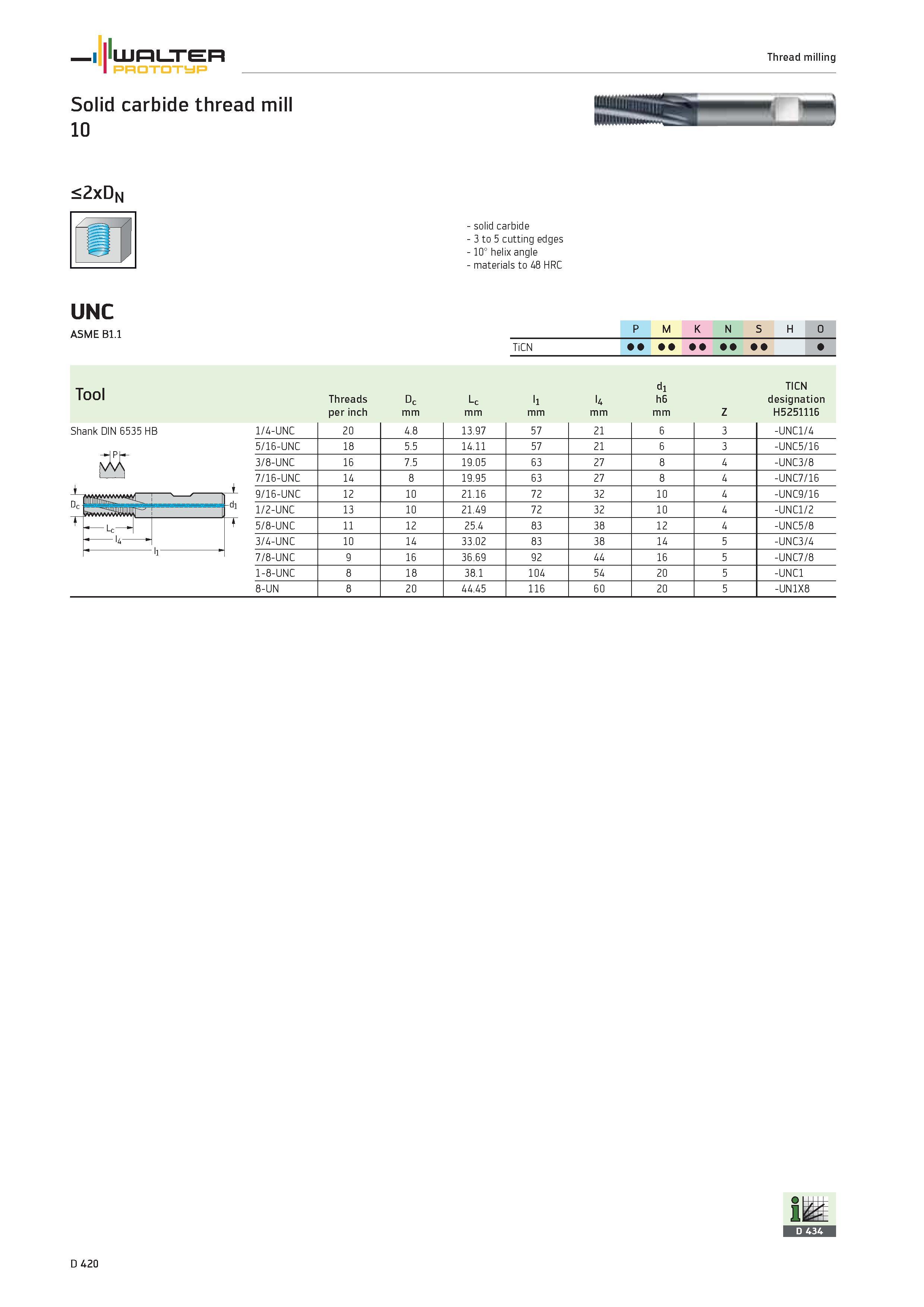

WALTER Prototyp Solid carbide thread mill 10 Thread milling <2xDn solid carbide 3 to 5 cutting edges 10° helix angle materials to 48 HRC UNC ASME Bl.l P M K N S H O TiCN Tool Threads per inch Dc mm Lc mm l1 mm l4 mm d1 h6 mm Z TICN designation H5251116 Shank DIN 6535 HB 1/4-UNC 20 4.8 13.97 57 21 6 3 -UNC1/4 5/16-UNC 18 5.5 14.11 57 21 6 3 -UNC5/16 3/8-UNC 16 7.5 19.05 63 27 8 4 -UNC3/8 II J 7/16-UNC 14 8 19.95 63 27 8 4 -UNC7/16 < 9/16-UNC 12 10 21.16 72 32 10 4 -UNC9/16 Uc -d 1/2-UNC 13 10 21.49 72 32 10 4 -UNC1/2 Lc t 5/8-UNC 11 12 25.4 83 38 12 4 -UNC5/8 1 3/4-UNC 10 14 33.02 83 38 14 5 -UNC3/4 ll 7/8-UNC 9 16 36.69 92 44 16 5 -UNC7/8 1-8-UNC 8 18 38.1 104 54 20 5 -UNC1 8-UN 8 20 44.45 116 60 20 5 -UN1X8
