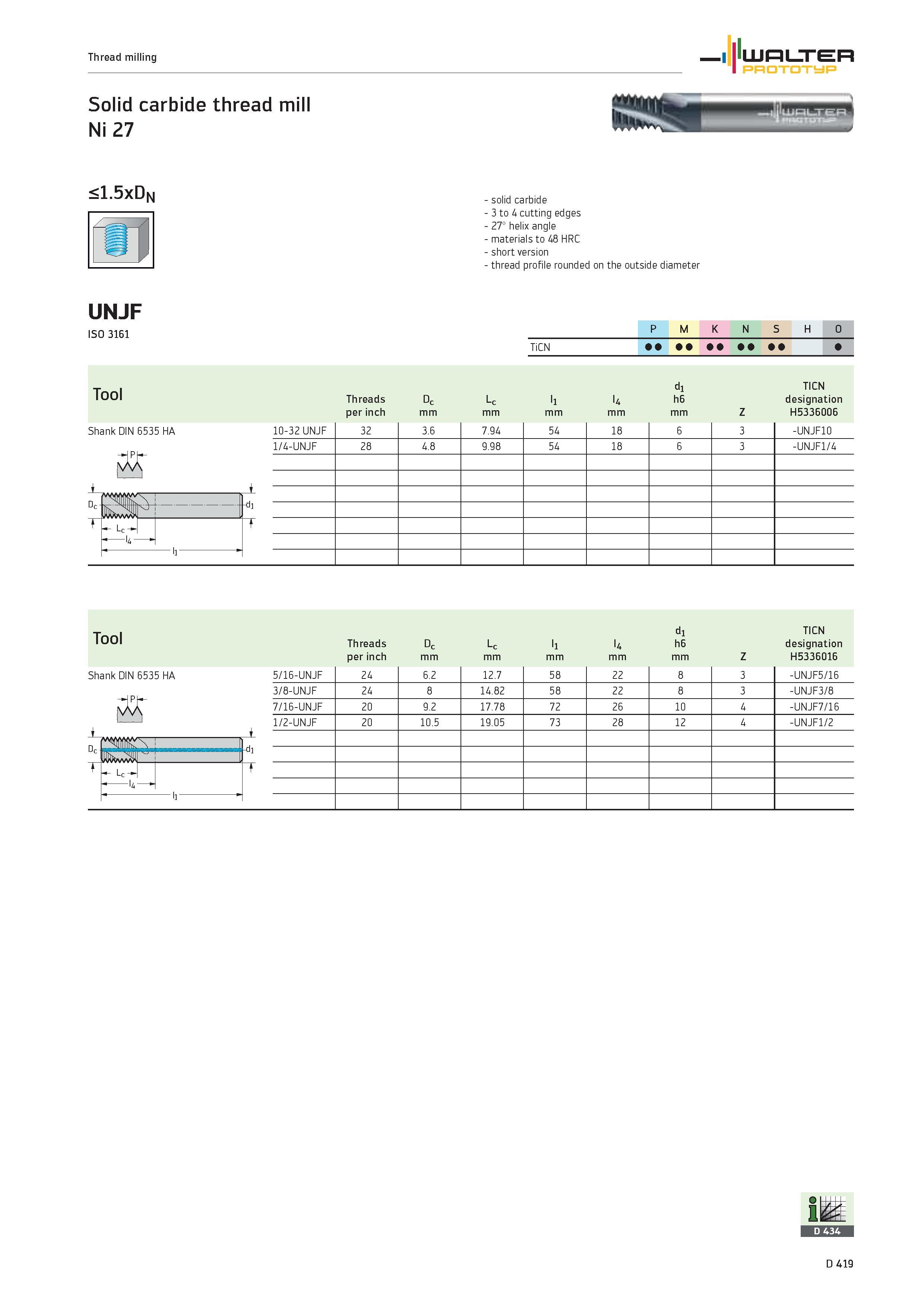

Thread milling WALTER PROTOTYP Solid carbide thread mill Ni 27 <1.5xDn solid carbide 3 to 4 cutting edges 27° helix angle materials to 48 HRC short version thread profile rounded on the outside diameter UNJF ISO 3161 Ip M K N S H O TiCN Tool Threads Dc Lc l1 l4 d1 h6 TICN designation per inch mm Z H5336006 Shank DIN 6535 HA H PH 10-32 UNJF 32 3.6 7.94 54 18 6 3 -UNJF10 1/4-UNJF 28 4.8 9.98 54 18 6 3 -UNJF1/4 DcO L Tool Threads Dc Lc l1 l4 d1 h6 TICN designation per inch mm Z H5336016 Shank DIN 6535 HA Dc t nop t m 14 ll 5/16-UNJF 24 6.2 12.7 58 22 8 3 -UNJF5/16 3/8-UNJF 24 8 14.82 58 22 8 3 -UNJF3/8 7/16-UNJF 20 9.2 17.78 72 26 10 4 -UNJF7/16 1/2-UNJF 20 10.5 19.05 73 28 12 4 -UNJF1/2
