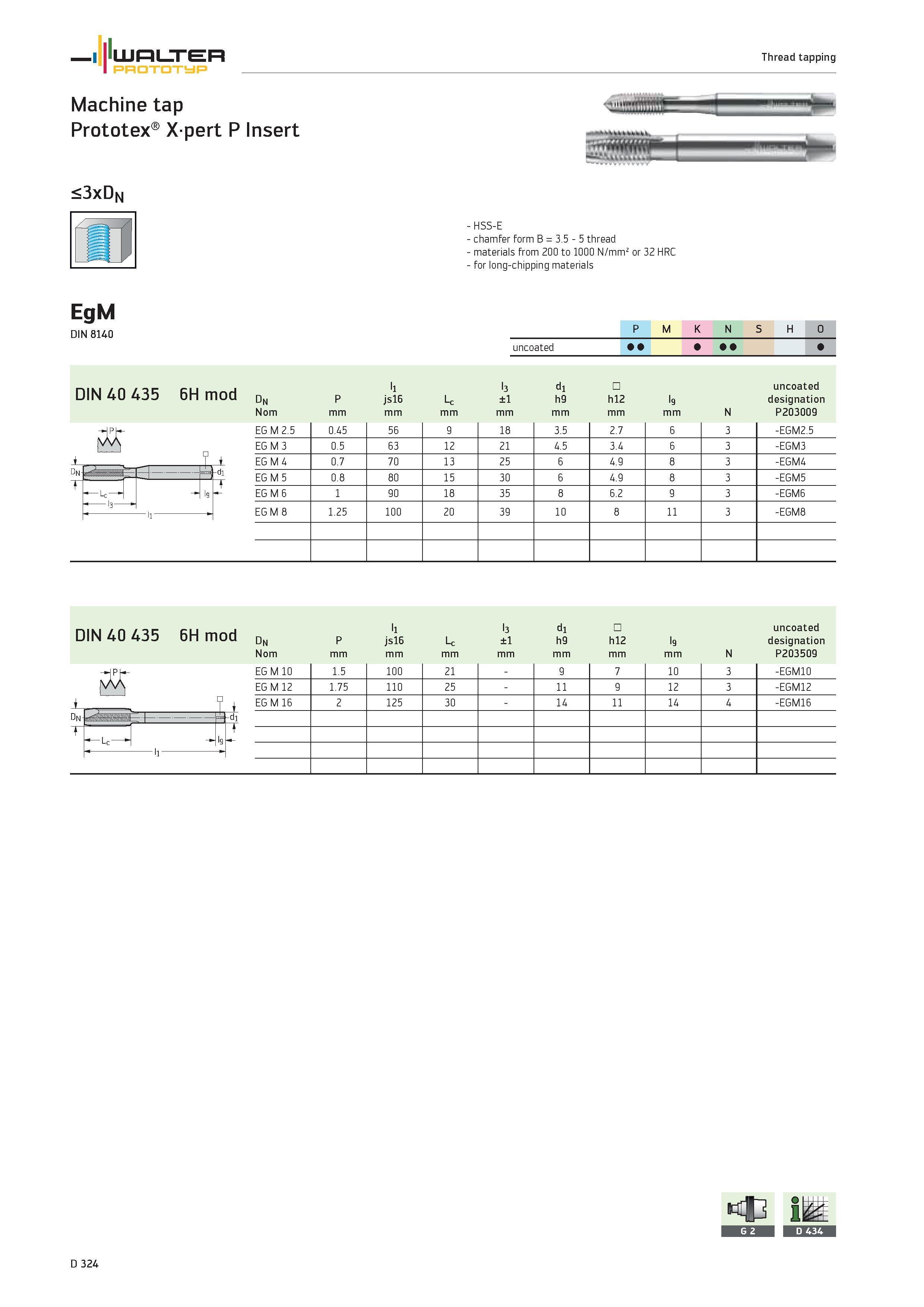

WALTER Prototyp Thread tapping Machine tap Prototex Xpert P Insert <3xDN -HSS-E chamfer form B 3.5 5 thread materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials EgM DIN 8140 P M K N S H O uncoated n.M / n / nr cli a ll l3 di uncoated DIN 40 435 6H m°d Dn P js16 Lc ±1 h9 h12 lg designation Nom mm N P203009 A EG M 2.5 0.45 56 9 18 3.5 2.7 6 3 -EGM2.5 EG M 3 0.5 63 12 21 4.5 3.4 6 3 -EGM3 + 1 EG M 4 0.7 70 13 25 6 4.9 8 3 -EGM4 dN I EG M 5 0.8 80 15 30 6 4.9 8 3 -EGM5 EG M 6 1 90 18 35 8 6.2 9 3 -EGM6 13 EG M 8 1.25 100 20 39 10 8 11 3 -EGM8 DIN 40 435 6H mod Dn P 11 js16 Lc l3 ±1 d1 h9 h12 I9 uncoated designation Nom mm N P203509 1 t Lc ll Is EG M 10 1.5 100 21 9 7 10 3 -EGM10 EG M 12 1.75 110 25 11 9 12 3 -EGM12 EG M 16 2 125 30 14 11 14 4 -EGM16 D 324
