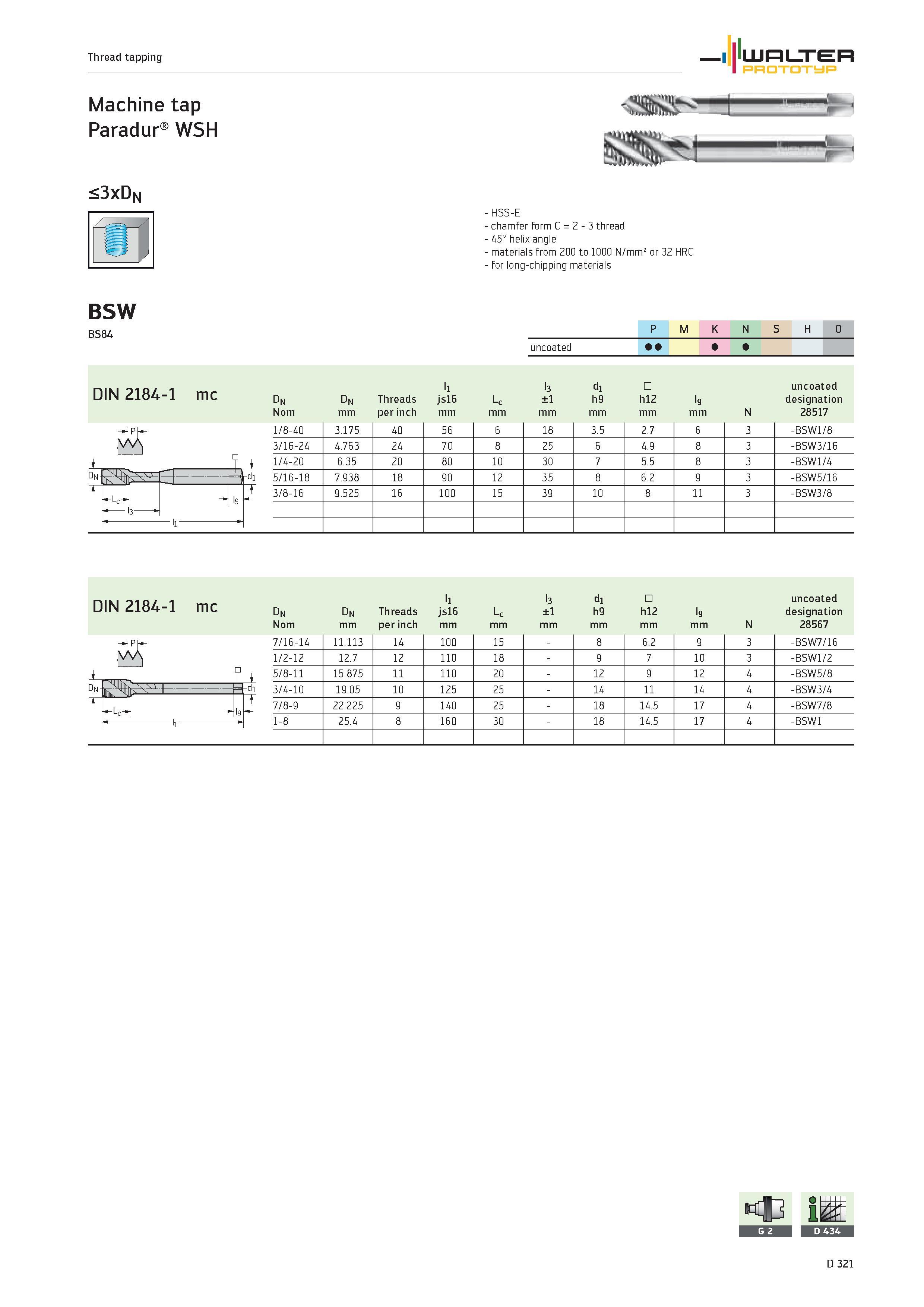

Thread tapping WALTER PROTOTUP Machine tap Paradur WSH <3xDN -HSS-E chamfer form C 2 3 thread 45° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials BSW BS84 P M K N S H O uncoated 1 DIN 2184 -1 mc m z o DN dn mm Threads per inch l1 js16 mm Lc mm 31 m +IE d1 h9 mm h12 mm -9 mm N uncoated designation 28517 1/8-40 3.175 40 56 6 18 3.5 2.7 6 3 -BSW1/8 3/16-24 4.763 24 70 8 25 6 4.9 8 3 -BSW3/16 i 1/4-20 6.35 20 80 10 30 7 5.5 8 3 -BSW1/4 Un H- rdl 5/16-18 7.938 18 90 12 35 8 6.2 9 3 -BSW5/16 l9 + 3/8-16 9.525 16 100 15 39 10 8 11 3 -BSW3/8 3 ll DIN 2184-1 mc Dn Nom Dn mm Threads per inch l1 js16 mm Lc mm 31 m +IE m9 1 h12 mm l9 mm N uncoated designation 28567 z 7/16-14 11.113 14 100 15 8 6.2 9 3 -BSW7/16 1/2-12 12.7 12 110 18 9 7 10 3 -BSW1/2 5/8-11 15.875 11 110 20 12 9 12 4 -BSW5/8 Dn '‘Hit, 3/4-10 19.05 10 125 25 14 11 14 4 -BSW3/4 7/8-9 22.225 9 140 25 18 14.5 17 4 -BSW7/8 li 1-8 25.4 8 160 30 18 14.5 17 4 -BSW1 D 321
