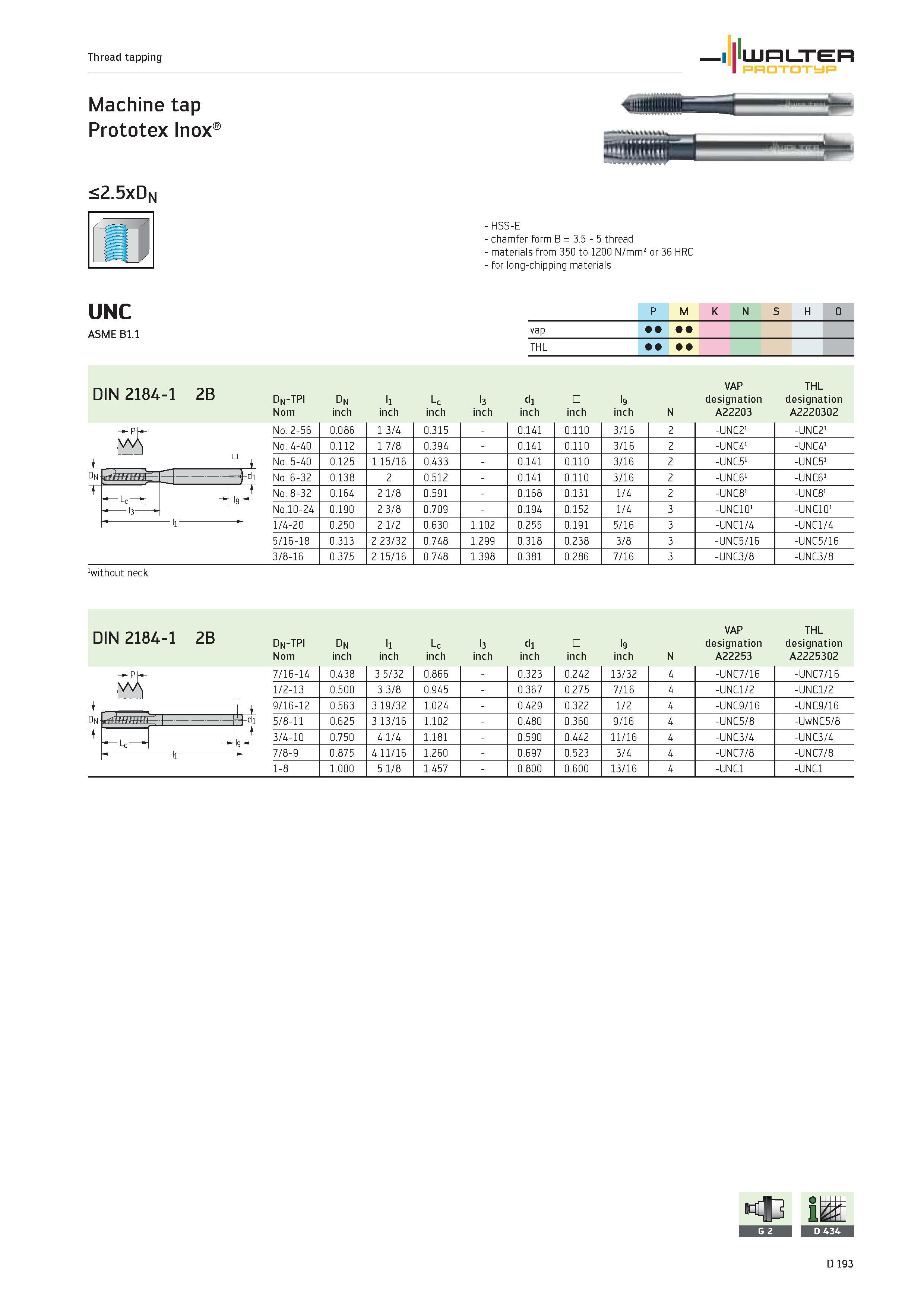

Thread tapping .1 iLum n ER PROTOTYP Machine tap Prototex Inox <2.5xDn -HSS-E chamfer form B 3.5 5 thread materials from 350 to 1200 N/mm2 or 36 HRC for long-chipping materials UNC ASME B1.1 1 P M K N S H O vap 1 THL 1 DIN 2184-1 2B VAP THL dn-tpi dn l1 Lc l3 d1 l9 designation designation Nom inch inch inch inch inch inch inch N A22203 A2220302 No. 2-56 0.086 1 3/4 0.315 0.141 0.110 3/16 2 -UNC2' -UNC21 No. 4-40 0.112 1 7/8 0.394 0.141 0.110 3/16 2 -UNC4' -UNC41 No. 5-40 0.125 1 15/16 0.433 0.141 0.110 3/16 2 -UNC51 -UNC51 No. 6-32 0.138 2 0.512 0.141 0.110 3/16 2 -UNC61 -UNC61 No. 8-32 0.164 2 1/8 0.591 0.168 0.131 1/4 2 -UNC81 -UNC81 No.10-24 0.190 2 3/8 0.709 0.194 0.152 1/4 3 -UNC101 -UNC101 1/4-20 0.250 2 1/2 0.630 1.102 0.255 0.191 5/16 3 -UNC1/4 -UNC1/4 5/16-18 0.313 2 23/32 0.748 1.299 0.318 0.238 3/8 3 -UNC5/16 -UNC5/16 3/8-16 0.375 2 15/16 0.748 1.398 0.381 0.286 7/16 3 -UNC3/8 -UNC3/8 1without neck DIN 2184-1 2B Dn-TPI Nom Dn inch l1 inch Lc inch l3 inch d1 inch inch l9 inch N VAP designation A22253 THL designation A2225302 A z 7/16-14 0.438 3 5/32 0.866 0.323 0.242 13/32 4 -UNC7/16 -UNC7/16 1/2-13 0.500 3 3/8 0.945 0.367 0.275 7/16 4 -UNC1/2 -UNC1/2 2 6- 9/ 0.563 319/32 1.024 0.429 0.322 1/2 4 -UNC9/16 -UNC9/16 Dn f i 5/8-11 0.625 313/16 1.102 0.480 0.360 9/16 4 -UNC5/8 -UwNC5/8 L J 3/4-10 0.750 4 1/4 1.181 0.590 0.442 11/16 4 -UNC3/4 -UNC3/4 ii 7/8-9 0.875 411/16 1.260 0.697 0.523 3/4 4 -UNC7/8 -UNC7/8 1-8 1.000 5 1/8 1.457 0.800 0.600 13/16 4 -UNC1 -UNC1 D 193
