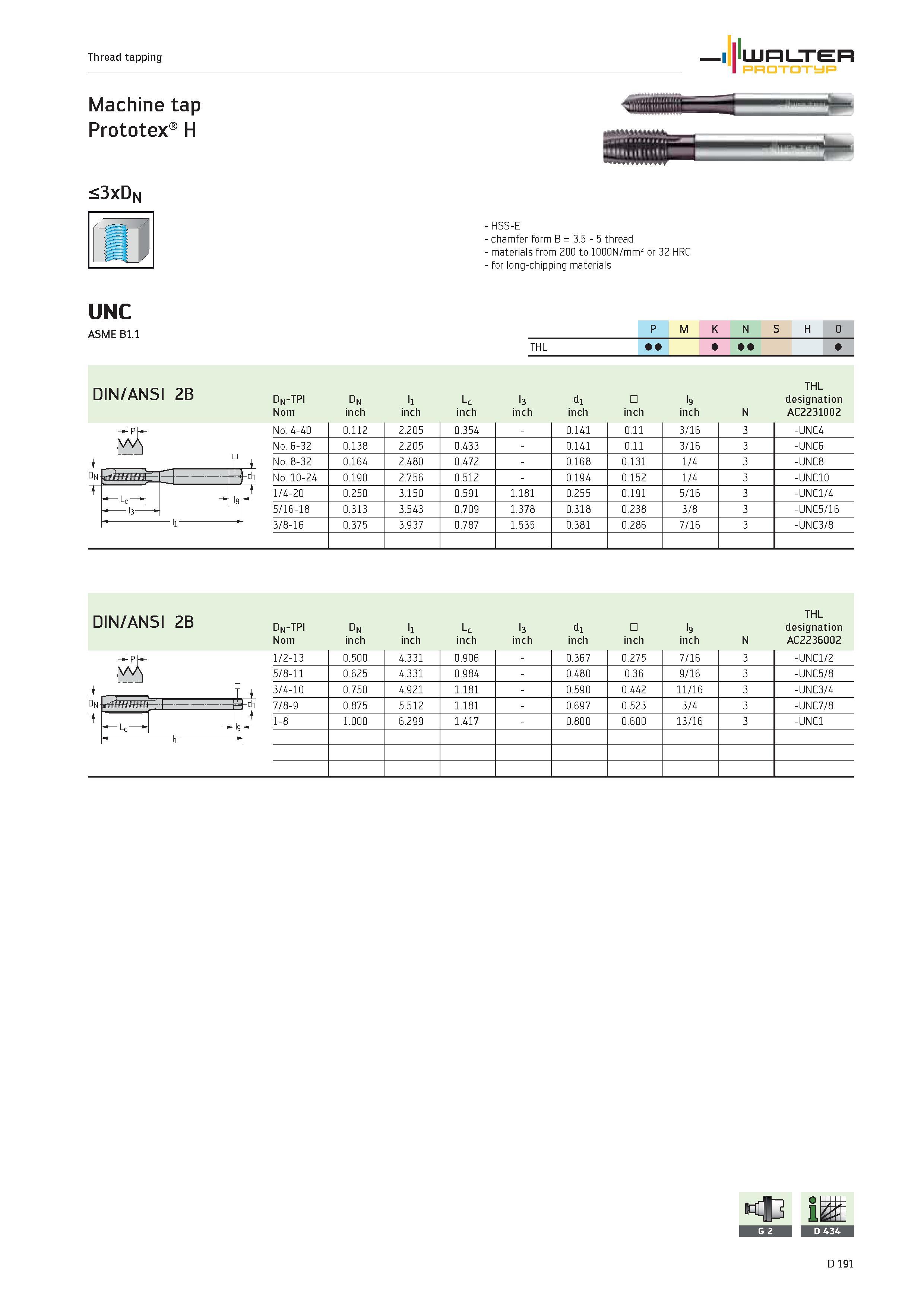

Thread tapping WALTER PROTOTYP Machine tap Prototex H <3xDN HSS-E chamfer form B 3.5 5 thread materials from 200 to 1000N/mm2 or 32 HRC for long-chipping materials UNC ASME B1.1 P M K N S H O THL I DIN/ANSI 2B dn-tpi dn l1 Lc l3 d1 l9 THL designation Nom inch inch inch inch inch inch inch N AC2231002 No. 4-40 0.112 2.205 0.354 0.141 0.11 3/16 3 -UNC4 No. 6-32 0.138 2.205 0.433 0.141 0.11 3/16 3 -UNC6 No. 8-32 0.164 2.480 0.472 0.168 0.131 1/4 3 -UNC8 No. 10-24 0.190 2.756 0.512 0.194 0.152 1/4 3 -UNC10 1/4-20 0.250 3.150 0.591 1.181 0.255 0.191 5/16 3 -UNC1/4 5/16-18 0.313 3.543 0.709 1.378 0.318 0.238 3/8 3 -UNC5/16 3/8-16 0.375 3.937 0.787 1.535 0.381 0.286 7/16 3 -UNC3/8 DIN/ANSI 2B dn-tpi dn l1 Lc l3 d1 l9 THL designation Nom inch inch inch inch inch inch inch N AC2236002 Dn -di Lc ll 1/2-13 0.500 4.331 0.906 0.367 0.275 7/16 3 -UNC1/2 5/8-11 0.625 4.331 0.984 0.480 0.36 9/16 3 -UNC5/8 3/4-10 0.750 4.921 1.181 0.590 0.442 11/16 3 -UNC3/4 7/8-9 0.875 5.512 1.181 0.697 0.523 3/4 3 -UNC7/8 1-8 1.000 6.299 1.417 0.800 0.600 13/16 3 -UNC1 D 191
