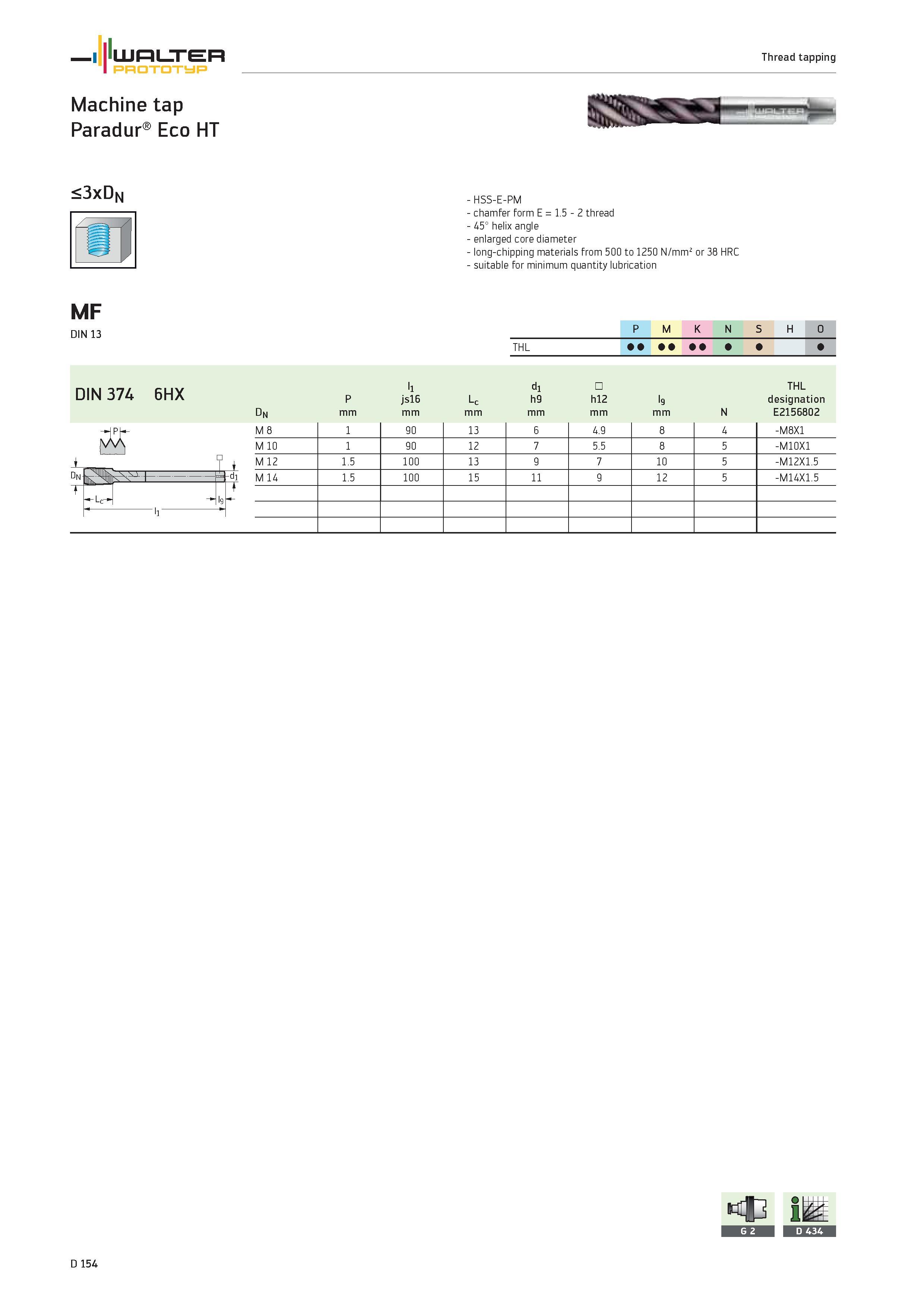

WALTER Thread tapping Prototyp Machine tap Paradur Eco HT <3xDN HSS-E-PM chamfer form E 1.5 2 thread 45° helix angle enlarged core diameter long-chipping materials from 500 to 1250 N/mm2 or 38 HRC suitable for minimum quantity lubrication MF DIN 13 1 P M K N S H O THL DIN 374 6HX dn P mm ll js16 mm Lc mm di h9 mm h12 mm l9 mm N THL designation E2156802 z M 8 1 90 13 6 4.9 8 4 -M8X1 M 10 1 90 12 7 5.5 8 5 -M10X1 + M 12 1.5 100 13 9 7 10 5 -M12X1.5 Mi M 14 1.5 100 15 11 9 12 5 -M14X1.5 L-Lc- T li D 154 iH
