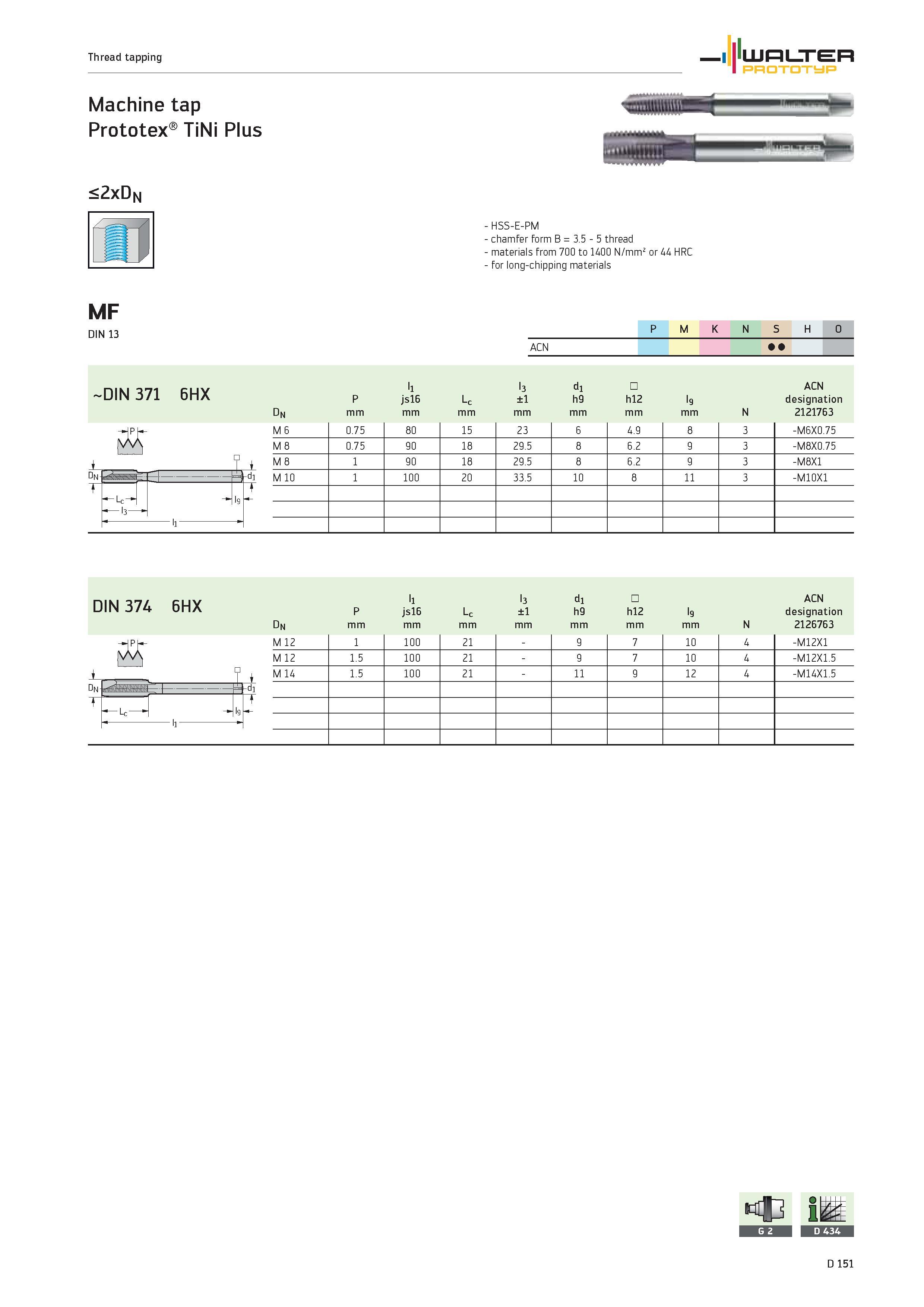

Thread tapping WALTER PROTOTUP Machine tap Prototex TiNi Plus <2xD N HSS-E-PM chamfer form B 3.5 5 thread materials from 700 to 1400 N/mm2 or 44 HRC for long-chipping materials MF DIN 13 P M K N S H O ACN DIN 371 6HX p jSl6 Lc ±1 d9 h 2 l9 designation Dn mm N 2121763 “HP h" M 6 0.75 80 15 23 6 4.9 8 3 -M6X0.75 Z M 8 0.75 90 18 29.5 8 6.2 9 3 -M8X0.75 M 8 1 90 18 29.5 8 6.2 9 3 -M8X1 Dn T tdmmmP ff rdl M 10 1 100 20 33.5 10 8 11 3 -M10X1 -Lc-f is T r ii DIN 374 6HX P l1 js16 Lc l3 ±1 d1 h9 h12 l9 ACN designation Dn mm N 2126763 Dn r+di 1 f Lc ii is M 12 1 100 21 9 7 10 4 -M12X1 M 12 1.5 100 21 9 7 10 4 -M12X1.5 M 14 1.5 100 21 11 9 12 4 -M14X1.5 D 151
