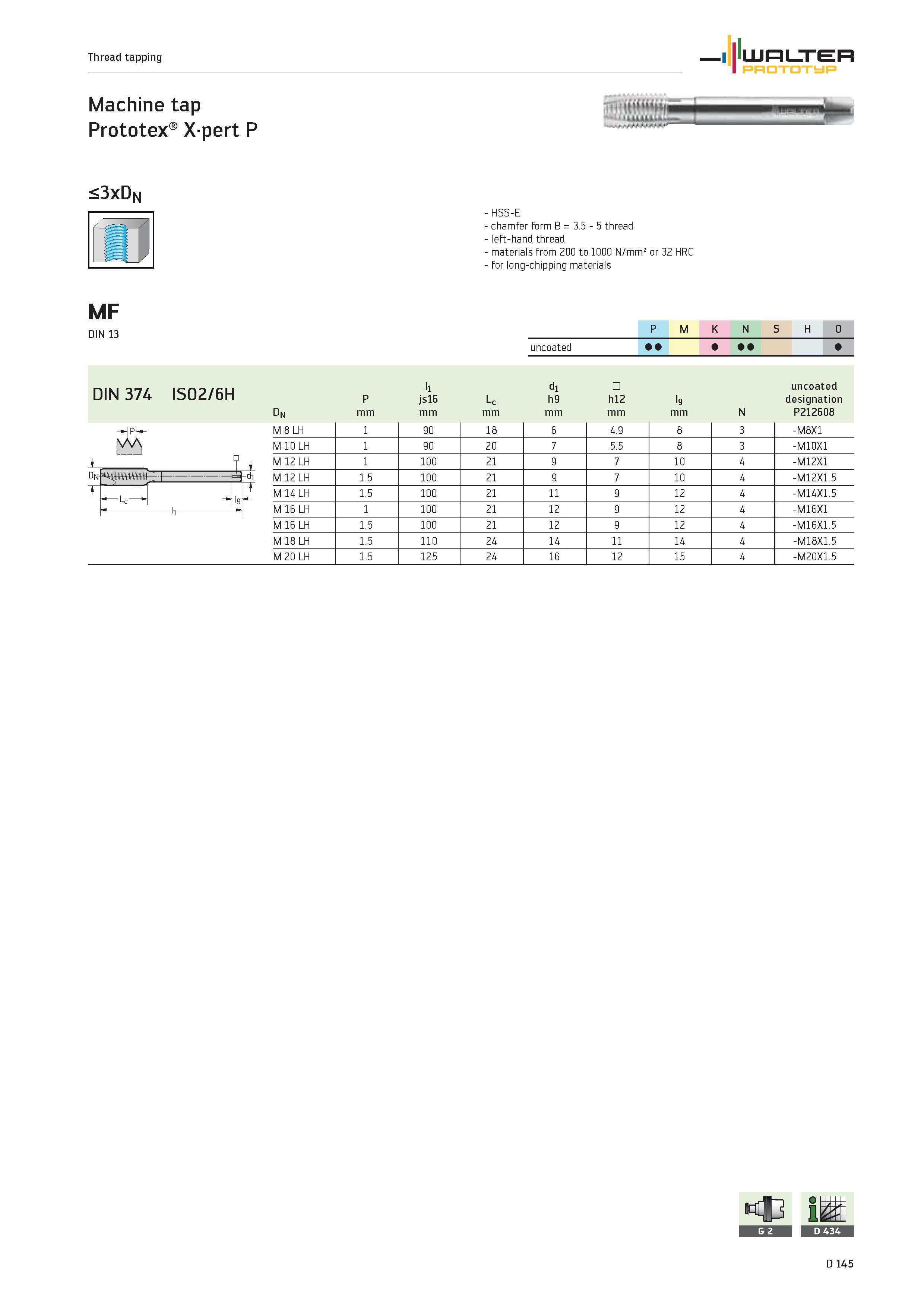

Thread tapping WALTER PROTOTYP Machine tap Prototex Xpert P <3xDN HSS-E chamfer form B 3.5 5 thread left-hand thread materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials MF DIN 13 P M K N S H O uncoated DIN 374 ISO2/6H dn P mm ll js16 mm Lc mm di h9 mm h12 mm l9 mm N uncoated designation P212608 z -L M 8 LH 1 90 18 6 4.9 8 3 -M8X1 M 10 LH 1 90 20 7 5.5 8 3 -M10X1 M 12 LH 1 100 21 9 7 10 4 -M12X1 Dn i r L M 12 LH 1.5 100 21 9 7 10 4 -M12X1.5 + T M 14 LH 1.5 100 21 11 9 12 4 -M14X1.5 ii M 16 LH 1 100 21 12 9 12 4 -M16X1 M 16 LH 1.5 100 21 12 9 12 4 -M16X1.5 M 18 LH 1.5 110 24 14 11 14 4 -M18X1.5 M 20 LH 1.5 125 24 16 12 15 4 -M20X1.5 D 145
