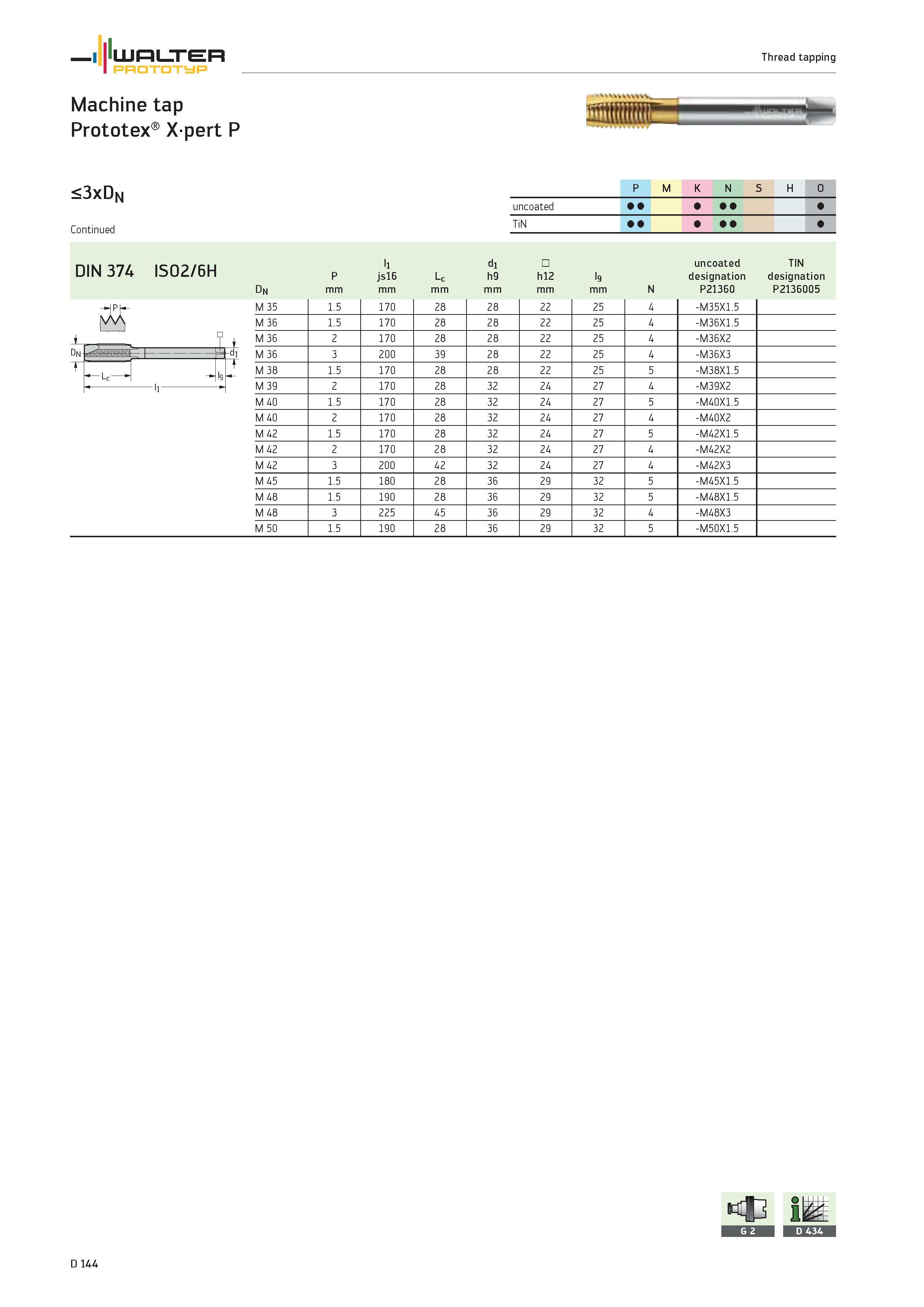

WALTER Prototyp Machine tap Prototex Xpert P Thread tapping <3xDN P M K N S H O uncoated I TiN I C DIN 374 ISO2/6H Dn P mm l1 js16 mm Lc mm d1 h9 mm h12 mm l9 mm N uncoated designation P21360 TIN designation P2136005 A Z M 35 1.5 170 28 28 22 25 4 -M35X1.5 M 36 1.5 170 28 28 22 25 4 -M36X1.5 i M 36 2 170 28 28 22 25 4 -M36X2 Dn ifimmtlmnmtmtmtt r M 36 3 200 39 28 22 25 4 -M36X3 + f M 38 1.5 170 28 28 22 25 5 -M38X1.5 ll M 39 2 170 28 32 24 27 4 -M39X2 M 40 1.5 170 28 32 24 27 5 -M40X1.5 M 40 2 170 28 32 24 27 4 -M40X2 M 42 1.5 170 28 32 24 27 5 -M42X1.5 M 42 2 170 28 32 24 27 4 -M42X2 M 42 3 200 42 32 24 27 4 -M42X3 M 45 1.5 180 28 36 29 32 5 -M45X1.5 M 48 1.5 190 28 36 29 32 5 -M48X1.5 M 48 3 225 45 36 29 32 4 -M48X3 M 50 1.5 190 28 36 29 32 5 -M50X1.5 D 144 iH
