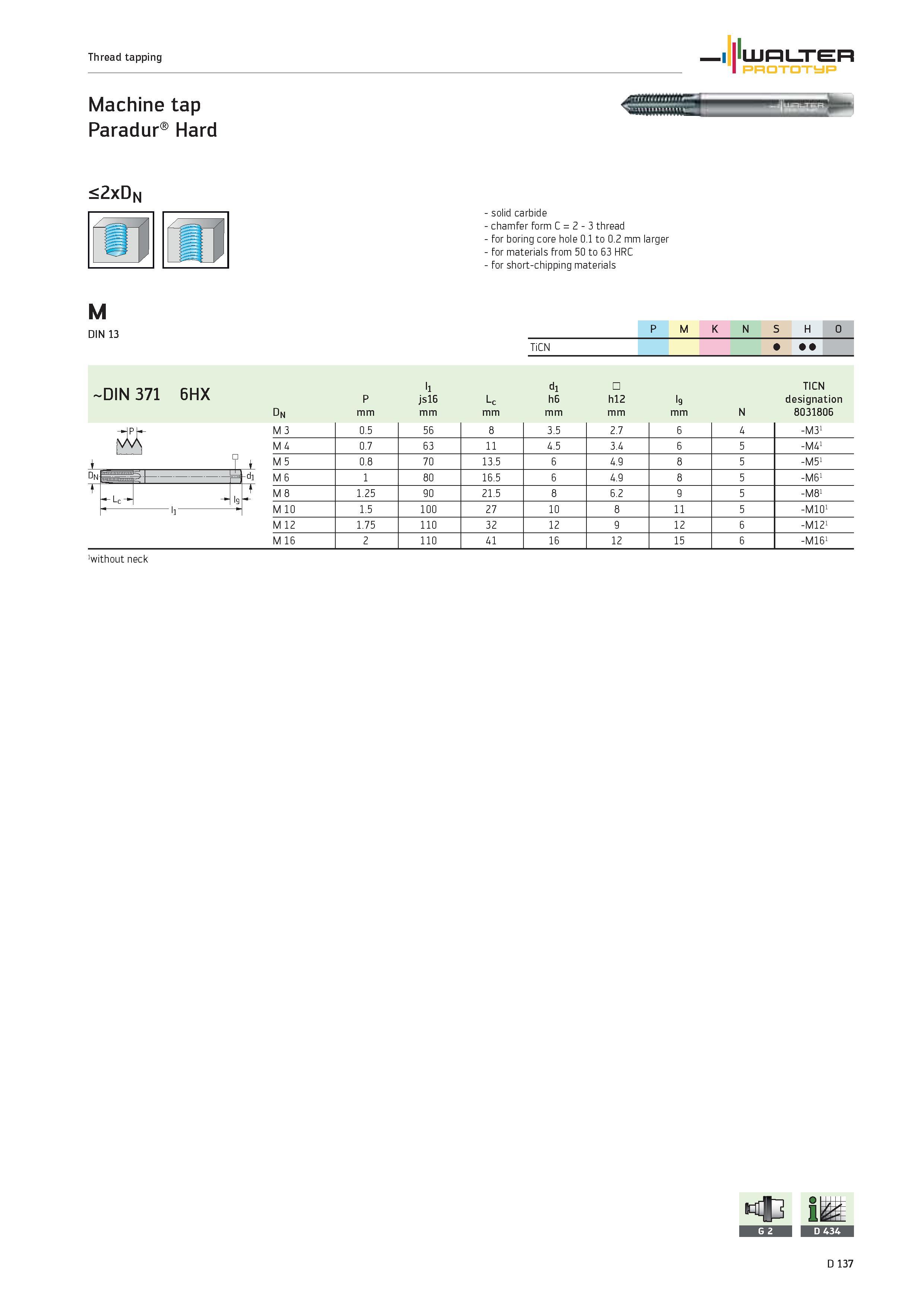

Thread tapping WALTER PROTOTYP Machine tap Paradur Hard <2xDN solid carbide chamfer form C 2 3 thread for boring core hole 0.1 to 0.2 mm larger for materials from 50 to 63 HRC for short-chipping materials M DIN 13 P M K N S H O TiCN -DIN 371 6HX p mm ll js16 mm -c mm di h6 h12 mm l9 mm TICN designation 8031806 "1F h M 3 0.5 56 8 3.5 2.7 6 4 -M31 v\ 5 M 4 0.7 63 11 4.5 3.4 6 5 -M41 1 M 5 0.8 70 13.5 6 4.9 8 5 -M51 Dn pi M 6 1 80 16.5 6 4.9 8 5 -M61 Lc l9 1 M 8 1.25 90 21.5 8 6.2 9 5 -M81 M 10 1.5 100 27 10 8 11 5 -M101 ll M 12 1.75 110 32 12 9 12 6 -M121 M 16 2 110 41 16 12 15 6 -M161 1without neck D N mm N D 137
