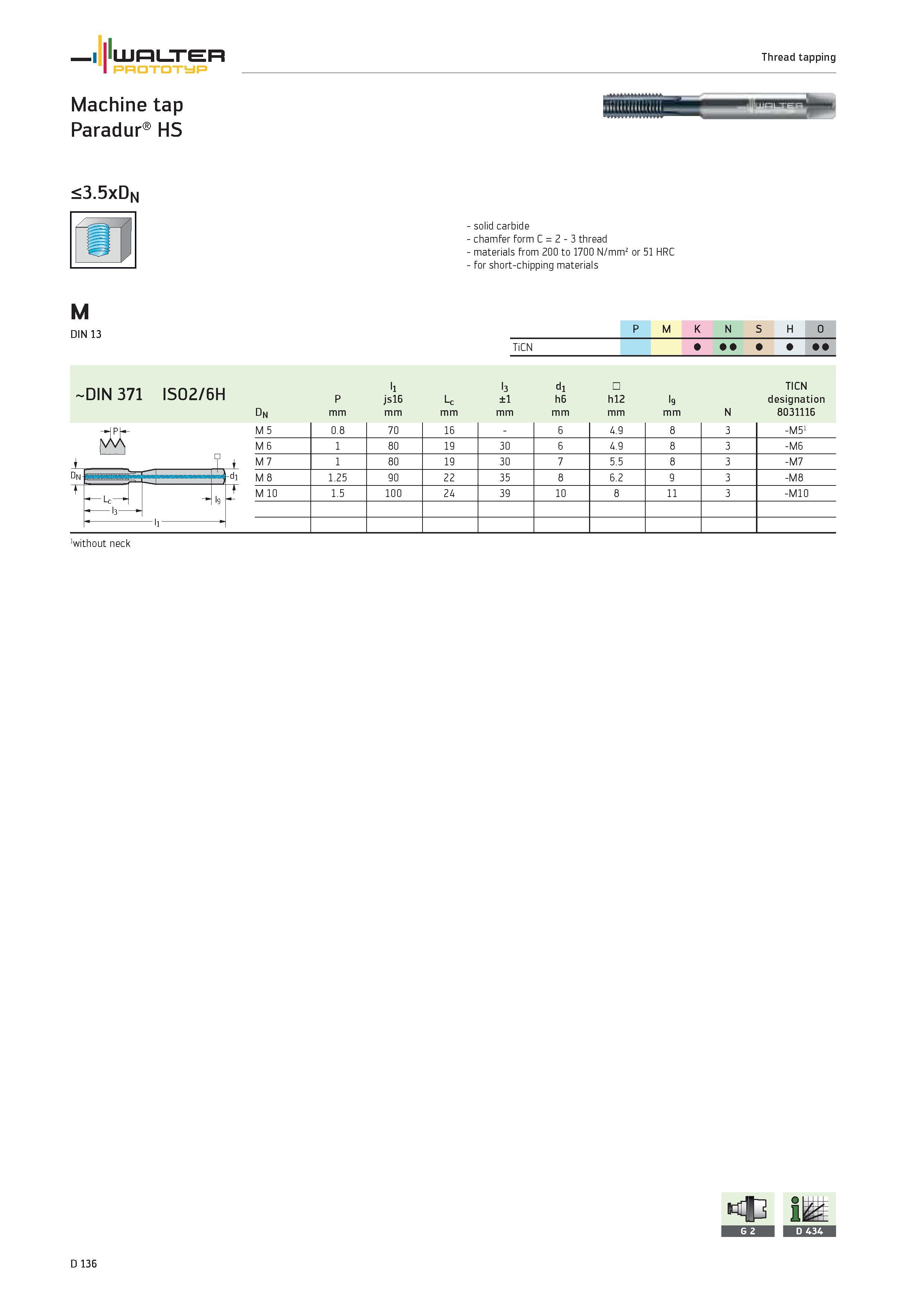

WALTER PROTOTYP Thread tapping Machine tap Paradur HS <3.5xDn solid carbide chamfer form C 2 3 thread materials from 200 to 1700 N/mm2 or 51 HRC for short-chipping materials 11111111 M DIN 13 P M K N S H 1° TiCN DIN 371 ISO2/6H Dn P mm ll js16 mm Lc mm l3 ±1 mm 16 m dhm h12 mm l9 mm N TICN designation 8031116 M 5 0.8 70 16 6 4.9 8 3 -M51 M 6 1 80 19 30 6 4.9 8 3 -M6 + M 7 1 80 19 30 7 5.5 8 3 -M7 Un l-di M 8 1.25 90 22 35 8 6.2 9 3 -M8 1 n ls t M 10 1.5 100 24 39 10 8 11 3 -M10 ll 1without neck D 136
