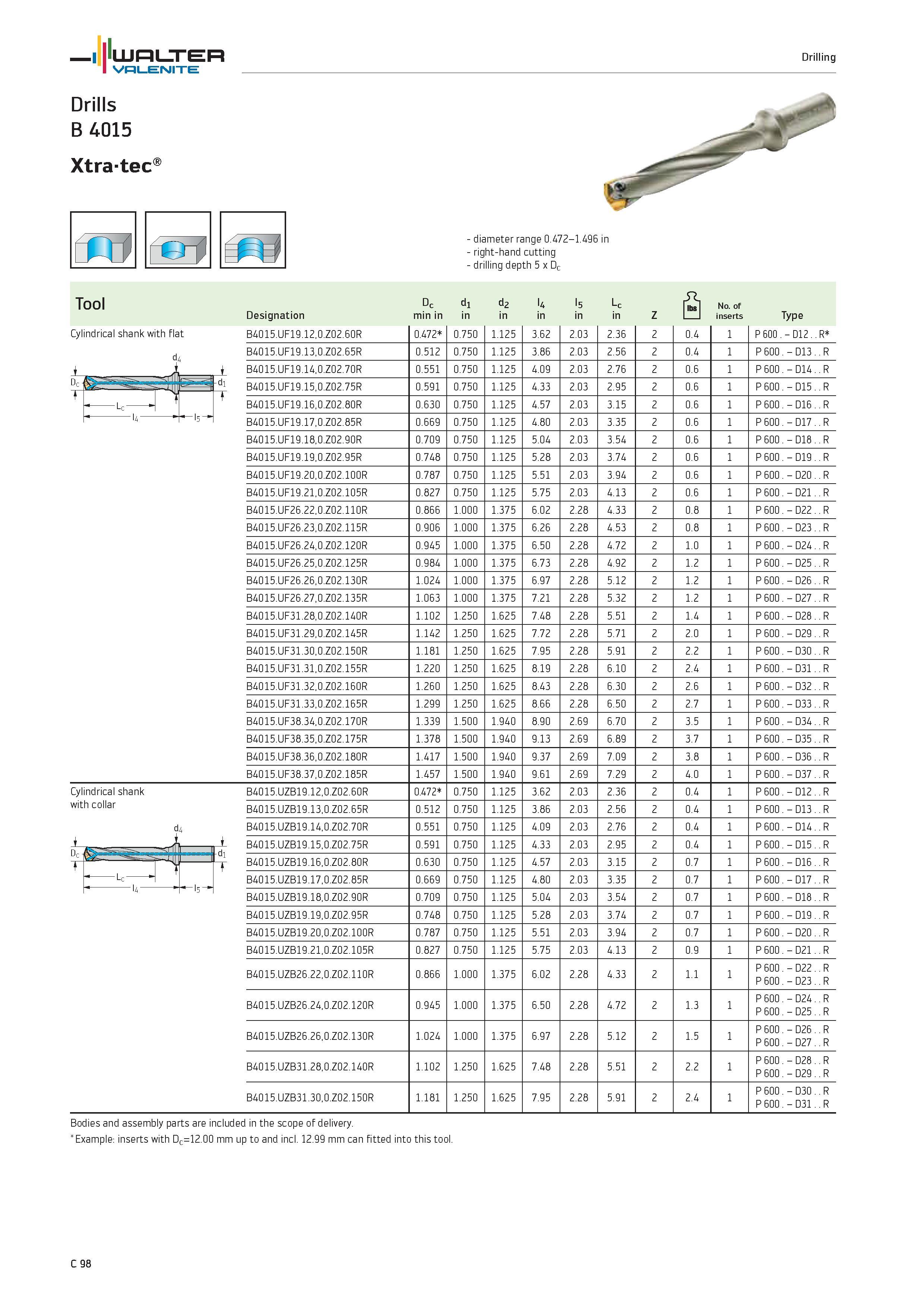

WALTER Valenite Drills B 4015 Xtra-tec Drilling fil re diameter range 0.472-1.496 in right-hand cutting drilling depth 5 x Dc Tool Designation Dc min in dl in d2 in U in l5 in Lc in Z No. of inserts Type Cylindrical shank with flat B4015.UF19.12,0.Z02.60R 0.472 0.750 1.125 3.62 2.03 2.36 2 0.4 1 P 600 D12 R B4015.UF19.13,0.Z02.65R 0.512 0.750 1.125 3.86 2.03 2.56 2 0.4 1 P 600 D13 R 1 I B4015.UF19.14,0.Z02.70R 0.551 0.750 1.125 4.09 2.03 2.76 2 0.6 1 P 600 D14 R Dc -di B4015.UF19.15,0.Z02.75R 0.591 0.750 1.125 4.33 2.03 2.95 2 0.6 P 600 D15 R t Lc B4015.UF19.16,0.Z02.80R 0.630 0.750 1.125 4.57 2.03 3.15 2 0.6 1 P 600 D16 R l4 1 l5 B4015.UF19.17,0.Z02.85R 0.669 0.750 1.125 4.80 2.03 3.35 2 0.6 1 P 600 D17 R B4015.UF19.18,0.Z02.90R 0.709 0.750 1.125 5.04 2.03 3.54 2 0.6 1 P 600 D18 R B4015.UF19.19,0.Z02.95R 0.748 0.750 1.125 5.28 2.03 3.74 2 0.6 1 P 600 D19 R B4015.UF19.20,0.Z02.100R 0.787 0.750 1.125 5.51 2.03 3.94 2 0.6 1 P 600 D20 R B4015.UF19.21,0.Z02.105R 0.827 0.750 1.125 5.75 2.03 4.13 2 0.6 1 P 600 D21 R B4015.UF26.22,0.Z02.110R 0.866 1.000 1.375 6.02 2.28 4.33 2 0.8 1 P 600 D22 R B4015.UF26.23,0.Z02.115R 0.906 1.000 1.375 6.26 2.28 4.53 2 0.8 1 P 600 D23 R B4015.UF26.24,0.Z02.120R 0.945 1.000 1.375 6.50 2.28 4.72 2 1.0 1 P 600 D24 R B4015.UF26.25,0.Z02.125R 0.984 1.000 1.375 6.73 2.28 4.92 2 1.2 1 P 600 D25 R B4015.UF26.26,0.Z02.130R 1.024 1.000 1.375 6.97 2.28 5.12 2 1.2 1 P 600 D26 R B4015.UF26.27,0.Z02.135R 1.063 1.000 1.375 7.21 2.28 5.32 2 1.2 1 P 600 D27 R B4015.UF31.28,0.Z02.140R 1.102 1.250 1.625 7.48 2.28 5.51 2 1.4 1 P 600 D28 R B4015.UF31.29,0.Z02.145R 1.142 1.250 1.625 7.72 2.28 5.71 2 2.0 1 P 600 D29 R B4015.UF31.30,0.Z02.150R 1.181 1.250 1.625 7.95 2.28 5.91 2 2.2 1 P 600 D30 R B4015.UF31.31,0.Z02.155R 1.220 1.250 1.625 8.19 2.28 6.10 2 2.4 1 P 600 D31 R B4015.UF31.32,0.Z02.160R 1.260 1.250 1.625 8.43 2.28 6.30 2 2.6 1 P 600 D32 R B4015.UF31.33,0.Z02.165R 1.299 1.250 1.625 8.66 2.28 6.50 2 2.7 1 P 600 D33 R B4015.UF38.34,0.Z02.170R 1.339 1.500 1.940 8.90 2.69 6.70 2 3.5 1 P 600 D34 R B4015.UF38.35,0.Z02.175R 1.378 1.500 1.940 9.13 2.69 6.89 2 3.7 1 P 600 D35 R B4015.UF38.36,0.Z02.180R 1.417 1.500 1.940 9.37 2.69 7.09 2 3.8 1 P 600 D36 R B4015.UF38.37,0.Z02.185R 1.457 1.500 1.940 9.61 2.69 7.29 2 4.0 1 P 600 D37 R Cylindrical shank B4015.UZB19.12,0.Z02.60R 0.472 0.750 1.125 3.62 2.03 2.36 2 0.4 1 P 600 D12 R with collar B4015.UZB19.13,0.Z02.65R 0.512 0.750 1.125 3.86 2.03 2.56 2 0.4 1 P 600 D13 R d4 B4015.UZB19.14,0.Z02.70R 0.551 0.750 1.125 4.09 2.03 2.76 2 0.4 1 P 600 D14 R 1 B4015.UZB19.15,0.Z02.75R 0.591 0.750 1.125 4.33 2.03 2.95 2 0.4 1 P 600 D15 R Dc II dl B4015.UZB19.16,0.Z02.80R 0.630 0.750 1.125 4.57 2.03 3.15 2 0.7 P 600 D16 R 1 t 1 Lc B4015.UZB19.17,0.Z02.85R 0.669 0.750 1.125 4.80 2.03 3.35 2 0.7 1 P 600 D17 R m l5 B4015.UZB19.18,0.Z02.90R 0.709 0.750 1.125 5.04 2.03 3.54 2 0.7 1 P 600 D18 R B4015.UZB19.19,0.Z02.95R 0.748 0.750 1.125 5.28 2.03 3.74 2 0.7 1 P 600 D19 R B4015.UZB19.20,0.Z02.100R 0.787 0.750 1.125 5.51 2.03 3.94 2 0.7 1 P 600 D20 R B4015.UZB19.21,0.Z02.105R 0.827 0.750 1.125 5.75 2.03 4.13 2 0.9 1 P 600 D21 R B4015.UZB26.22,0.Z02.110R 0.866 1.000 1.375 6.02 2.28 4.33 2 1.1 1 P 600 P 600 D22 D23 R R B4015.UZB26.24,0.Z02.120R 0.945 1.000 1.375 6.50 2.28 4.72 2 1.3 1 P 600 P 600 D24 D25 R R B4015.UZB26.26,0.Z02.130R 1.024 1.000 1.375 6.97 2.28 5.12 2 1.5 1 P 600 P 600 D26 D27 R R B4015.UZB31.28,0.Z02.140R 1.102 1.250 1.625 7.48 2.28 5.51 2 2.2 1 P 600 P 600 D28 D29 R R B4015.UZB31.30,0.Z02.150R 1.181 1.250 1.625 7.95 2.28 5.91 2 2.4 1 P 600 P 600 D30 D31 R R Bodies and assembly parts are included in the scope of delivery. Example inserts with Dc=12.00 mm up to and incl. 12.99 mm can fitted into this tool. C 98
