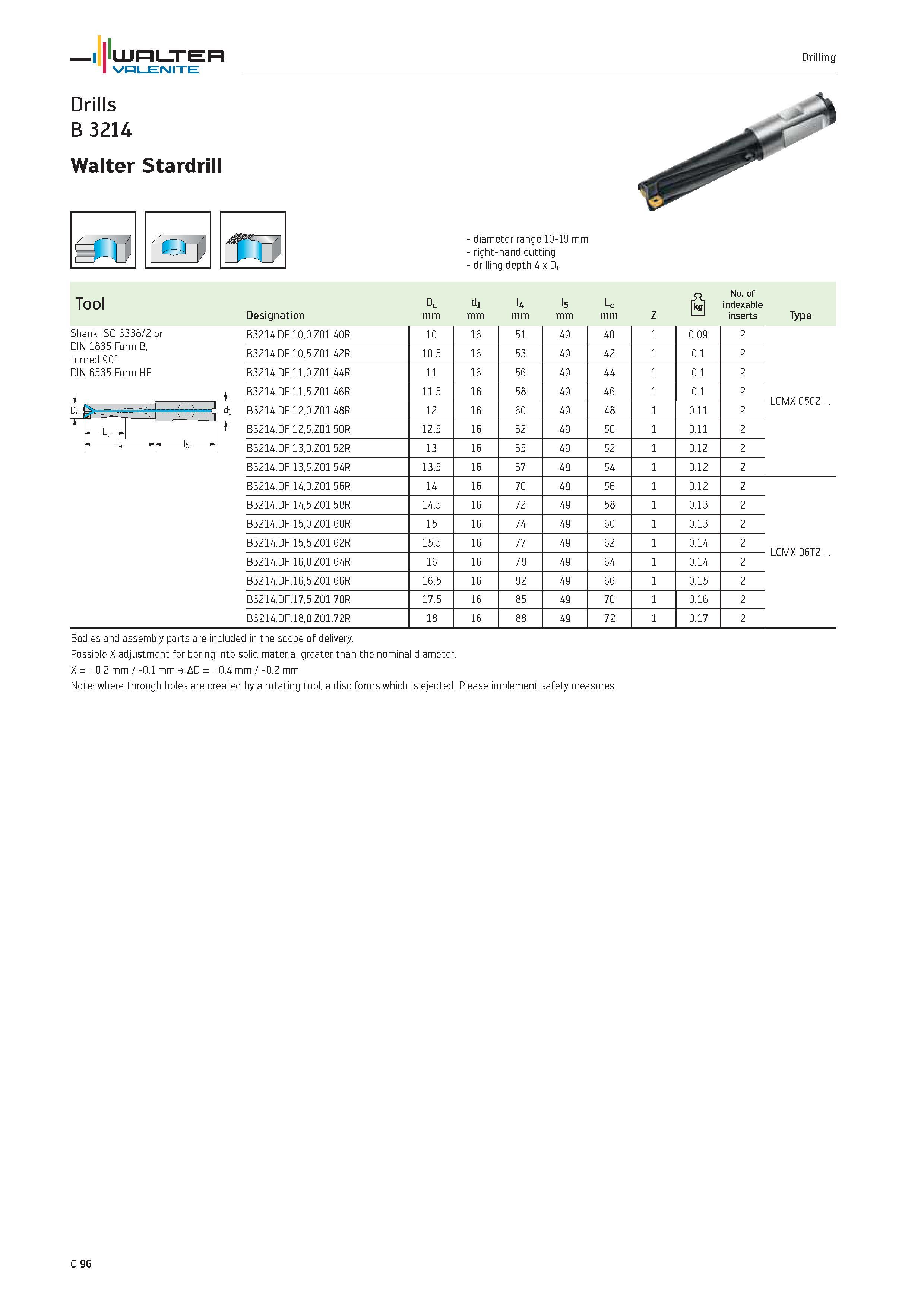

WALTER Valenite Drilling Drills B 3214 Walter Stardrill Tool Shank ISO 3338/2 c DIN 1835 Form B, turned 90° DIN 6535 Form HE L diameter range 10-18 mm right-hand cutting drilling depth 4 x Dc Designation Dc mm d 1mm U mm l5 mm Lc mm Z S No. of indexable inserts Type B3214.DF.10,0.Z01.40R 10 16 51 49 40 1 0.09 2 B3214.DF.10,5.Z01.42R 10.5 16 53 49 42 1 0.1 2 B3214.DF.11,0.Z01.44R 11 16 56 49 44 1 0.1 2 B3214.DF.11,5.Z01.46R 11.5 16 58 49 46 1 0.1 2 LCMX 0502 B3214.DF.12,0.Z01.48R 12 16 60 49 48 1 0.11 2 B3214.DF.12,5.Z01.50R 12.5 16 62 49 50 1 0.11 2 B3214.DF.13,0.Z01.52R 13 16 65 49 52 1 0.12 2 B3214.DF.13,5.Z01.54R 13.5 16 67 49 54 1 0.12 2 B3214.DF.14,0.Z01.56R 14 16 70 49 56 1 0.12 2 B3214.DF.14,5.Z01.58R 14.5 16 72 49 58 1 0.13 2 B3214.DF.15,0.Z01.60R 15 16 74 49 60 1 0.13 2 B3214.DF.15,5.Z01.62R 15.5 16 77 49 62 1 0.14 2 LCMX 06T2 B3214.DF.16,0.Z01.64R 16 16 78 49 64 1 0.14 2 B3214.DF.16,5.Z01.66R 16.5 16 82 49 66 1 0.15 2 B3214.DF.17,5.Z01.70R 17.5 16 85 49 70 1 0.16 2 B3214.DF.18,0.Z01.72R 18 16 88 49 72 1 0.17 2 Bodies and assembly parts are included in the scope of delivery. Possible X adjustment for boring into solid material greater than the nominal diameter X +0.2 mm / -0.1 mm AD +0.4 mm / -0.2 mm Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. D L C 96
