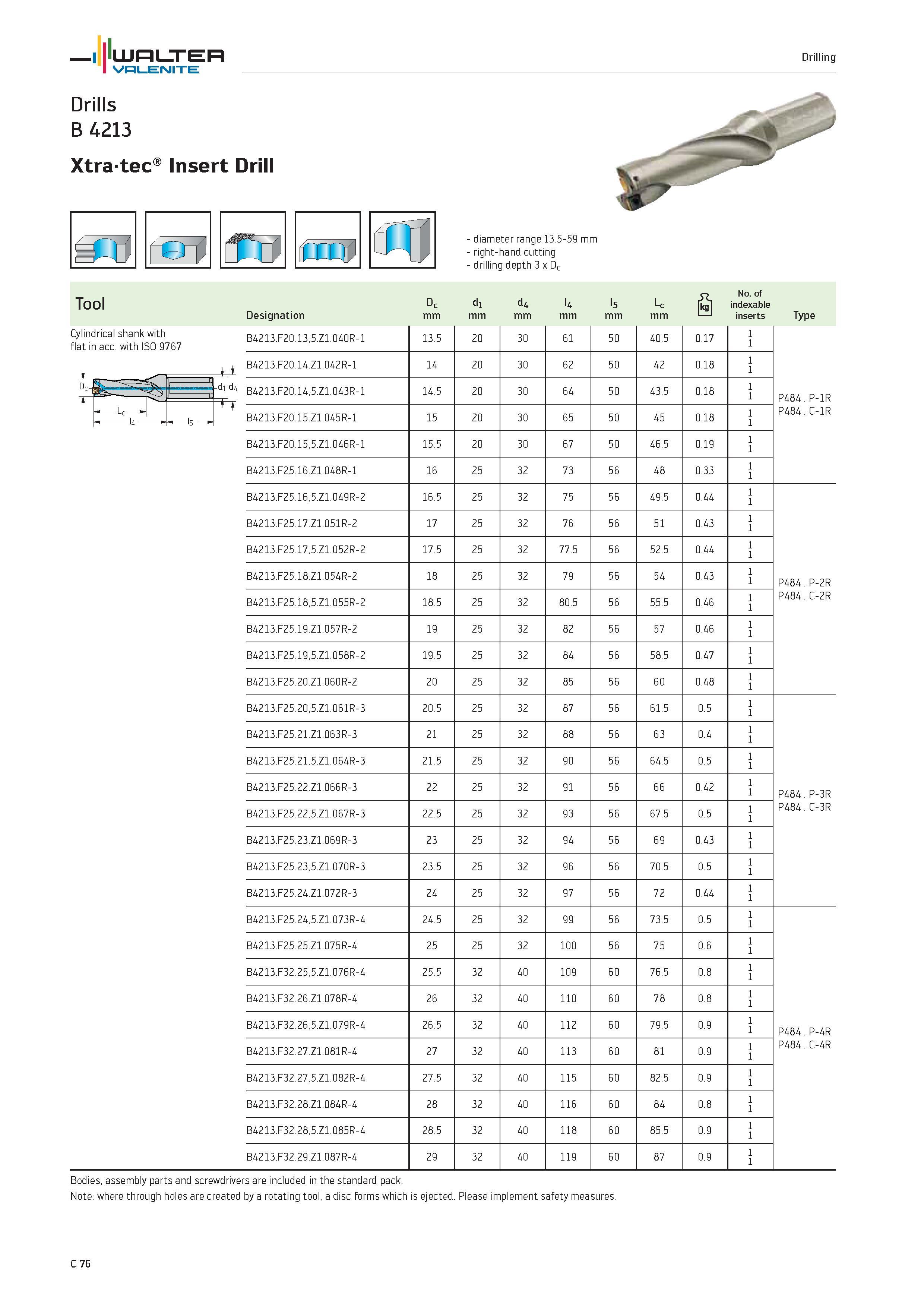

WALTER Valenite Drilling Drills B 4213 Xtra-tec1' Insert Drill re oxjp an diameter range 13.5-59 mm right-hand cutting drilling depth 3 x Dc Tool Dc dl d4 U l5 Lc S No. of indexable Designation mm inserts Type Cylindrical shank with flat in acc. with ISO 9767 B4213.F20.13,5.Z1.040R-1 13.5 20 30 61 50 40.5 0.17 1 1 -M- B4213.F20.14.Z1.042R-1 14 20 30 62 50 42 0.18 1 1 -di B4213.F20.14,5.Z1.043R-1 14.5 20 30 64 50 43.5 0.18 1 1 P484 P-1R b- 4-" l5 1 B4213.F20.15.Z1.045R-1 15 20 30 65 50 45 0.18 1 P484 C-1R 1 B4213.F20.15,5.Z1.046R-1 15.5 20 30 67 50 46.5 0.19 B4213.F25.16.Z1.048R-1 16 25 32 73 56 48 0.33 B4213.F25.16,5.Z1.049R-2 16.5 25 32 75 56 49.5 0.44 B4213.F25.17.Z1.051R-2 17 25 32 76 56 51 0.43 B4213.F25.17,5.Z1.052R-2 17.5 25 32 77.5 56 52.5 0.44 B4213.F25.18.Z1.054R-2 18 25 32 79 56 54 0.43 P484 P-2R B4213.F25.18,5.Z1.055R-2 18.5 25 32 80.5 56 55.5 0.46 P484 C-2R B4213.F25.19.Z1.057R-2 19 25 32 82 56 57 0.46 B4213.F25.19,5.Z1.058R-2 19.5 25 32 84 56 58.5 0.47 B4213.F25.20.Z1.060R-2 20 25 32 85 56 60 0.48 B4213.F25.20,5.Z1.061R-3 20.5 25 32 87 56 61.5 0.5 B4213.F25.21.Z1.063R-3 21 25 32 88 56 63 0.4 B4213.F25.21,5.Z1.064R-3 21.5 25 32 90 56 64.5 0.5 B4213.F25.22.Z1.066R-3 22 25 32 91 56 66 0.42 P484 P-3R B4213.F25.22,5.Z1.067R-3 22.5 25 32 93 56 67.5 0.5 P484 C-3R B4213.F25.23.Z1.069R-3 23 25 32 94 56 69 0.43 B4213.F25.23,5.Z1.070R-3 23.5 25 32 96 56 70.5 0.5 B4213.F25.24.Z1.072R-3 24 25 32 97 56 72 0.44 B4213.F25.24,5.Z1.073R-4 24.5 25 32 99 56 73.5 0.5 B4213.F25.25.Z1.075R-4 25 25 32 100 56 75 0.6 B4213.F32.25,5.Z1.076R-4 25.5 32 40 109 60 76.5 0.8 B4213.F32.26.Z1.078R-4 26 32 40 110 60 78 0.8 B4213.F32.26,5.Z1.079R-4 26.5 32 40 112 60 79.5 0.9 P484 P-4R B4213.F32.27.Z1.081R-4 27 32 40 113 60 81 0.9 P484 C-4R B4213.F32.27,5.Z1.082R-4 27.5 32 40 115 60 82.5 0.9 B4213.F32.28.Z1.084R-4 28 32 40 116 60 84 0.8 B4213.F32.28,5.Z1.085R-4 28.5 32 40 118 60 85.5 0.9 B4213.F32.29.Z1.087R-4 29 32 40 119 60 87 0.9 Bodies, assembly parts and screwdrivers are included in the standard pack. Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 76
