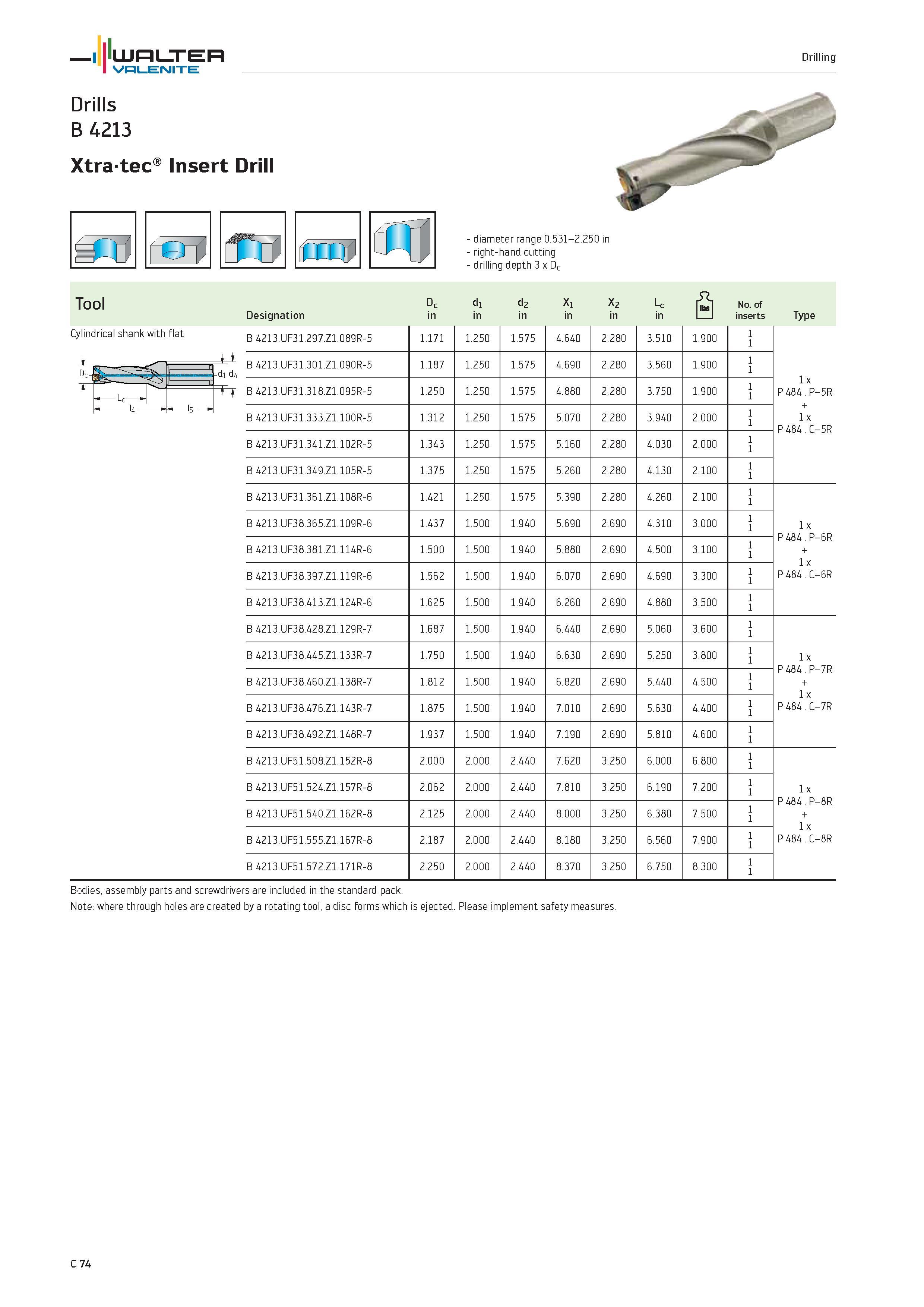

WALTER Valenite Drills B 4213 Xtra-tec Insert Drill Drilling re oxjp an diameter range 0.531-2.250 in right-hand cutting drilling depth 3 x Dc Tool Dc d1 d2 X1 X2 Lc bsl No of Designation in 1 inserts Type Cylindrical shank with flat Jl B 4213.UF31.297.Z1.089R-5 1.171 1.250 1.575 4.640 2.280 3.510 1.900 1 1 B 4213.UF31.301.Z1.090R-5 1.187 1.250 1.575 4.690 2.280 3.560 1.900 x P484.P-5R B 4213.UF31.318.Z1.095R-5 1.250 1.250 1.575 4.880 2.280 3.750 1.900 1 1 B 4213.UF31.333.Z1.100R-5 1.312 1.250 1.575 5.070 2.280 3.940 2.000 x P 484 C-5R B 4213.UF31.341.Z1.102R-5 1.343 1.250 1.575 5.160 2.280 4.030 2.000 1 1 B 4213.UF31.349.Z1.105R-5 1.375 1.250 1.575 5.260 2.280 4.130 2.100 1 1 B 4213.UF31.361.Z1.108R-6 1.421 1.250 1.575 5.390 2.280 4.260 2.100 1 1 B 4213.UF38.365.Z1.109R-6 1.437 1.500 1.940 5.690 2.690 4.310 3.000 x P 484 P-6R + 1 x P 484.C-6R B 4213.UF38.381.Z1.114R-6 1.500 1.500 1.940 5.880 2.690 4.500 3.100 1 1 B 4213.UF38.397.Z1.119R-6 1.562 1.500 1.940 6.070 2.690 4.690 3.300 1 1 B 4213.UF38.413.Z1.124R-6 1.625 1.500 1.940 6.260 2.690 4.880 3.500 1 1 B 4213.UF38.428.Z1.129R-7 1.687 1.500 1.940 6.440 2.690 5.060 3.600 1 1 B 4213.UF38.445.Z1.133R-7 1.750 1.500 1.940 6.630 2.690 5.250 3.800 x P 484 P-7R + 1 x P 484.C-7R B 4213.UF38.460.Z1.138R-7 1.812 1.500 1.940 6.820 2.690 5.440 4.500 1 1 B 4213.UF38.476.Z1.143R-7 1.875 1.500 1.940 7.010 2.690 5.630 4.400 1 1 B 4213.UF38.492.Z1.148R-7 1.937 1.500 1.940 7.190 2.690 5.810 4.600 1 1 B 4213.UF51.508.Z1.152R-8 2.000 2.000 2.440 7.620 3.250 6.000 6.800 1 1 B 4213.UF51.524.Z1.157R-8 2.062 2.000 2.440 7.810 3.250 6.190 7.200 x P 484 P-8R + 1 x P 484.C-8R B 4213.UF51.540.Z1.162R-8 2.125 2.000 2.440 8.000 3.250 6.380 7.500 1 1 B 4213.UF51.555.Z1.167R-8 2.187 2.000 2.440 8.180 3.250 6.560 7.900 1 1 B 4213.UF51.572.Z1.171R-8 2.250 2.000 2.440 8.370 3.250 6.750 8.300 1 1 Bodies, assembly parts and screwdrivers are included in the standard pack. Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 74
