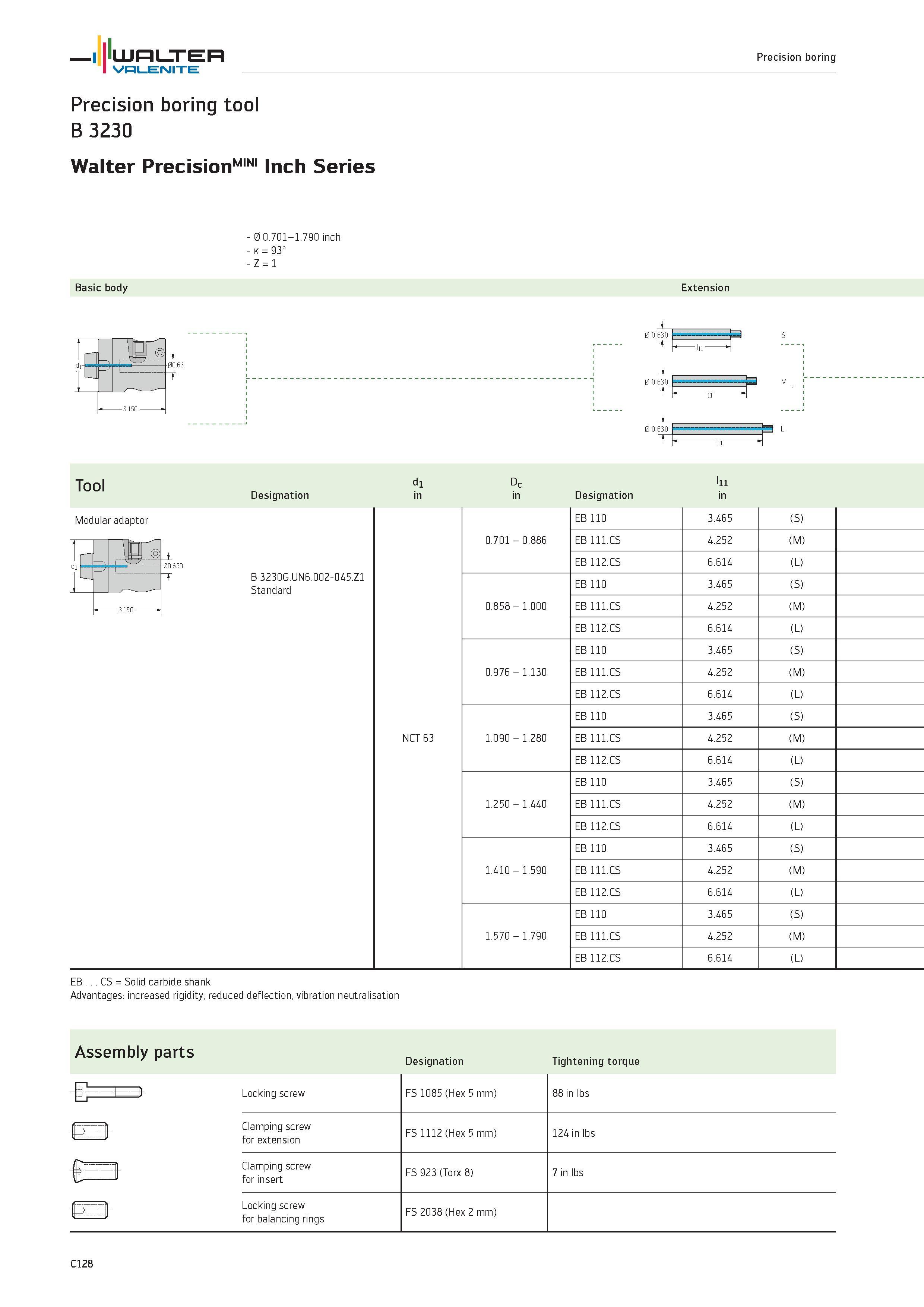

WALTER Precision boring Valenite Precision boring tool B 3230 Walter PrecisionMINI Inch Series Basic body 0 0.701-1.790 inch K 93° Z 1 Extension Tool Modular adaptor Designation B 3230G.UN6.002-045.Z1 Standard di in Dc in NCT 63 Designation lii in 0.701 0.886 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 0.858 1.000 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 0.976 1.130 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 1.090 1.280 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 1.250 1.440 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 1.410 1.590 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) 1.570 1.790 EB 110 3.465 (S) EB 111.CS 4.252 (M) EB 112.CS 6.614 (L) EB CS Solid carbide shank Advantages increased rigidity, reduced deflection, vibration neutralisation S M Assembly parts Designation Tightening torque C128
