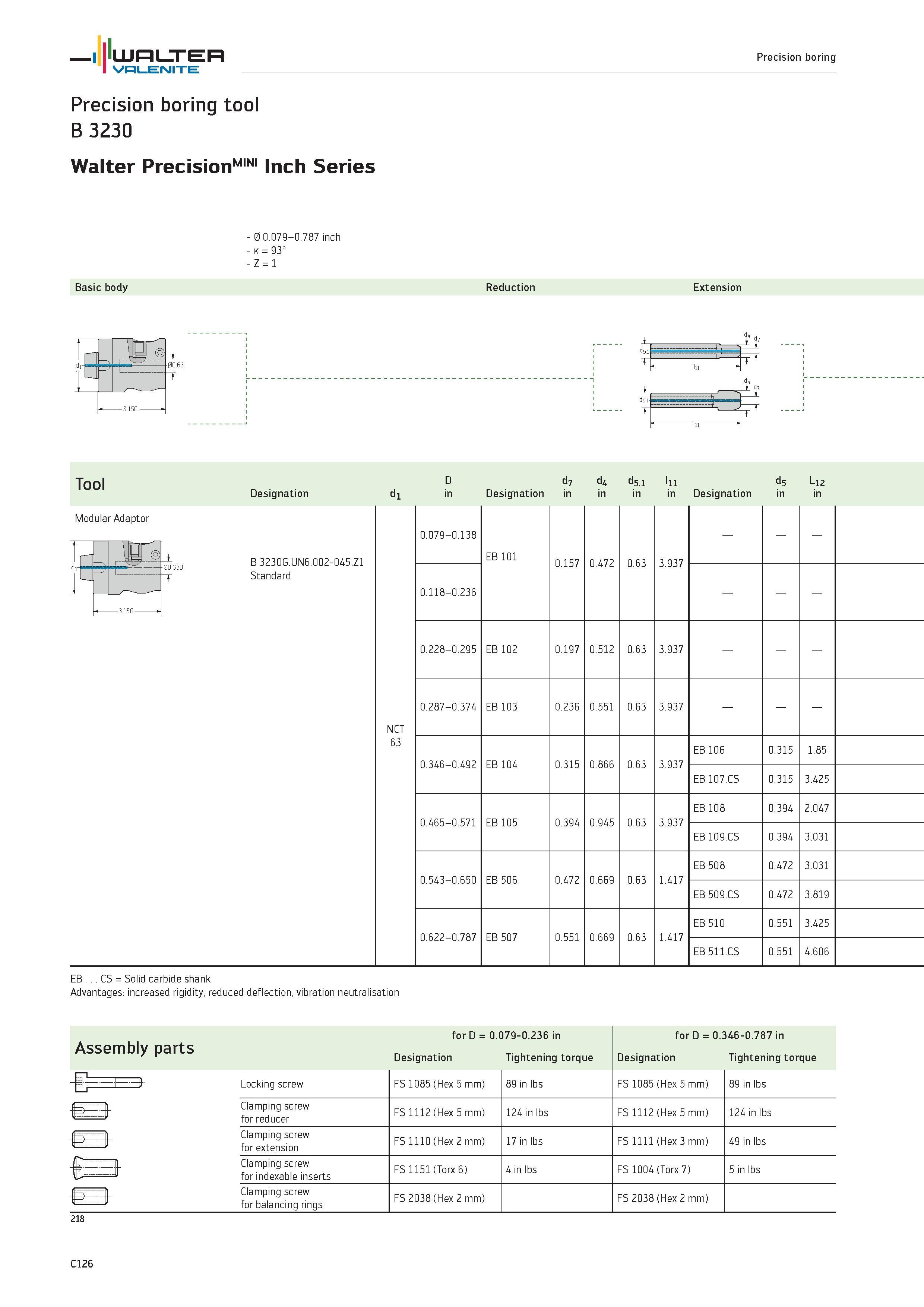

WALTER Precision boring Valenite Precision boring tool B 3230 Walter PrecisionMINI Inch Series 0 0.079-0.787 inch k 93° Z 1 Basic body Reduction Extension Tool Modular Adaptor Designation B 3230G.UN6.002-045.Z1 Standard D d7 d4 d5.1 >11 d5 L12 d1 in Designation in Designation in NCT 63 0.079-0.138 EB 101 0.157 0.472 0.63 3.937 0.118-0.236 0.228-0.295 EB 102 0.197 0.512 0.63 3.937 0.287-0.374 EB 103 0.236 0.551 0.63 3.937 0.346-0.492 EB 104 0.315 0.866 0.63 3.937 EB 106 0.315 1.85 EB 107.CS 0.315 3.425 0.465-0.571 EB 105 0.394 0.945 0.63 3.937 EB 108 0.394 2.047 EB 109.CS 0.394 3.031 0.543-0.650 EB 506 0.472 0.669 0.63 1.417 EB 508 0.472 3.031 EB 509.CS 0.472 3.819 0.622-0.787 EB 507 0.551 0.669 0.63 1.417 EB 510 0.551 3.425 EB 511.CS 0.551 4.606 EB CS Solid carbide shank Advantages increased rigidity, reduced deflection, vibration neutralisation Assembly parts H3 13 for D 0.079-0.236 in for D 0.346-0.787 in Designation Tightening torque Designation Tightening torque Locking screw FS 1085 (Hex 5 mm) 89 in lbs FS 1085 (Hex 5 mm) 89 in lbs Clamping screw for reducer FS 1112 (Hex 5 mm) 124 in lbs FS 1112 (Hex 5 mm) 124 in lbs Clamping screw for extension FS 1110 (Hex 2 mm) 17 in lbs FS 1111 (Hex 3 mm) 49 in lbs Clamping screw for indexable inserts FS 1151 (Torx 6) 4 in lbs FS 1004 (Torx 7) 5 in lbs Clamping screw for balancing rings FS 2038 (Hex 2 mm) FS 2038 (Hex 2 mm) 218 C126
