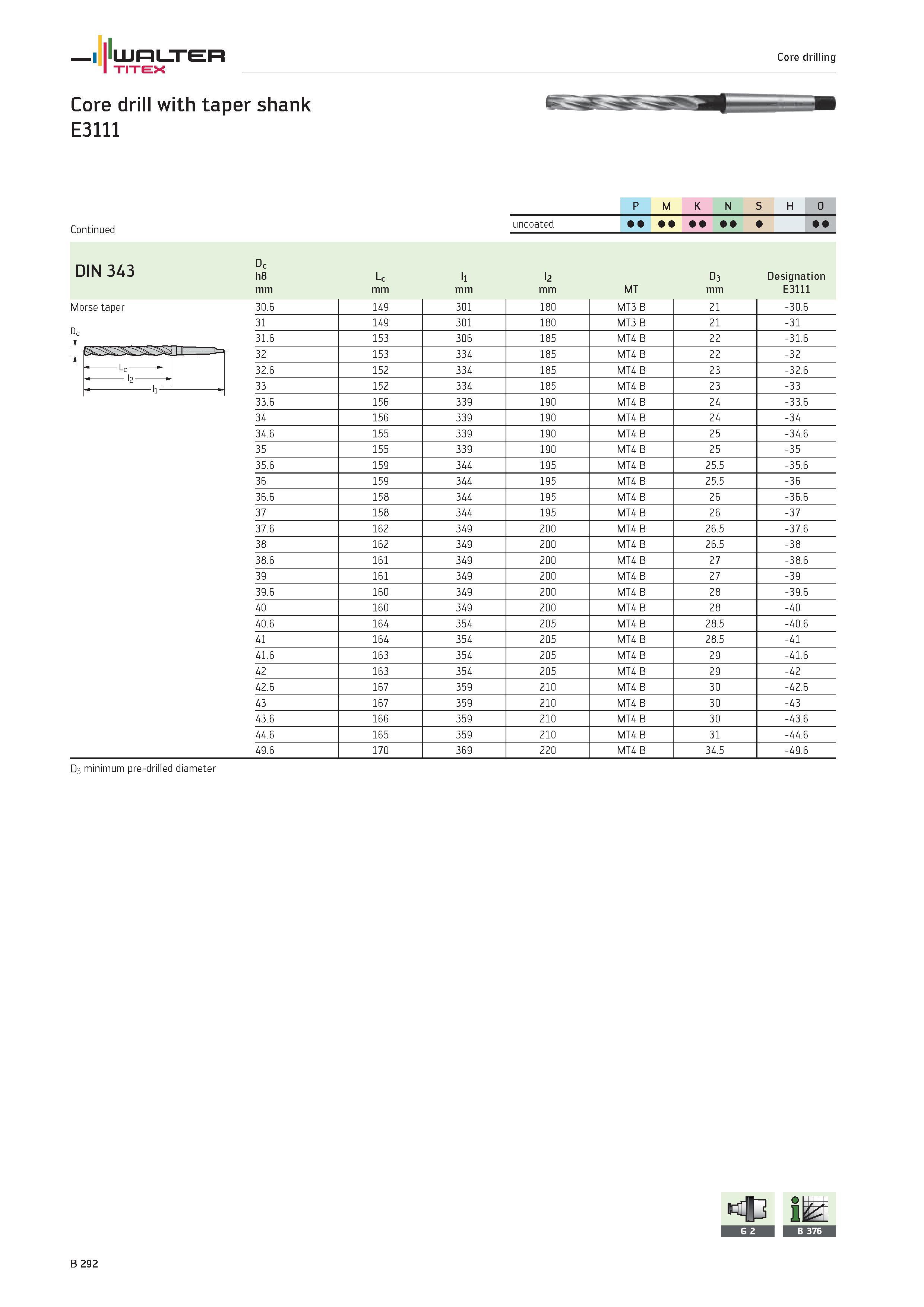

WALTER TITEX Core drill with taper shank E3111 Core drilling P M K N S H O uncoated DIN 343 Morse taper Dc 1 h8 Lc ll l2 D3 Designation mm MT mm E3111 30.6 149 301 180 MT3 B 21 -30.6 31 149 301 180 MT3 B 21 -31 31.6 153 306 185 MT4 B 22 -31.6 32 153 334 185 MT4 B 22 -32 32.6 152 334 185 MT4 B 23 -32.6 33 152 334 185 MT4 B 23 -33 33.6 156 339 190 MT4 B 24 -33.6 34 156 339 190 MT4 B 24 -34 34.6 155 339 190 MT4 B 25 -34.6 35 155 339 190 MT4 B 25 -35 35.6 159 344 195 MT4 B 25.5 -35.6 36 159 344 195 MT4 B 25.5 -36 36.6 158 344 195 MT4 B 26 -36.6 37 158 344 195 MT4 B 26 -37 37.6 162 349 200 MT4 B 26.5 -37.6 38 162 349 200 MT4 B 26.5 -38 38.6 161 349 200 MT4 B 27 -38.6 39 161 349 200 MT4 B 27 -39 39.6 160 349 200 MT4 B 28 -39.6 40 160 349 200 MT4 B 28 -40 40.6 164 354 205 MT4 B 28.5 -40.6 41 164 354 205 MT4 B 28.5 -41 41.6 163 354 205 MT4 B 29 -41.6 42 163 354 205 MT4 B 29 -42 42.6 167 359 210 MT4 B 30 -42.6 43 167 359 210 MT4 B 30 -43 43.6 166 359 0 21 MT4 B 30 -43.6 44.6 165 359 210 MT4 B 31 -44.6 49.6 170 369 220 MT4 B 34.5 -49.6 D3 minimum pre-drilled diameter D c L B 292
