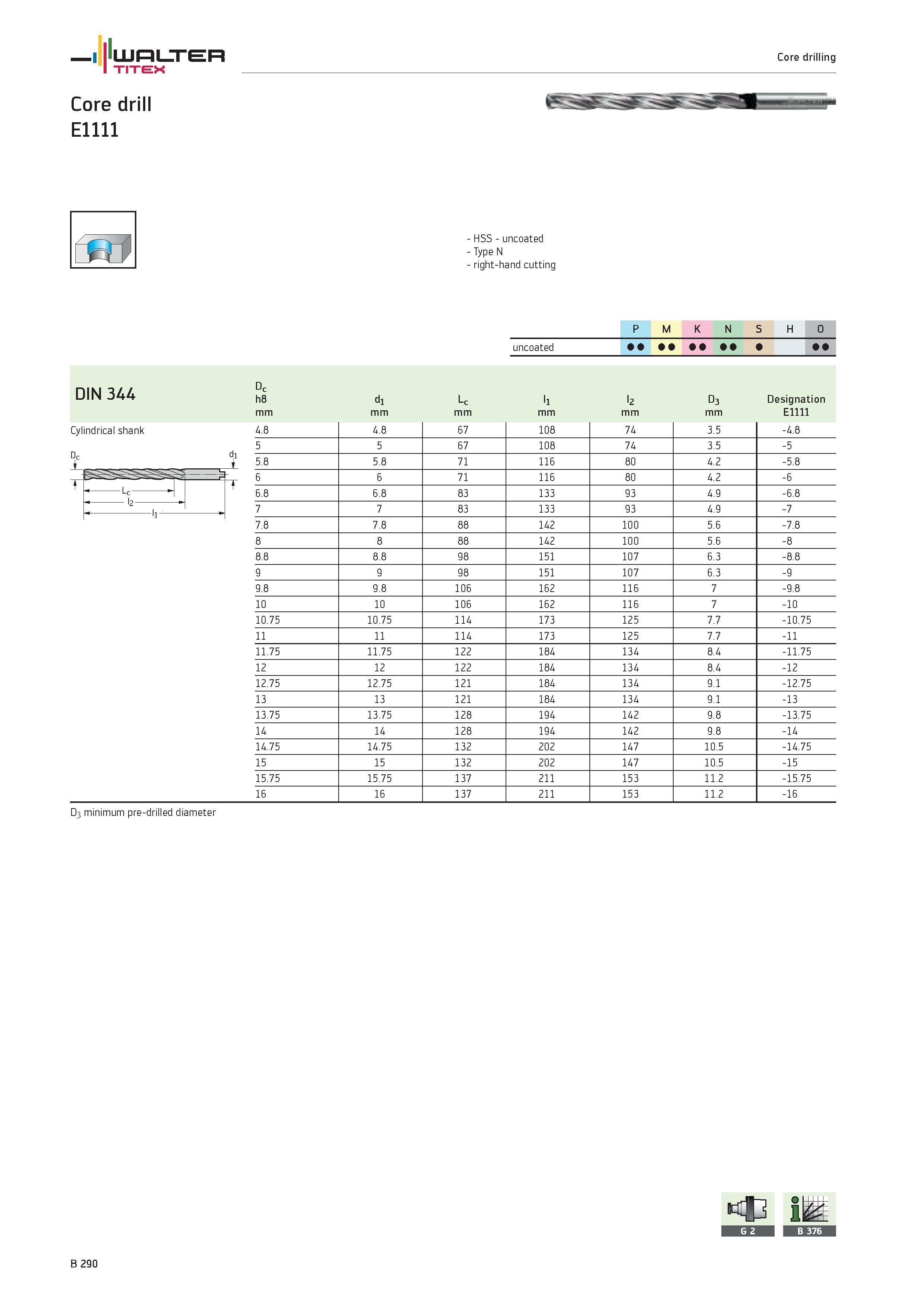

WALTER TITEX Core drill E1111 Core drilling HSS uncoated Type N right-hand cutting P M K N S H O uncoated DIN 344 Dc h8 mm d1 mm c mm l1 mm l2 mm D3 mm Designation E1111 Cylindrical shank Dc 4.8 4.8 67 108 74 3.5 -4.8 5 5 67 108 74 3.5 -5 JL 5.8 5.8 71 116 80 4.2 -5.8 6 71 116 80 4.2 -6 + -T U Lc 6.8 6.8 83 133 93 4.9 -6.8 li 7 7 83 133 93 4.9 -7 7.8 7.8 88 142 100 5.6 -7.8 8 8 88 142 100 5.6 -8 8.8 8.8 98 151 107 6.3 -8.8 9 9 98 151 107 6.3 -9 9.8 9.8 106 162 116 7 -9.8 10 10 106 162 116 7 -10 10.75 10.75 114 173 125 7.7 -10.75 11 11 114 173 125 7.7 -11 11.75 11.75 122 184 134 8.4 -11.75 12 12 122 184 134 8.4 -12 12.75 12.75 121 184 134 9.1 -12.75 13 13 121 184 134 9.1 -13 13.75 13.75 128 194 142 9.8 -13.75 14 14 128 194 142 9.8 -14 14.75 14.75 132 202 147 10.5 -14.75 15 15 132 202 147 10.5 -15 15.75 15.75 137 211 153 11.2 -15.75 16 16 137 211 153 11.2 -16 D3 minimum pre-drilled diameter B 290
