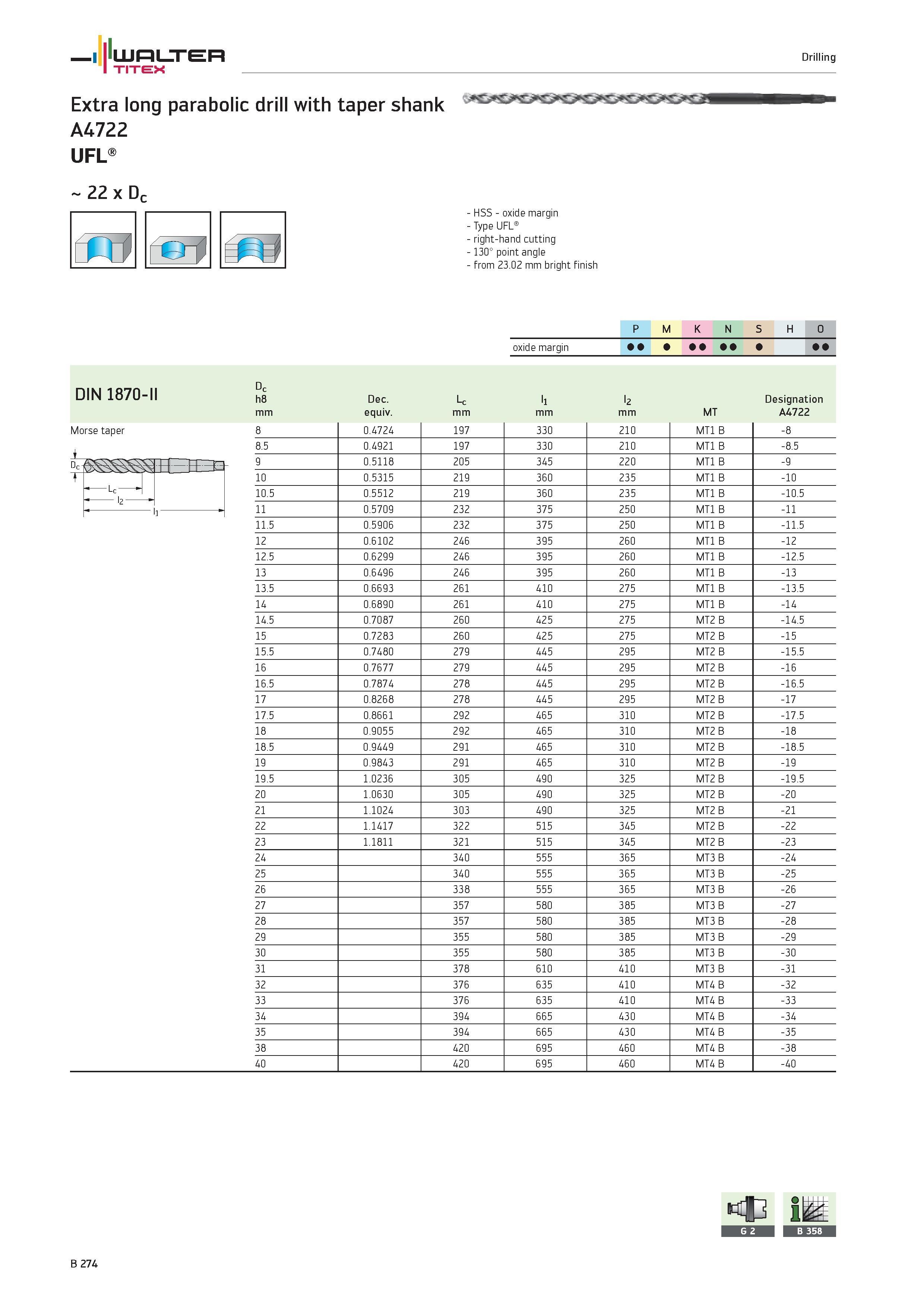

WALTER TITEX Drilling Extra long parabolic drill with taper shank A4722 UFL 22 x Dc re HSS oxide margin Type UFL right-hand cutting 130° point angle from 23.02 mm bright finish P M K N S H O oxide margin 1 DIN 1870-II Dc h8 mm Dec. equiv. Lc mm ll mm l2 mm MT Designation A4722 Morse taper 8 0.4724 197 330 210 MT1 B -8 8.5 0.4921 197 330 210 MT1 B -8.5 Or- 9 0.5118 205 345 220 MT1 B -9 10 0.5315 219 360 235 MT1 B -10 Lc 10.5 0.5512 219 360 235 MT1 B -10.5 1 11 0.5709 232 375 250 MT1 B -11 11.5 0.5906 232 375 250 MT1 B -11.5 12 0.6102 246 395 260 MT1 B -12 12.5 0.6299 246 395 260 MT1 B -12.5 13 0.6496 246 395 260 MT1 B -13 13.5 0.6693 261 410 275 MT1 B -13.5 14 0.6890 261 410 275 MT1 B -14 14.5 0.7087 260 425 275 MT2 B -14.5 15 0.7283 260 425 275 MT2 B -15 15.5 0.7480 279 445 295 MT2 B -15.5 16 0.7677 279 445 295 MT2 B -16 16.5 0.7874 278 445 295 MT2 B -16.5 17 0.8268 278 445 295 MT2 B -17 17.5 0.8661 292 465 310 MT2 B -17.5 18 0.9055 292 465 310 MT2 B -18 18.5 0.9449 291 465 310 MT2 B -18.5 19 0.9843 291 465 310 MT2 B -19 19.5 1.0236 305 490 325 MT2 B -19.5 20 1.0630 305 490 325 MT2 B -20 21 1.1024 303 490 325 MT2 B -21 22 1.1417 322 515 345 MT2 B -22 23 1.1811 321 515 345 MT2 B -23 24 340 555 365 MT3 B -24 25 340 555 365 MT3 B -25 26 338 555 365 MT3 B -26 27 357 580 385 MT3 B -27 28 357 580 385 MT3 B -28 29 355 580 385 MT3 B -29 30 355 580 385 MT3 B -30 31 378 610 410 MT3 B -31 32 376 635 410 MT4 B -32 33 376 635 410 MT4 B -33 34 394 665 430 MT4 B -34 35 394 665 430 MT4 B -35 38 420 695 460 MT4 B -38 40 420 695 460 MT4 B -40 O L fl B 274
