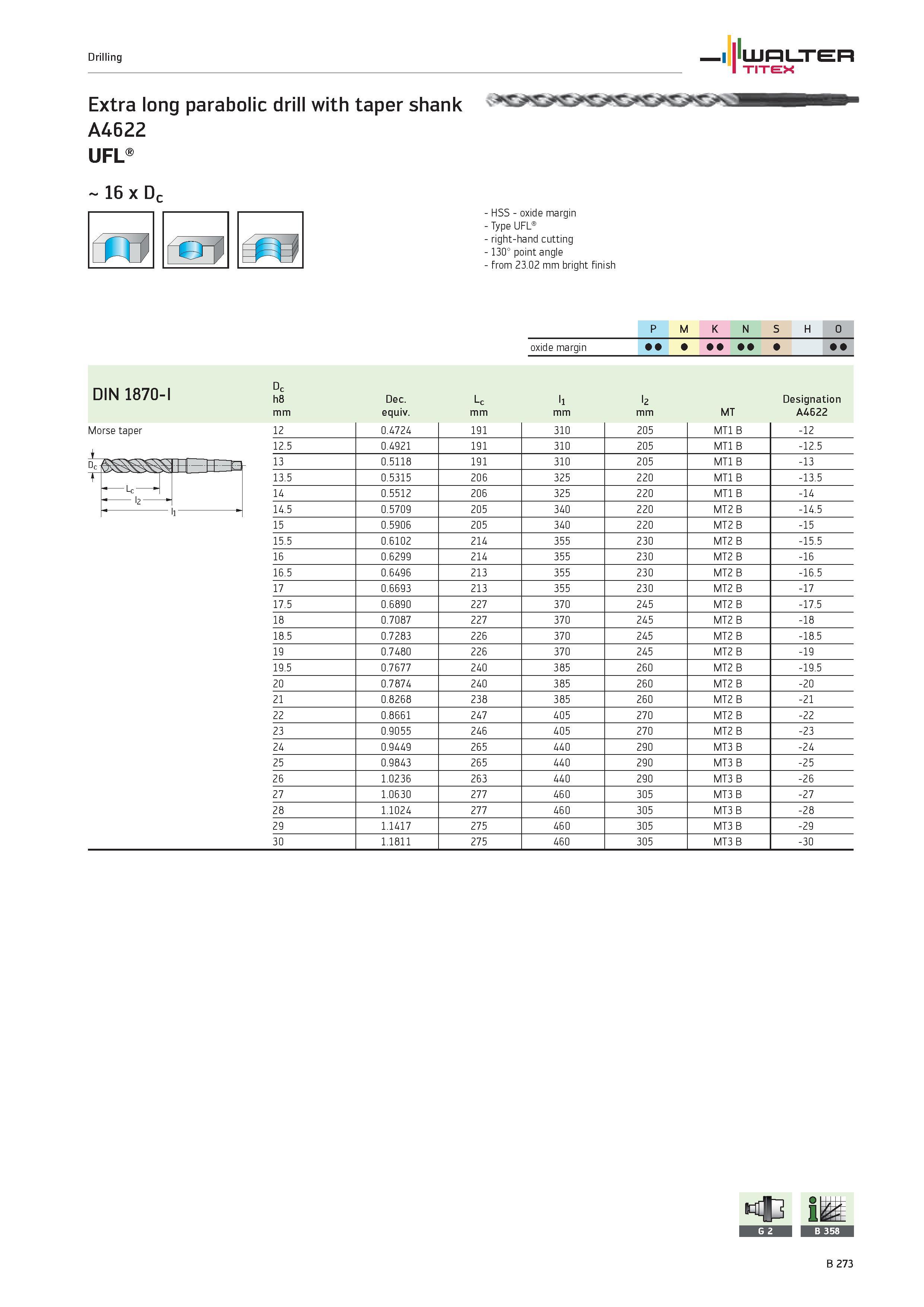

Drilling WALTER TITEX Extra long parabolic drill with taper shank A4622 UFL 16 x Dc rT0 re HSS oxide margin Type UFL right-hand cutting 130° point angle from 23.02 mm bright finish P M K N S H O oxide margin DIN 1870-I Dc h8 mm Dec. equiv. Lc mm l1 mm l2 mm MT Designation A4622 Morse taper 12 0.4724 191 310 205 MT1 B -12 12.5 0.4921 191 310 205 MT1 B -12.5 Dc Tfpl+HE 13 0.5118 191 310 205 MT1 B -13 13.5 0.5315 206 325 220 MT1 B -13.5 Lc -1 14 0.5512 206 325 220 MT1 B -14 i 14.5 0.5709 205 340 220 MT2 B -14.5 15 0.5906 205 340 220 MT2 B -15 15.5 0.6102 214 355 230 MT2 B -15.5 16 0.6299 214 355 230 MT2 B -16 16.5 0.6496 213 355 230 MT2 B -16.5 17 0.6693 213 355 230 MT2 B -17 17.5 0.6890 227 370 245 MT2 B -17.5 18 0.7087 227 370 245 MT2 B -18 18.5 0.7283 226 370 245 MT2 B -18.5 19 0.7480 226 370 245 MT2 B -19 19.5 0.7677 240 385 260 MT2 B -19.5 20 0.7874 240 385 260 MT2 B -20 21 0.8268 238 385 260 MT2 B -21 22 0.8661 247 405 270 MT2 B -22 23 0.9055 246 405 270 MT2 B -23 24 0.9449 265 440 290 MT3 B -24 25 0.9843 265 440 290 MT3 B -25 26 1.0236 263 440 290 MT3 B -26 27 1.0630 277 460 305 MT3 B -27 28 1.1024 277 460 305 MT3 B -28 29 1.1417 275 460 305 MT3 B -29 30 1.1811 275 460 305 MT3 B -30
