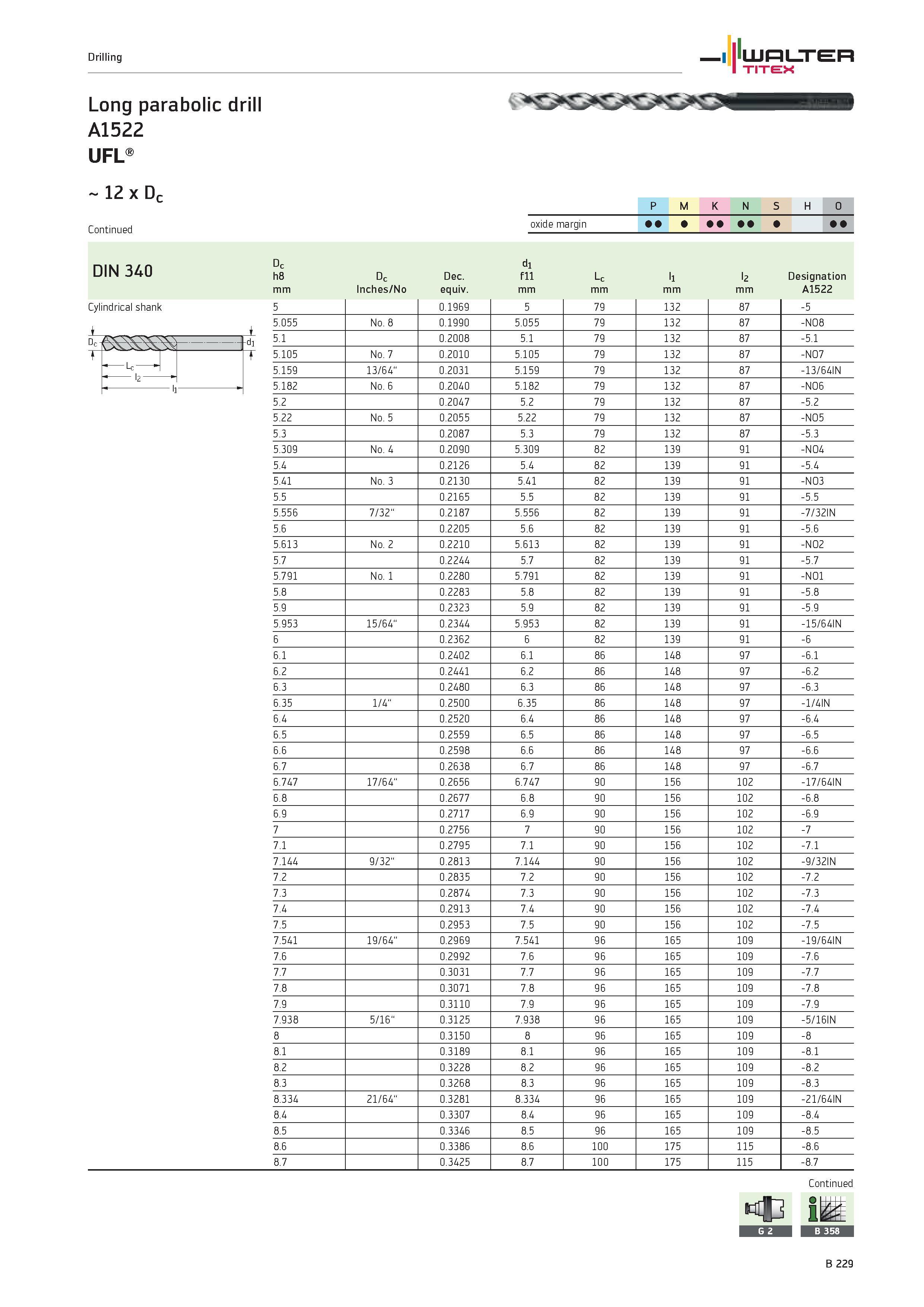

Drilling Long parabolic drill A1522 UFL 12 x Dc DIN 340 Cylindrical shank WALTER TITEX P M K N S H O oxide margin Dc di h8 Dc Dec. fii Lc li l2 Designation mm Inches/No equiv. mm A1522 5 0.1969 5 79 132 87 -5 5.055 No. 8 0.1990 5.055 79 132 87 -NO8 5.1 0.2008 5.1 79 132 87 -5.1 5.105 No. 7 0.2010 5.105 79 132 87 -NO7 5.159 13/64" 0.2031 5.159 79 132 87 -13/64IN 5.182 No. 6 0.2040 5.182 79 132 87 -NO6 5.2 0.2047 5.2 79 132 87 -5.2 5.22 No. 5 0.2055 5.22 79 132 87 -NO5 5.3 0.2087 5.3 79 132 87 -5.3 5.309 No. 4 0.2090 5.309 82 139 91 -NO4 5.4 0.2126 5.4 82 139 91 -5.4 5.41 No. 3 0.2130 5.41 82 139 91 -NO3 5.5 0.2165 5.5 82 139 91 -5.5 5.556 7/32" 0.2187 5.556 82 139 91 -7/32IN 5.6 0.2205 5.6 82 139 91 -5.6 5.613 No. 2 0.2210 5.613 82 139 91 -NO2 5.7 0.2244 5.7 82 139 91 -5.7 5.791 No. 1 0.2280 5.791 82 139 91 -NO1 5.8 0.2283 5.8 82 139 91 -5.8 5.9 0.2323 5.9 82 139 91 -5.9 5.953 15/64" 0.2344 5.953 82 139 91 -15/64IN 6 0.2362 6 82 139 91 -6 6.1 0.2402 6.1 86 148 97 -6.1 6.2 0.2441 6.2 86 148 97 -6.2 6.3 0.2480 6.3 86 148 97 -6.3 6.35 1/4" 0.2500 6.35 86 148 97 -1/4IN 6.4 0.2520 6.4 86 148 97 -6.4 6.5 0.2559 6.5 86 148 97 -6.5 6.6 0.2598 6.6 86 148 97 -6.6 6.7 0.2638 6.7 86 148 97 -6.7 6.747 17/64" 0.2656 6.747 90 156 102 -17/64IN 6.8 0.2677 6.8 90 156 102 -6.8 6.9 0.2717 6.9 90 156 102 -6.9 7 0.2756 7 90 156 102 -7 7.1 0.2795 7.1 90 156 102 -7.1 7.144 9/32" 0.2813 7.144 90 156 102 -9/32IN 7.2 0.2835 7.2 90 156 102 -7.2 7.3 0.2874 7.3 90 156 102 -7.3 7.4 0.2913 7.4 90 156 102 -7.4 7.5 0.2953 7.5 90 156 102 -7.5 7.541 19/64" 0.2969 7.541 96 165 109 -19/64IN 7.6 0.2992 7.6 96 165 109 -7.6 7.7 0.3031 7.7 96 165 109 -7.7 7.8 0.3071 7.8 96 165 109 -7.8 7.9 0.3110 7.9 96 165 109 -7.9 7.938 5/16" 0.3125 7.938 96 165 109 -5/16IN 8 0.3150 8 96 165 109 -8 8.1 0.3189 8.1 96 165 109 -8.1 8.2 0.3228 8.2 96 165 109 -8.2 8.3 0.3268 8.3 96 165 109 -8.3 8.334 21/64" 0.3281 8.334 96 165 109 -21/64IN 8.4 0.3307 8.4 96 165 109 -8.4 8.5 0.3346 8.5 96 165 109 -8.5 8.6 0.3386 8.6 100 175 115 -8.6 8.7 0.3425 8.7 100 175 115 -8.7 B 229
