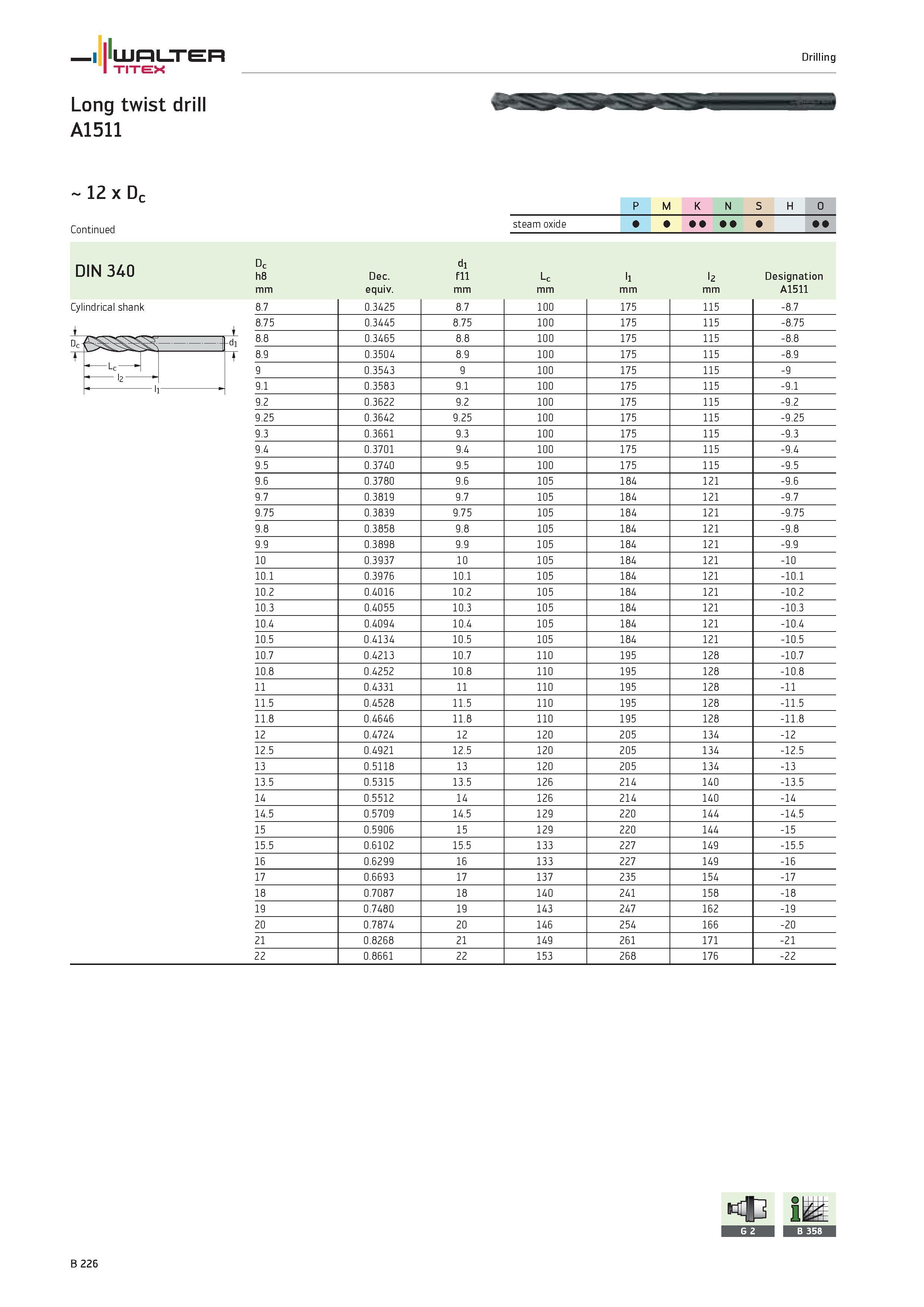

WALTER TITEX Long twist drill A1511 Drilling 12 x Dc Cylindrical shank Lc" P M K N S H O steam oxide DIN 340 Dc h8 Dec. d1 f11 Lc l1 l2 Designation mm equiv. mm A1511 8.7 0.3425 8.7 100 175 115 -8.7 8.75 0.3445 8.75 100 175 115 -8.75 8.8 0.3465 8.8 100 175 115 -8.8 8.9 0.3504 8.9 100 175 115 -8.9 9 0.3543 9 100 175 115 -9 9.1 0.3583 9.1 100 175 115 -9.1 9.2 0.3622 9.2 100 175 115 -9.2 9.25 0.3642 9.25 100 175 115 -9.25 9.3 0.3661 9.3 100 175 115 -9.3 9.4 0.3701 9.4 100 175 115 -9.4 9.5 0.3740 9.5 100 175 115 -9.5 9.6 0.3780 9.6 105 184 121 -9.6 9.7 0.3819 9.7 105 184 121 -9.7 9.75 0.3839 9.75 105 184 121 -9.75 9.8 0.3858 9.8 105 184 121 -9.8 9.9 0.3898 9.9 105 184 121 -9.9 10 0.3937 10 105 184 121 -10 10.1 0.3976 10.1 105 184 121 -10.1 10.2 0.4016 10.2 105 184 121 -10.2 10.3 0.4055 10.3 105 184 121 -10.3 10.4 0.4094 10.4 105 184 121 -10.4 10.5 0.4134 10.5 105 184 121 -10.5 10.7 0.4213 10.7 110 195 128 -10.7 10.8 0.4252 10.8 110 195 128 -10.8 11 0.4331 11 110 195 128 -11 11.5 0.4528 11.5 110 195 128 -11.5 11.8 0.4646 11.8 110 195 2 -11.8 12 0.4724 12 120 205 134 -12 12.5 0.4921 12.5 120 205 134 -12.5 13 0.5118 13 120 205 134 -13 13.5 0.5315 13.5 126 214 140 -13.5 14 0.5512 14 126 214 140 -14 14.5 0.5709 14.5 129 220 144 -14.5 15 0.5906 15 129 220 144 -15 15.5 0.6102 15.5 133 227 149 -15.5 16 0.6299 16 133 227 149 -16 17 0.6693 17 137 235 154 -17 18 0.7087 18 140 241 158 -18 19 0.7480 19 143 247 162 -19 20 0.7874 20 146 254 166 -20 21 0.8268 21 149 261 171 -21 22 0.8661 22 153 268 176 -22 B 226
