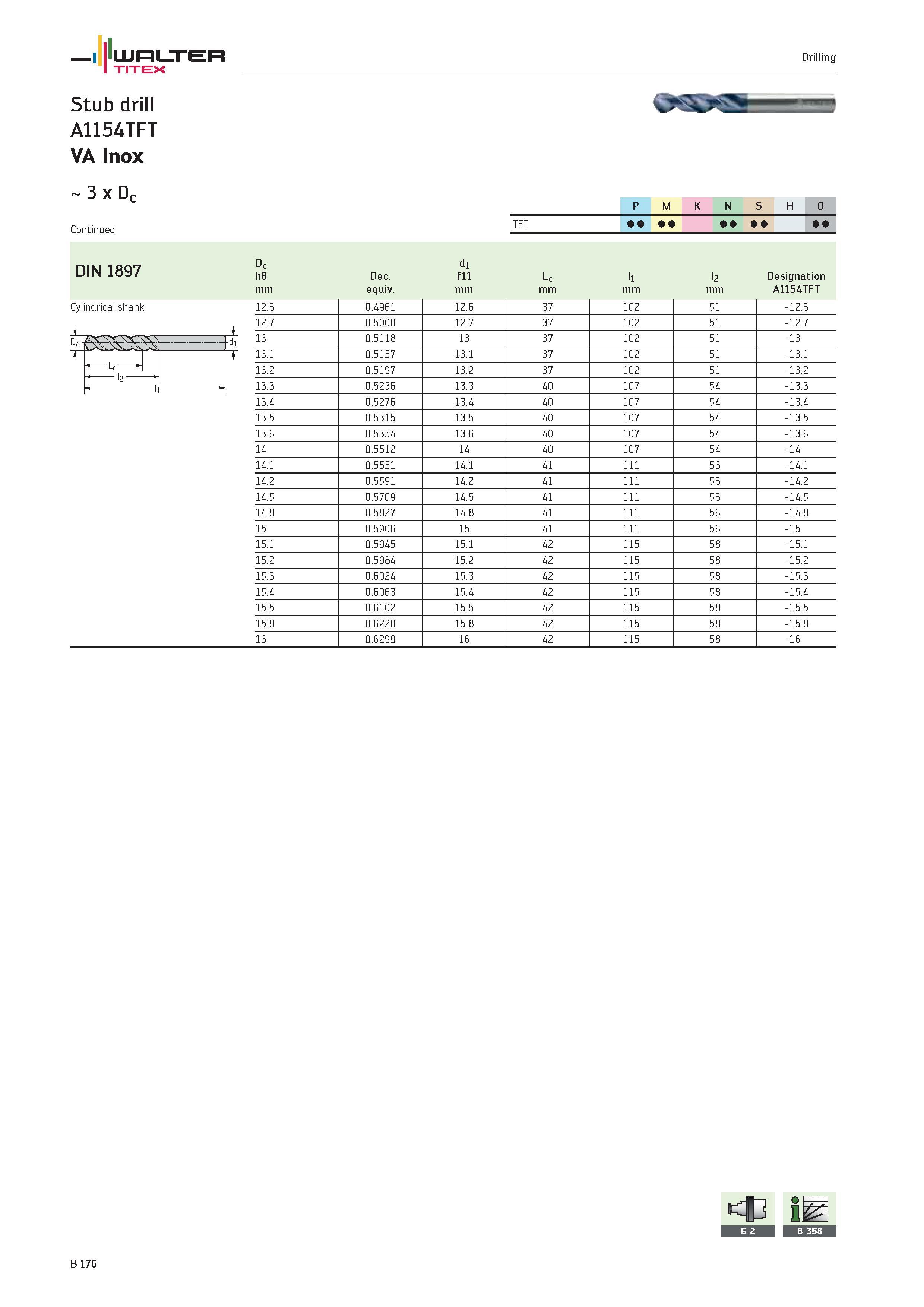

WALTER TITEX Stub drill A1154TFT VA Inox 3 x Dc DIN 1897 Cylindrical shank Drilling P M K N S H O TFT 1 Dc di h8 Dec. fii Lc li l2 Designation mm equiv. mm A1154TFT 12.6 0.4961 12.6 37 102 51 -12.6 12.7 0.5000 12.7 37 102 51 -12.7 13 0.5118 13 37 102 51 -13 13.1 0.5157 13.1 37 102 51 -13.1 13.2 0.5197 13.2 37 102 51 -13.2 13.3 0.5236 13.3 40 107 54 -13.3 13.4 0.5276 13.4 40 107 54 -13.4 13.5 0.5315 13.5 40 107 54 -13.5 13.6 0.5354 13.6 40 107 54 -13.6 14 0.5512 14 40 107 54 -14 14.1 0.5551 14.1 41 111 56 -14.1 14.2 0.5591 14.2 41 111 56 -14.2 14.5 0.5709 14.5 41 111 56 -14.5 14.8 0.5827 14.8 41 111 56 -14.8 15 0.5906 15 41 111 56 -15 15.1 0.5945 15.1 42 115 58 -15.1 15.2 0.5984 15.2 42 115 58 -15.2 15.3 0.6024 15.3 42 115 58 -15.3 15.4 0.6063 15.4 42 115 58 -15.4 15.5 0.6102 15.5 42 115 58 -15.5 15.8 0.6220 15.8 42 115 58 -15.8 16 0.6299 16 42 115 58 -16 B 176
