671 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.B173

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. B173 0671 ENG Lab2u

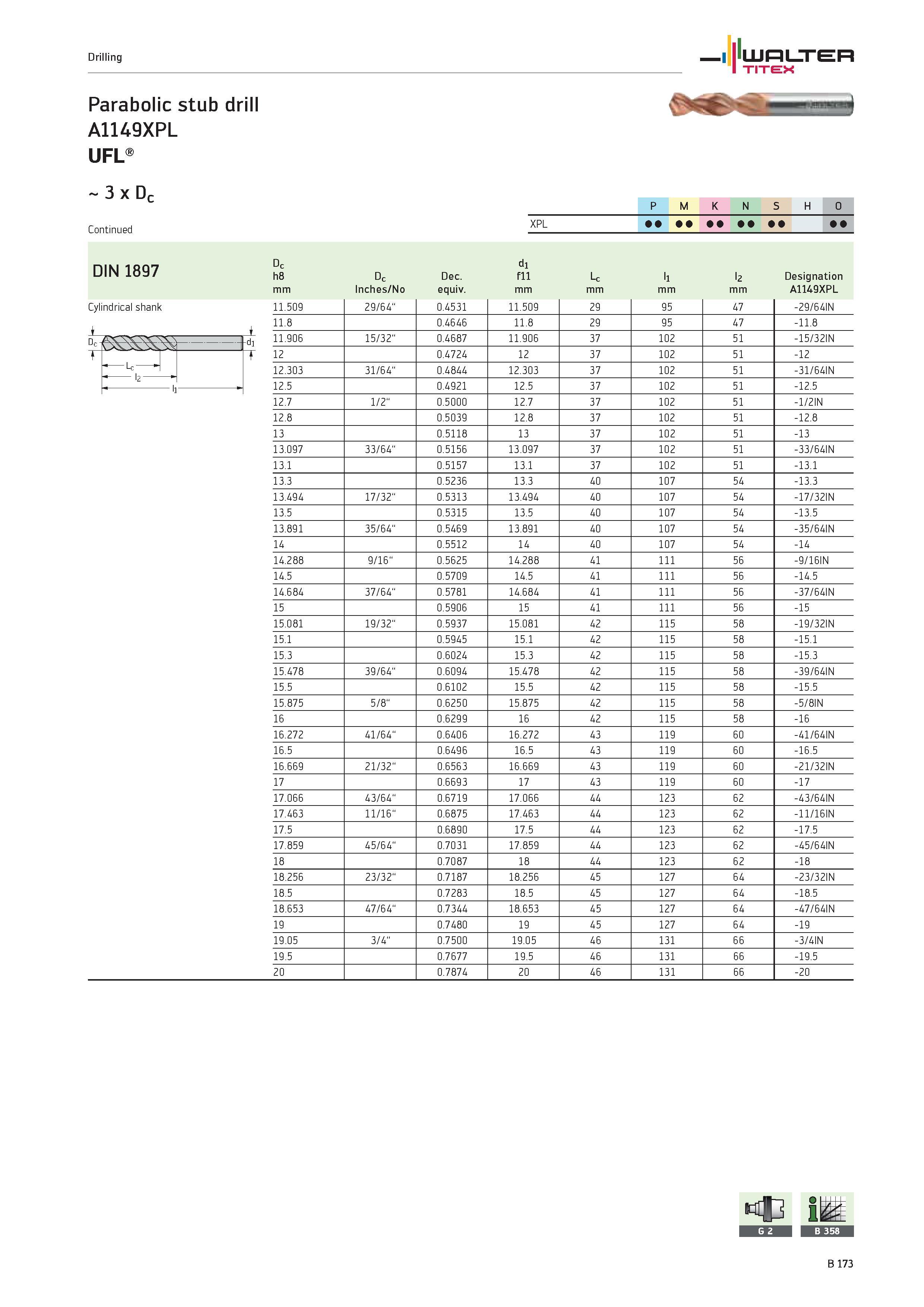

Drilling WALTER TITEX Parabolic stub drill A1149XPL UFL 3 x Dc DIN 1897 Cylindrical shank P M K N S H O XPL Dc h8 Dc Dec. d1 f11 Lc l1 l2 Designation mm Inches/No equiv. mm A1149XPL 11.509 29/64" 0.4531 11.509 29 95 47 -29/64IN 11.8 0.4646 11.8 29 95 47 -11.8 11.906 15/32" 0.4687 11.906 37 102 51 -15/32IN 12 0.4724 12 37 102 51 -12 12.303 31/64" 0.4844 12.303 37 102 51 -31/64IN 12.5 0.4921 12.5 37 102 51 -12.5 12.7 1/2" 0.5000 12.7 37 102 51 -1/2IN 12.8 0.5039 12.8 37 102 51 -12.8 13 0.5118 13 37 102 51 -13 13.097 33/64" 0.5156 13.097 37 102 51 -33/64IN 13.1 0.5157 13.1 37 102 51 -13.1 13.3 0.5236 13.3 40 107 54 -13.3 13.494 17/32" 0.5313 13.494 40 107 54 -17/32IN 13.5 0.5315 13.5 40 107 54 -13.5 13.891 35/64" 0.5469 13.891 40 107 54 -35/64IN 14 0.5512 14 40 107 54 -14 14.288 9/16" 0.5625 14.288 41 111 56 -9/16IN 14.5 0.5709 14.5 41 111 56 -14.5 14.684 37/64" 0.5781 14.684 41 111 56 -37/64IN 15 0.5906 15 41 111 56 -15 15.081 19/32" 0.5937 15.081 42 115 58 -19/32IN 15.1 0.5945 15.1 42 115 58 -15.1 15.3 0.6024 15.3 42 115 58 -15.3 15.478 39/64" 0.6094 15.478 42 115 58 -39/64IN 15.5 0.6102 15.5 42 115 58 -15.5 15.875 5/8" 0.6250 15.875 42 115 58 -5/8IN 16 0.6299 16 42 115 58 -16 16.272 41/64" 0.6406 16.272 43 119 60 -41/64IN 16.5 0.6496 16.5 43 119 60 -16.5 16.669 21/32" 0.6563 16.669 43 119 60 -21/32IN 17 0.6693 17 43 119 60 -17 17.066 43/64" 0.6719 17.066 44 123 62 -43/64IN 17.463 11/16" 0.6875 17.463 44 123 62 -11/16IN 17.5 0.6890 17.5 44 123 62 -17.5 17.859 45/64" 0.7031 17.859 44 123 62 -45/64IN 18 0.7087 18 44 123 62 -18 18.256 23/32" 0.7187 18.256 45 127 64 -23/32IN 18.5 0.7283 18.5 45 127 64 -18.5 18.653 47/64" 0.7344 18.653 45 127 64 -47/64IN 19 0.7480 19 45 127 64 -19 19.05 3/4" 0.7500 19.05 46 131 66 -3/4IN 19.5 0.7677 19.5 46 131 66 -19.5 20 0.7874 20 46 131 66 -20 B 173
