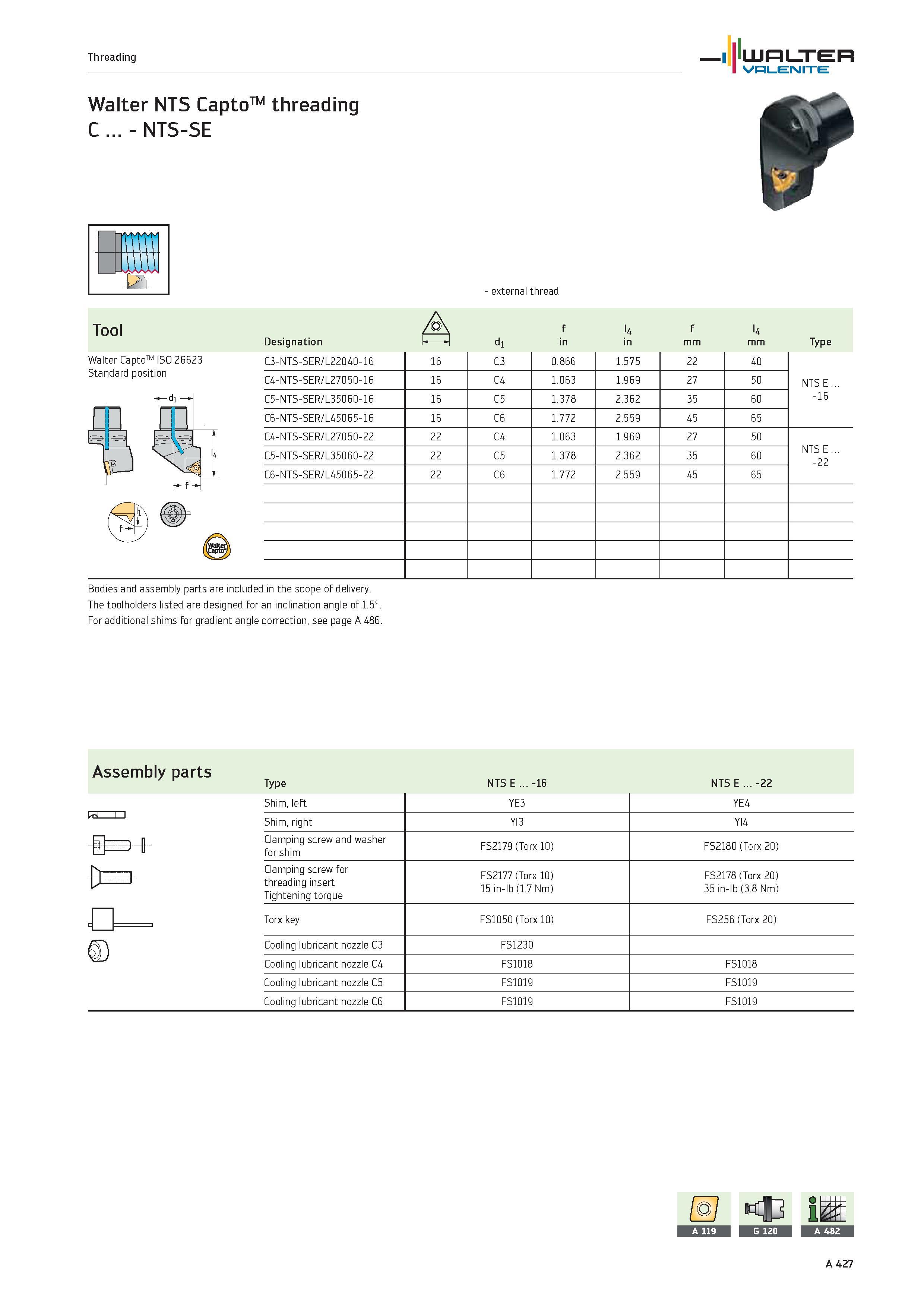

Threading WALTER Valenite Walter NTS CaptoTM threading C NTS-SE J2l Walter CaptoTM ISO 26623 Standard position external thread Tool A f l4 f l4 Designation dl in mm Type C3-NTS-SER/L22040-16 16 C3 0.866 1.575 22 40 NTS E -16 C4-NTS-SER/L27050-16 16 C4 1.063 1.969 27 50 C5-NTS-SER/L35060-16 16 C5 1.378 2.362 35 60 C6-NTS-SER/L45065-16 16 C6 1.772 2.559 45 65 C4-NTS-SER/L27050-22 22 C4 1.063 1.969 27 50 NTS E -22 C5-NTS-SER/L35060-22 22 C5 1.378 2.362 35 60 C6-NTS-SER/L45065-22 22 C6 1.772 2.559 45 65 Bodies and assembly parts are included in the scope of delivery. The toolholders listed are designed for an inclination angle of 1.5°. For additional shims for gradient angle correction, see page A 486. Assembly parts Type NTS E -l6 NTS E -22 Shim, left YE3 YE4 3+ Shim, right YI3 YI4 Clamping screw and washer for shim FS2179 (Torx 10) FS2180 (Torx 20) Clamping screw for threading insert Tightening torque FS2177 (Torx 10) 15 in-lb (1.7 Nm) FS2178 (Torx 20) 35 in-lb (3.8 Nm) q Torx key FS1050 (Torx 10) FS256 (Torx 20) T\ Cooling lubricant nozzle C3 FS1230 Cooling lubricant nozzle C4 FS1018 FS1018 Cooling lubricant nozzle C5 FS1019 FS1019 Cooling lubricant nozzle C6 FS1019 FS1019 A 427
